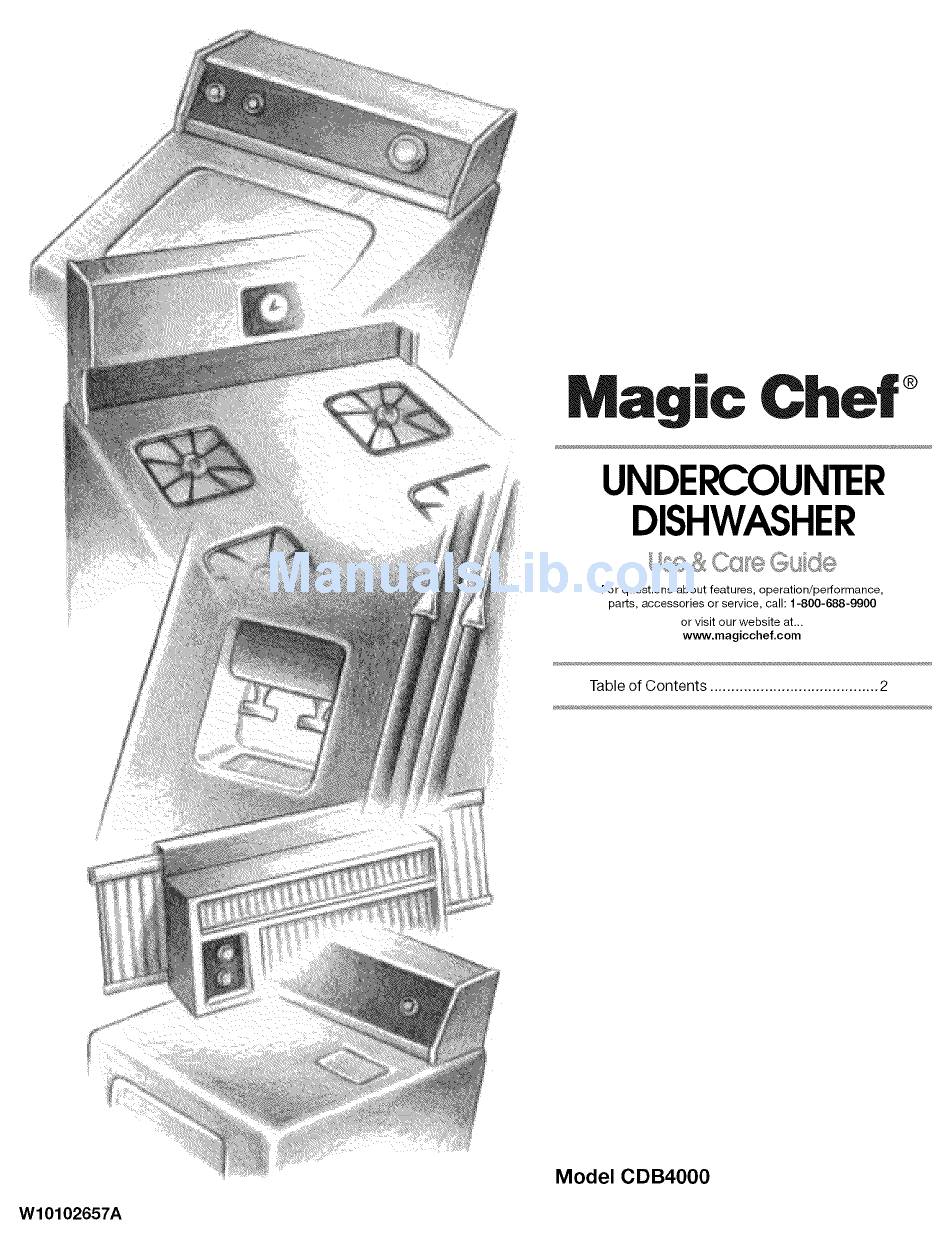

W10102657A
Magic Chef ®
UNDERCOUNTER
DISHWASHER
For questions
about features,
operation/performance,
parts, accessories
or service, call: 1-800-688-9900
or visit our website at...
www.magicchef.com
Table of Contents ........................................
2
Model CDB4000

   Also See for Magic Chef CDB4000

   Summary of Contents for Magic Chef CDB4000

  • Page 1

    Magic Chef ® UNDERCOUNTER DISHWASHER For questions about features, operation/performance, parts, accessories or service, call: 1-800-688-9900 or visit our website at... www.magicchef.com Table of Contents ........Model CDB4000 W10102657A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DISHWASHER SAFETY ..............Canceling a Cycle ............... Before Using Your Dishwasher ............ Changing a Cycle or Setting ............PARTS AND FEATURES ..............Adding Items During a Cycle ............. Option Selections ............... START-UP GUIDE ................Drying System ................Using Your New Dishwasher ............

  • Page 3: Dishwasher Safety

    DISHWASHER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER"...

  • Page 4

    GROUNDING INSTRUCTIONS For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher equipped with a cord having an equipment-grounding Tip Over Hazard conductor...

  • Page 5: Parts And Features

    PARTS AND FEATURES A. Top rack E. Heating element J. Spray ann F. Vent B. Water inlet opening (in tub wall) K. Overfill protection float C. Bottom rack G. Spray tower and protector L. Detergent dispensers H. Model and serial number label D.

  • Page 6: Before Using Your Dishwasher, Start-up Guide, Dishwasher Loading

    START-UP GUIDE Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips. 5. Select the desired cycle. (See "Dishwasher Use.") Scrape large food soil and hard items (toothpicks or bones) from dishes.

  • Page 7

    ..,;*,_,:_(_ _._,.4_S _S__'_ The top rack is designed for cups, glasses, and smaller items. The bottom rack is designed for plates, pans, casseroles, and utensils. Items with cooked-on or dried-on food should be loaded (See recommended loading patterns shown.) with soiled surfaces facing inward to the spray.

  • Page 8: Dishwasher Use, Detergent Dispenser

    DISHWASHER USE Load thesilverware basket while itisinthebottom rack ortake thebasket outforloading o nacounter ortable. IMPORTANT: Always l oad items (knives, skewers, etc.) p ointing down. The detergent dispenser has 2 sections. The Pre-Wash section empties detergent into the dishwasher when you close the door. A.

  • Page 9: Rinse Aid Dispenser

    Where to fill Checking the dispenser Check the center of the fill indicator cap. Clear means it needs Top of 3rd step (9 tsp or 45 mL) filling. Top of 2nd step (6 tsp or 30 mL) Or you can remove the fill indicator cap. If an "E" is visible, the dispenser is empty.

  • Page 10

    Hotwater d issolves andactivates thedishwashing detergent. Hot w ater a lso dissolves grease o ndishes a ndhelps glasses dry Additional efficiency tips spot-free. For b est d ishwashing results, water s hould b e120°F (49°C) asitenters t hedishwasher. Loads m ay notwash aswell i f •...

  • Page 11: Overfill Protection Float

    Rinse & Hold Use this cycle for rinsing dishes, glasses, and silverware that will not be washed right away. You can change an option anytime before the selected option begins. For example, you can press an unheated drying option anytime before drying begins. Do not use detergent with this cycle.

  • Page 12: Washing Special Items

    WASHING SPECIALITEMS If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. Material Dishwasher Safe?/Comments Material Dishwasher Safe?/Comments Aluminum Pewter, Brass, High water temperature and detergents Bronze High water temperatures and detergent can affect finish of anodized aluminum, can discolor or pit the finish.

  • Page 13: Dishwasher Care, Cleaning, Drain Air Gap, Storing

    DISHWASHER CARE 4. Replace the bottom rack with the rack bumpers facing the door. NOTE: Do not clean the dishwasher interior until it has cooled. Cleaning the exterior In most cases, regular use of a soft, damp cloth or sponge and a Check the drain air gap anytime your dishwasher isn't draining mild detergent is all that is necessary to keep the outside of your...

  • Page 14: Dishwasher Efficiency Tips, Cycle Selection Charts, Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here and possibly avoid the cost of a service call... Did you use the correct amount of fresh detergent? Dishwasher is not operating properly recommended dishwasher detergents only. Refer to the "Detergent Dispenser" section. Do not use less than 1 tb •...

  • Page 15: Assistance Or Service

    Silica film or etching (silica film is a milky, rainbow- colored deposit; etching is a cloudy film) Dishes do not dry completely Sometimes there is a water/chemical reaction with certain • Dishes are not dry types of glassware. This is usually caused by some combination of soft or softened water, alkaline washing Did you load your dishwasher to allow proper water...

  • Page 16: War Ranty

    MAJOR APPLIANCE WARRANTY ONE YEAR LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Maytag Corporation or Maytag Limited (hereafter "Maytag") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship.
