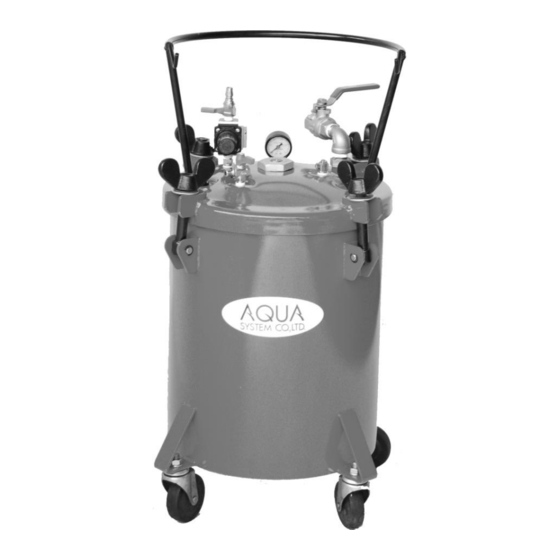

Air Pressure Pump
Internal pail can/rectangular can type
INSTRUCTION
MANUAL
■APP-C Series
Contents
1・・・・・・・・・・・Safety precautions
2・3・4・・・・・・・・Before using the device
5・・・・・・・・・・・Parts description
6・・・・・・・・・・・Usage instruction
7・・・・・・・・・・・
8・・・・・・・・・・・Warranty and service
Replacing the suction pipe
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aqua APP-C Series
Summary of Contents for Aqua APP-C Series
- Page 1 Air Pressure Pump Internal pail can/rectangular can type INSTRUCTION MANUAL ■APP-C Series Contents 1・・・・・・・・・・・Safety precautions 2・3・4・・・・・・・・Before using the device 5・・・・・・・・・・・Parts description 6・・・・・・・・・・・Usage instruction 7・・・・・・・・・・・ Replacing the suction pipe 8・・・・・・・・・・・Warranty and service...
- Page 2 SAFETY PRECAUTIONS This manual contains safety-related information. Please follow it strictly. ・ Before using the device, carefully read the manual (misusing the device may result in accidents). Keep the manual in a safe place and refer to it when necessary. ・...
- Page 3 BEFORE USING THE DEVICE ★ Read and strictly follow instructions on liquid’s use. Refer to information on liquid you wish to transfer. Read it carefully and use the liquid properly. ★ In case of direct contact with liquid, act immediately. In case of liquid ingestion, skin contamination etc., immediately proceed with liquid’s safety procedures and seek medical attention.
- Page 4 ★ Use the device in a safe place. Keep the pump away from children. ★ Seek medical attention when necessary. If you suddenly feel worse when operating the pump, immediately discontinue the operation and seek medical attention. ★ Use protective equipment. Wear protective equipment according to liquid’s safety instructions.
- Page 5 ★ Request technical service whenever required. When the device stops operating or operates in a strange manner, immediately turn it off and contact technical service. Do not use broken equipment, as it may result in accidents. ★ Do not cause shock to device’s main body. It may result in pump’s malfunction, breakdowns and leakage.
- Page 6 PARTS DESCRIPTION Safety Frame ⑥ Pressure Meter ① Air Valve ⑦ Safety Valve ② Wing Screw ⑧ Lid ③ Air Release Valve ⑨ Tank’s Main Body ④ Delivery Valve ⑰ Dedicated Spanner ⑤...
- Page 7 USAGE Take off the lid, pour the liquid into the can and make sure cans outlet is in the same position as lid’s outlet. Insert the suction pipe. Regulate its length if necessary. Cover the tank with a lid. Fix the lid using bolts. Tighten them equally. Set the delivery valve perpendicularly to the hose in order to close it.
- Page 8 CHANGING THE SUCTION PIPE ④ Air release valve ⑤ Delivery valve ⑩ Elbow ⑪ Nut A ⑫ Central Bolt ⑬ Closing Bolt ⑭ Nut B ⑮ Suction Pipe ⑯ Regulation Pipe 1. Detach the delivery valve ⑤ and elbow ⑩ from the suction pipe. 2.
- Page 9 WARRANTY AND SERVICE Thank you for purchasing our product! We look forward to provide you with help, advice and service, however, please remember that the warranty does not cover all possible cases, in which such service may be required. ① If the product has been used correctly, yet broke down, it will be repaired for free if the breakdown has been reported within 12 months from the date of purchase.
