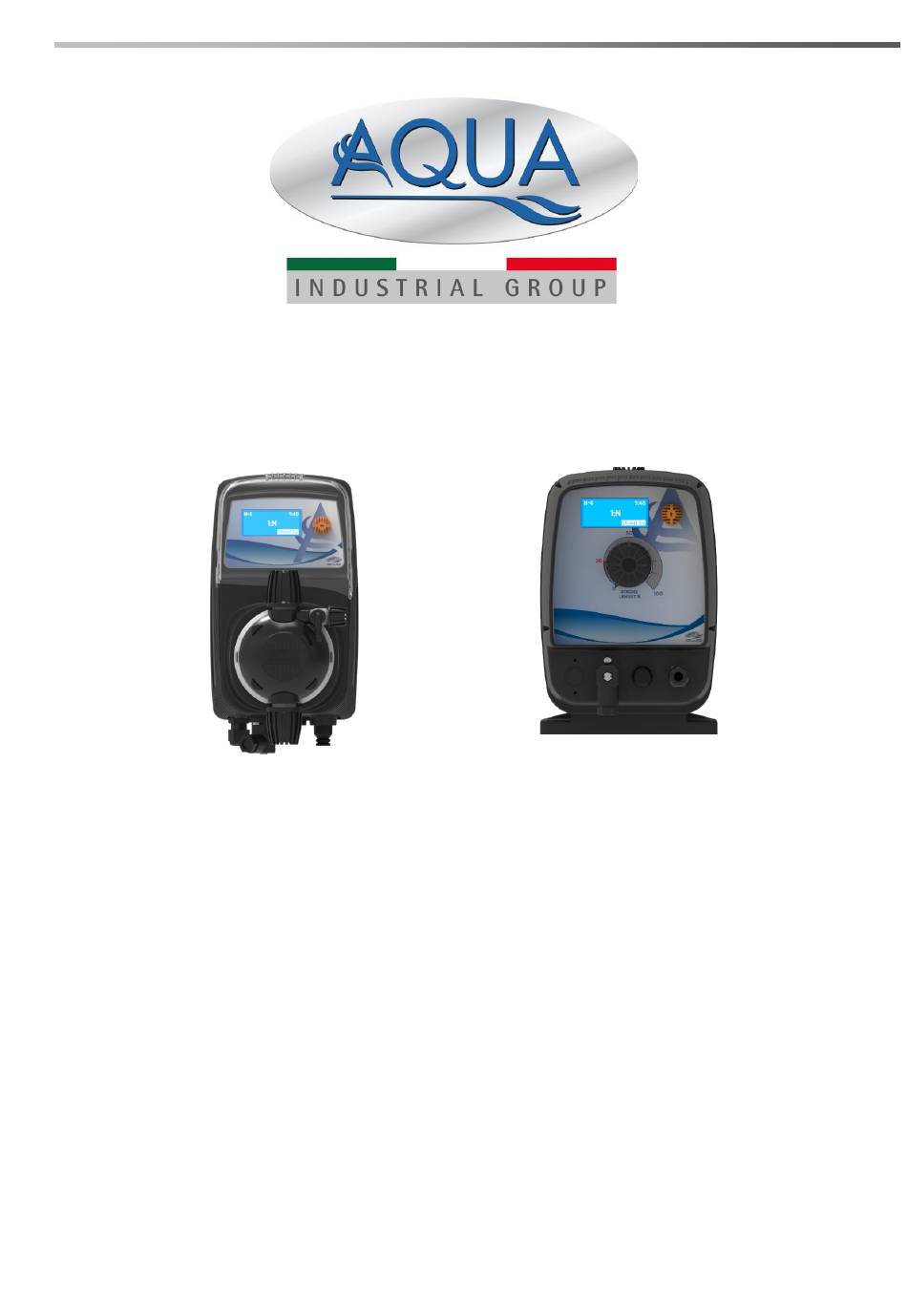

- Page 1 HC151+ MULTI / HC200+ MULTI ENGLISH USE AND MAINTENANCE INSTRUCTIONS MANUAL FOR DOSING PUMP HC151 MULTI HC200 MULTI...
- Page 2 HC151+ MULTI / HC200+ MULTI ENGLISH...
-
Page 3: Table Of Contents
HC151+ MULTI / HC200+ MULTI ENGLISH INDEX GENERAL RULES ............................. 4 INSTALLATION STANDARDS ......................4 OPERATION .............................. 5 OVERALL DIMENSIONS ........................5 TECHNICAL FEATURES ........................5 HYDRAULIC FEATURES ........................6 PERFORMANCE GRAPHS ........................ 7 CONTENT OF THE PACKAGE (Standard version) ................7... -
Page 4: General Rules
The servicing and maintenance of the dosing pump and all its accessories must always be carried out by qualified personnel. AQUA SpA cannot be held responsible for damage to persons or things caused by poor installation or incorrect use of the dosing pump. -
Page 5: Operation
HC151+ MULTI / HC200+ MULTI ENGLISH 2. OPERATION The HC151 + / HC200 + MULTI are digital electromagnetic dosing pumps that can operate at constant flow rate or proportional flow rate according to an external signal from a pulse emitting water meter or from a mA signal or operate via a Daily / Weekly timer. -
Page 6: Hydraulic Features
HC151+ MULTI / HC200+ MULTI ENGLISH HYDRAULIC FEATURES INJECTION ABSORBED FLOW RATE PRESSURE STROKES VALUE POWER SOLENOID TYPE ml/stroke Watt 0,17 0,83 0,33 0,51 0,93 0,40 0,89 0,56 0,97 0,54 1,30 0,44 1,11 0,54 1,08 (only HC151) 13,5 0,75 1,11 The above data refer to tests carried out with water at room temperature. -
Page 7: Performance Graphs
HC151+ MULTI / HC200+ MULTI ENGLISH PERFORMANCE GRAPHS CONTENT OF THE PACKAGE (Standard version) ▪ HC151 or HC200 pump ▪ User’s manual ▪ Injection valve PVDF-CE-VT ▪ Foot filter PVDF-PTFE-VT ▪ 2 meters PE discharge tube ▪ 2 meters PVC suction tube ▪... -
Page 8: Hc151 + Multi
/HC200 MULTI PUMP CONTROLS The control panel of the HC151+ MULTI and HC200+ MULTI dosing pumps consists of a graphic display (1) and an encoder knob (2) which allow you to navigate through the various menus and select / modify the pump configuration parameters, the figures below show what the control panel looks like: 1. -
Page 9: How To Navigate Through The Menus
HC151+ MULTI / HC200+ MULTI ENGLISH HOW TO NAVIGATE THROUGH THE MENUS The pump has been designed so the programming phases are user friendly, for this purpose the control area has a large backlit graphic display and a rotary encoder with an integrated button function. -
Page 10: First Pump Initialization
HC151+ MULTI / HC200+ MULTI ENGLISH FIRST PUMP INITIALIZATION The first time the pump is switched on, some basic parameters must be set, such as the language in which the programming menus will be displayed, the date and time of the system and other basic settings. -
Page 11: Getting Started
HC151+ MULTI / HC200+ MULTI ENGLISH GETTING STARTED 3.4.1 Priming Once the basic parameters of the pump have been set, it is suggested to carry out the priming: this operation is used to "prime" the metering pump (i.e. fill the chamber between the membrane and the pump body and remove any air bubbles present inside the suction and discharge tubes) and make it ready to dose the chemical in the plant. -
Page 12: Pump Calibration
HC151+ MULTI / HC200+ MULTI ENGLISH 3.4.2 Pump calibration Once the priming procedure is complete, the quantity of ml (milliliters) per stroke that the pump is able to supply must be defined, this information is necessary for a correct dosage of the chemical and essential if you want to use the PPM function described in the "PUMP SETUP"... -
Page 13: Pump Setup
HC151+ MULTI / HC200+ MULTI ENGLISH PUMP SETUP Within this menu, you can choose the operating mode that you want to use. The complete list of available functions is shown below: This mode allows the pump to work with 3.5.1 a constant frequency in relation to the strokes / minute or strokes / hour set. -
Page 14: Constant Mode
HC151+ MULTI / HC200+ MULTI ENGLISH 3.5.1 CONSTANT mode This mode allows the pump to dose at a constant frequency that can be set by the user; this function allows the pump to work without the need to connect it to an external signal. You can decide to set the frequency in strokes / minute or in strokes / hour. -
Page 15: Timer Mode
HC151+ MULTI / HC200+ MULTI ENGLISH 3.5.2 TIMER mode This mode allows the user to set a dosing time of the chemical product by programming an integrated daily / weekly timer; up to 8 independent programs can be set for each day of the week. -
Page 16: 1:N Mode
HC151+ MULTI / HC200+ MULTI ENGLISH 3.5.3 1:N mode This mode allows the user to connect the pump to a pulse emitting water meter. The pulses coming from the water meter are divided by the set value. This mode is used when it is mounted a water meter which delivers many pulses to the pump and it is necessary to divide them to have a correct dosage. -
Page 17: Ppm Mode
HC151+ MULTI / HC200+ MULTI ENGLISH 3.5.5 PPM mode This mode allows the user to connect the pump to a pulse emitting water meter. The pulses coming from the water meter determine the dosage according to the ppm in the plant, the chemical concentration and the set ml / stroke. -
Page 18: Ma Mode
HC151+ MULTI / HC200+ MULTI ENGLISH 3.5.6 mA mode This mode allows the user to connect the pump to an external mA signal. The current supplied to the pump (via the input signal) determines the dosage proportional to the minimum (4mA) and maximum values set. -
Page 19: How To Choose The Pump Model
HC151+ MULTI / HC200+ MULTI ENGLISH HOW TO CHOOSE THE PUMP MODEL As the number of m of water to be treated in the system is known, and the quantity of product to be dosed, expressed in P.P.M. (parts per million) it is possible to define the minimum hourly capacity of the dosing pump required, using the following formula: ������... - Page 20 HC151+ MULTI / HC200+ MULTI ENGLISH Example:...
-
Page 21: General > Energy Saving
HC151+ MULTI / HC200+ MULTI ENGLISH 3.9.2 General > Energy saving It is possible to change the brightness of the display during its normal operation, this to limit current absorption and to protect the display from overheating and therefore increase its life. The brightness can be changed from 100% (maximum brightness) to 10% (minimum brightness);... -
Page 22: Security > Level Input Polarity
This ensures better continuity of dosage. ATTENTION: this function must be activated only if you are using the suction lance with safety margin like the LAFL of AQUA SPA (see photo below). It is possible to set a delay in minutes... -
Page 23: Security > Factory Settings Restore
HC151+ MULTI / HC200+ MULTI ENGLISH 3.9.5 Security > Factory Settings restore It is possible to reset the pump to factory settings using this function. ATTENTION: this will delete all the data previously set and all the statistics with the exception of the counter of the total strokes (see paragraph 3.10). -
Page 24: Statistics
HC151+ MULTI / HC200+ MULTI ENGLISH 3.10 STATISTICS During normal pump operation, the electronic board stores some datas during its operation; these data can be viewed within the "STATISTICS" menu. In this menu you can find the number of total strokes and the volume delivered (in liters). -
Page 25: Dosing Pumps Installation Rules
HC151+ MULTI / HC200+ MULTI ENGLISH 4. DOSING PUMPS INSTALLATION RULES Strictly follow the instructions for a correct installation of the dosing pump to avoid malfunctions. The most frequent cases are described below: • Locate the pump as shown in Figure 1, bearing in mind that it can be mounted either below or above the level of the chemical to be dosed within the maximum limit of 2 meters (we suggest 1.5 meters). -
Page 26: Electrical Connections
HC151+ MULTI / HC200+ MULTI ENGLISH 5. ELECTRICAL CONNECTIONS HC151+ PImA model pump The connector on the bottom of the pump allows the connection of an external signal coming from a pulse emitting water meter or a mA signal. Obviously, if a pulse emitting water meter is connected, a mA signal cannot be connected and vice versa. -
Page 27: Troubleshooting
BEFORE packing it in its original box! 8. WARRANTY The product is covered by the manufacturer's warranty for manufacturing defects. The methods and conditions are set forth in the "General Conditions of Sale" document of AQUA SpA. -
Page 28: Exploded Views
HC151+ MULTI / HC200+ MULTI ENGLISH EXPLODED VIEWS HC151+ EXPLODED VIEW... - Page 29 HC151+ MULTI/PH-RX-CL POLICARBONATE ADHESIVE LABEL COVER NERO CORPO POMPA 1-14LT HC897 ADSP9000022 1-14LT PUMP HEAD BLACK COVER TARGHETTA NERA CON LOGO AQUA PER CORPO POMPA 1-14LT ADSP9000003 1-14LT PUMP HEAD BLACK PLATE WITH LOGO AQUA COPERCHIO POSTERIORE HC151 DGT PP NERO CON GUARNIZ.
- Page 30 HC151+ MULTI / HC200+ MULTI HC200+ EXPLODED VIEW ADSP9500073 13/03/2020 Rev. 1.0 30/36...
- Page 31 HC200+ REAR CASING BLACK COLOR COVER NERO CORPO POMPA 1-14LT HC897 ADSP9000022 1-14LT PUMP HEAD BLACK COVER TARGHETTA NERA CON LOGO AQUA PER CORPO POMPA 1-14LT ADSP9000003 1-14LT PUMP HEAD BLACK PLATE WITH LOGO AQUA PERNO REGOLAZIONE CORSA LAVORATO ADSP6000759 STROKE LENGTH SHAFT MAGNETE COMPLETO D60 VERS.2 230V SILENZIOSO...
- Page 32 HC151+ MULTI / HC200+ MULTI PUMP HEAD EXPLODED VIEW ADSP9500073 13/03/2020 Rev. 1.0 32/36...
- Page 33 HC151+ MULTI / HC200+ MULTI N° Codice Descrizione Quantità Code Description Quantities CORPO POMPA 1-14 PVDF BIANCO HC897 ADSP9000001P 1-14 PVDF WHITE PUMP HEAD RONDELLA PIANA D. 5 – UNI 6592 INOX A2 ADSP6000701 D.5 WASHER – UNI 6592 SS A2...
- Page 34 HC151+ MULTI / HC200+ MULTI AUTO BLEED PUMP HEAD EXPLODED VIEW ADSP9500073 13/03/2020 Rev. 1.0 34/36...
- Page 35 HC151+ MULTI / HC200+ MULTI N° Codice Descrizione Quantità Code Description Quantities CORPO POMPA 1-14 PVC SPURGO AUTOMATICO ADSP9000029 1-14 PVC AUTO BLEED PUMP HEAD RACCORDO CORPO POMPA PVDF 3/8” – 3/8” VALVOLA SFERA ADSP5005005P FRECCIA LATO CHIUSO 3/8” – 3/8” PVDF PUMP HEAD VALVE WITH ARROW OR –...
- Page 36 HC151+ MULTI / HC200+ MULTI USE AND MAINTENANCE INSTRUCTIONS MANUAL FOR DOSING PUMP HC151 MULTI / HC200 MULTI ADSP9500073 13/03/2020 Rev. 1.0 36/36...
