PUMPS SERIES
HC150 / HC101
ADSP9500090
Rev. 3.1 del 05/10/2020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC150 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua HC150 Series

Summary of Contents for Aqua HC150 Series

  • Page 1 PUMPS SERIES HC150 / HC101 ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 2 HC150 / HC101 INTRODUCTION Analog solenoid driven dosing pump ENGLISH ADSP9500090 Rev. 3.1 del 05/10/2020...

  • Page 3: Table Of Contents

    HC150 / HC101 INTRODUCTION Analog solenoid driven dosing pump ENGLISH CONTENTS 1 INTRODUCTION ........................4 1.1 Warnings ................................4 1.2 Models ................................5 1.3 Available flows ..............................5 1.4 Standards of reference ............................6 1.5 Technical features .............................. 6 2.0 INSTALLATION AND TECHNICAL FEATURES ..............7 2.1 General regulations ............................

  • Page 4: Introduction

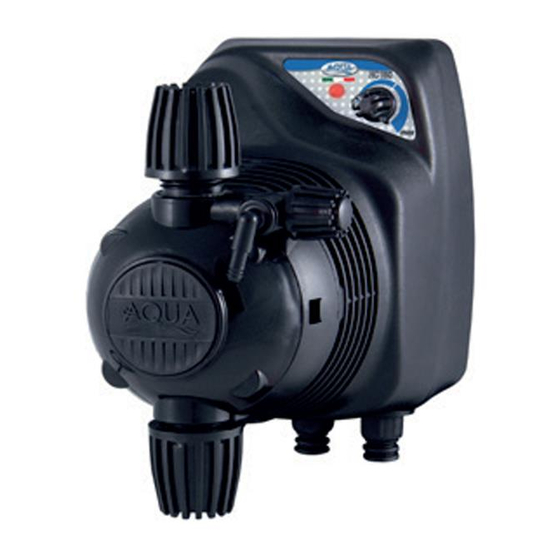

    Analog solenoid driven dosing pump ENGLISH 1 INTRODUCTION Thank you for having purchased an Aqua product. The HC150 / HC101 series solenoid driven dosing pumps represent the ideal solution for dosing small amounts of chemical products. The pumps are regulated through analogue controls, including a two-colour LED and a regulating knob.

  • Page 5: Models

    HC150 / HC101 INTRODUCTION Analog solenoid driven dosing pump ENGLISH There are 2 protection devices inside the pump: a varistor and a fuse.  If it is necessary to remove the pump from the system, it is essential that the rubber discs are put back in so as to avoid liquid leaking out from the pump head.

  • Page 6: Standards Of Reference

    HC150 / HC101 INTRODUCTION Analog solenoid driven dosing pump ENGLISH Flow Pressure Frequency (max) Flow Description cc per dose 0,28 HC101 Mod. 1 0,69 0,97 0,78 HC101 Mod. 2 0,89 1,11 0,33 HC101 Mod. 3 0,44 0,55 0,93 HC101 Mod. 4 1,11 1,30 0,44...

  • Page 7: Installation And Technical Features

    HC150 / HC101 INSTALLATION Solenoid driven dosing pump ENGLISH 2.0 INSTALLATION AND TECHNICAL FEATURES 2.1 General regulations Pump installation must be carried out as follows:  On a horizontal support (ex.: storage tank) or on the wall-mount bracket (optional) as long as the pumps remains in a vertical position +/- 15°.

  • Page 8: Pulse Emission Counter - Only For Model Pi

    HC150 / HC101 INSTALLATION Solenoid driven dosing pump ENGLISH 2.3.3 Pulse Emission Counter – only for model PI HC150: Connect the red- BNC connector to the corresponding connector located at the bottom of the pump. HC150 PI Pulse water meter HC101: The pulse input is suitable for: ...

  • Page 9: Hydraulic Connection

    Overall dimensions  HC150 series pump – wall-mounted (fig. 1)  HC150 series pump – with base (fig. 2)  HC101 series pump – with base (fig. 2a) Connections and exploded views ...

  • Page 10: Programming The Pumps

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 3 PROGRAMMING THE PUMPS 3.1 HC150 / HC101 costant Programming the HC150 / HC101 costant pump or in constant mode is based on the setting, using the knob, regulating the number of pulses per minute that the pump must carry out. It is possible to regulate the number of pulses per minute, and therefore the flow of the pump, using two regulating scales: ...

  • Page 11: Hc150 / Hc101 Ma

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 3.2 HC150 / HC101 mA The pump can operate in constant mode or in proportional current mode (mA). In constant mode it operates like model HC150 costant, whereas in proportional mode mA, the number of impulses is proportional to the current signal connected to the BNC - red connector.

  • Page 12: Scale Change Procedure

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 3.2.2 Scale change procedure The following procedure allows you to switch from one scale to the other.  To perform this operation it is advisable to use a medium flat-tip screwdriver. ...

  • Page 13: Hc150 / Hc101 Pi

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 3.3 HC150 / HC101 PI The pump can operate in constant mode as well as proportional mode to pulses sent from a counter. In constant mode it operates like model HC150 / HC101 costant whereas in proportional pulse mode the pump provides an injection for each “N”...

  • Page 14: Meaning Of Two-Colour Led

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 2 flashes => 101…200 3 flashes => 201…300 1 flash => 1...100 until you reach: 10 flashes => 901…1000 and then to 1 flash green => 1…10 (1xN) 3.3.2 Meaning of two-colour LED The colour of the LED immediately indicates the type of proportional pump operation, in fact: ...

  • Page 15: How To Choose The Pump

    HC150 / HC101 PROGRAMMING THE PUMPS Solenoid driven dosing pump ENGLISH 3.3.4 How to choose the pump As the number of m of water to be treated in the system is known, and the quantity of product to be dosed, expressed in P.P.M.

  • Page 16: Maintenance

    HC150 / HC101 MAINTENANCE Solenoid driven dosing pump ENGLISH 4 MAINTENANCE 4.1 General regulations  Periodic maintenance is of fundamental importance to keep the pump in good running order and make it last over time.  The tips provided below must be followed systematically and to the letter. It is extremely difficult to define the standard times required for maintenance beforehand, as the factors that determine the wear of the pump, and in particular the parts that are in contact with the liquid, are numerous.

  • Page 17: Troubleshooting

    HC150 / HC101 MAINTENANCE Solenoid driven dosing pump ENGLISH 6. Re-insert the cartridge into the pump head. Changing sealing O-rings and the diaphragm Proceed as follows: 1. Remove the small round cover from the pump head using a small utensil to lever it off. 2.

  • Page 18: Chemical Compatibility Table

    HC150 / HC101 WARRANTY Solenoid driven dosing pump ENGLISH 5 Chemical Compatibility Table Dosing pumps are widely used for dosing chemical products. It is important to select the most suitable material for the liquid to be dosed. The CHEMICAL COMPATIBILITY TABLE is a precious aid to that end. The following Table must be used as an indicative instrument.

  • Page 19: Return To The After-Sales Service

    HC150 / HC101 WARRANTY Solenoid driven dosing pump ENGLISH Disclaimer The information included in these tables has been obtained from highly qualified sources which we deem reliable and they are provided without any guarantee, explicit or implicit, concerning their exactness. Conditions or methods for handling, storage and use of the material are beyond our control and/or knowledge.

  • Page 20: Dimensioni - Dimensions

    8 Dimensioni – Dimensions “HC150” – W . 1: S ERIE A MURO ALL MOUNTING “HC150” – B . 2: S ERIE CON BASE ASE MOUNTING ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 21 ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 22 “HC101” – B . 2A: S ERIE CON BASE ASE MOUNTING ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 23 – P . 3: C OLLEGAMENTI TUBI SUL CORPO POMPA UMP HEAD CONNECTIONS – – L . 4: S . 5: C PURGO MANUALE MANUAL PURGE OLLEGAMENTO SONDA DI LIVELLO OW LEVEL PROBE - OPTIONAL CONNECTION ADSP9500090 Rev. 3.1 del 05/10/2020...

  • Page 24: Esploso / Exploded View

    9 Esploso / Exploded view Fig. 6: HC150 Esploso / Exploded view ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 25 VITE M 2.9x13 UNI 6954 (TCTC) INOX A2 ADSP9500130 ANELLO IDENTIFICAZIONE INGRESSI BNC ADSP9000002 COVER GIALLO RAL 1007 CORPO POMPA 1-14LT HC897 ADSP9000003 TARGHETTA NERA CON LOGO AQUA PER CORPO POMPA 1-14LT HC897 ADSP6000749 VITE M 2.9X9.5 UNI 6954 (AF-TCTC) INOX A2 ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 26 ADSP9500130 BNC INPUTS IDENTIFICATION RING ADSP9000002 COVER YELLOW RAL 1007 PUMP HEAD 1-14LT HC897 ADSP9000003 BLACK PLATE WITH AQUA LOGO FOR PUMP HEAD 1-14LT HC897 M 2.9X9.5 UNI 6954 (AF-SLOTTED PAN HEAD SCREW) STAINLESS STEEL A2 ADSP6000749 SCREWS ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 27 Fig. 6A: HC101 Esploso / Exploded view ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 28 CORPO POMPA 1-14 PP-GL-VT COMPLETO HC897/797 31 ADSP9000002 COVER GIALLO RAL 1007 CORPO POMPA 1-14LT HC897 32 ADSP9000003 TARGHETTA NERA CON LOGO AQUA PER CORPO POMPA 1-14LT HC897 ADSP6000835 CONNETTORE MASCHIO 4 VIE G4A5M CABLATO SERVIZI 1XPANDUIT 2 VIE ADSP9500090...
  • Page 29 PUMP HEAD 1-14 PP-GL-VT COMPLETE HC897/797 31 ADSP9000002 COVER YELLOW RAL 1007 PUMP HEAD 1-14LT HC897 32 ADSP9000003 BACKPLATE WITH AQUA LOGO FOR PUMP HEAD 1-14LT HC897 ADSP6000835 MALE CONNECTOR 4-WAY G4A5M CABLED SERVIZI 1XPANDUIT 2-WAY ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 30 Fig. 7: Corpo pompa e valvole a sfera – Pump head and ball valves ADSP9500090 Rev. 3.1 del 05/10/2020...
  • Page 31 Descrizione / Description Codice Descrizione Q.tà ADSP9000001P CORPO POMPA 1-14 PVDF HC897 ADSP9000001 CORPO POMPA 1-14 PP HC897 ADSP5007200 OR - RIF. 3143 - VITON NERO ADSP5007209 OR - RIF. 3143 - DUTRAL NERO ADSP5007049V OR - RIF. 2010 - VITON NERO ADSP5007055D OR - RIF.
  • Page 32 Descrizione / Description Code Description Q.ty ADSP9000001P PUMP HEAD 1-14 PVDF HC897 ADSP9000001 PUMP HEAD 1-14 PP HC897 ADSP5007200 OR - REF. 3143 - VITON BLACK ADSP5007209 OR - REF. 3143 - DUTRAL BLACK ADSP5007049V OR - RIF. 2010 - VITON BLACK ADSP5007055D OR - RIF.
  • Page 33 Note on environmental protection After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by lak to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose.
  • Page 34 PUMPS SERIES HC150 ADSP9500090 Rev. 3.1 del 05/10/2020...
