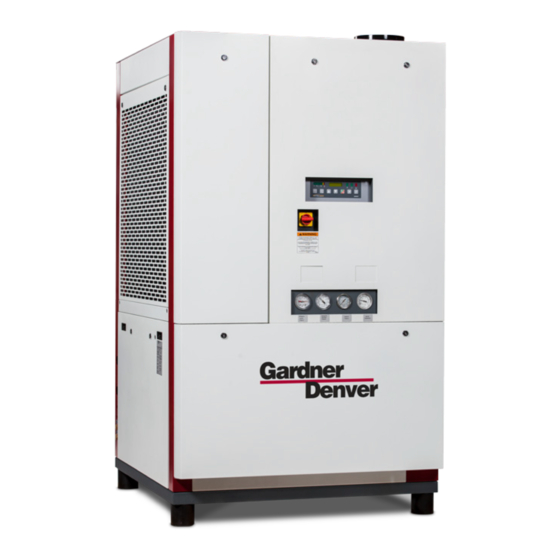

5001325 Rev. I 02/17 18-2-675 8th Edition INSTRUCTION MANUAL RNC SERIES Models: RNC1000, RNC1250, RNC1500, RNC1750, RNC2000, RNC2500, RNC3000 REFRIGERATED TYPE COMPRESSED AIR DRYERS For Sales and Service: (800) 883-2477 Or visit Sales and Service at www.gardnerdenverproducts.com...
GENERAL SAFETY INFORMATION RECEIVING, MOVING, AND UNPACKING PRESSURIZED DEVICES A. RECEIVING This equipment is a pressure containing This shipment has been thoroughly checked, packed and device. inspected before leaving our plant. It was received in good condition by the carrier and was so acknowledged. • Do not exceed maximum operating pressure as shown on equipment serial Check for Visible Loss or Damage.
IMPORTANT: READ PRIOR TO STARTING THIS EQUIPMENT 1.0 INSTALLATION 1.1 Location For typical placement in a compressed air system, see drawing. Air compressor intake – Locate air compressor so that Aftercooler contaminants potentially harmful to the dryer (e.g. ammonia) Dryer are not drawn into the air system.
1.2 Mounting D. Verify that isolation valves are open. If the drain fails to discharge after the valve is energized, the electronic control Mount the dryer on a level solid surface. Holes are provided in the circuit will repeatedly energize the valve in an attempt to clear dryer base to permanently mount the dryer to the floor.
2.0 OPERATION CONTROL PANEL 2.1 Minimum/Maximum Operating Conditions Maximum inlet air pressure: refer to dryer serial number tag Minimum inlet air pressure: 30 psig (2.1 barg) C. Maximum inlet air temperature: 120°F (49°C) D. Maximum ambient temperature: Air-cooled models: 110°F (43°C) Water-cooled models: 130°F (54°C) Minimum ambient temperature: 40°F (4°C) 2.2 Start-up...
Page 7
Setting Schedule cooled models: After starting dryer if an unusual noise is heard and the discharge line does not get hot, stop the dryer, reverse a. Use the ‘Up’ and ‘Down’ arrow buttons to select desired two power leads, restart, and verify discharge line gets hot. “Day of week + on/off ”.
If ALARM appears, a dryer fault is indicated; see When connected in two-wire mode, the bus wires may be Troubleshooting Guide for possible remedies. After connected to pins 1 & 2. Also note that when in two-wire mode, fault correction push Reset button to turn Fault alarm one termination resistor jumper should be removed to prevent the off.
Page 9
These values will be written every 10 seconds to a comma separated value file stored in the root folder of the USB flash drive. Each day a new comma separated value file will be created for storing the samples for that day. Comma separated value files older than 60 days will be automatically deleted. USB Bootloader Firmware updates for the dryer controller can be performed via the USB flash drive. In order to perform a firmware update; place the image.hex and lang.hex files provided by the manufacturer in the root folder of a USB thumb drive. USB Event History When a USB flash drive is installed in the controller it will begin to automatically log all dryer events: power loss, power recovery,...
2.5 Using the Ethernet Feature (J3) The event history page shows the last 64 timestamped events that have occurred on the dryer. These events include power failure/ The dryer controller is equipped with an Ethernet port located at recovery, dryer mode changes, dryer status changes, and alarms. J3 on the control board which allows the customer to connect the dryer to a local area network.
Page 11
The dryer settings screen allows the customer to view/edit various dryer set points and setup E-mail alerts that will send an e-mail to up to 3 different e-mail addresses whenever an alarm or warning occurs on the dryer. Figure 4: Settings Modbus TCP The Modbus TCP connection allows you to continuously monitor the dryer from a DCS system which implements a Modbus TCP...
Page 12
Modbus Registers Holding Register Reference Address Name Units Description 40001 0x0000 DRYER_STATUS Status ID Status ID for the dryer 40002 0x0001 ALARM_STATUS Flag Bits Alarm flag bits 40003 0x0002 WARNING_STATUS Flag Bits Warning flag bits 40004 0x0003 RESERVED Reserved 40005 0x0004 SERVICE_TIMER Hours...
Page 13
Modbus Register Details Page 1 of 3 Dryer Status Register 40001 Decimal Description 0x0000 Standby 0x0001 Fixed 0x0002 0x0003 Reserved 0x0004 Reserved 0x0005 Reserved 0x0006 Reserved 0x0007 Reserved Dryer Alarm Flags Register 40002 Mask Description 0x0001 High Discharge Temperature 0x0002 High Refrigerant Pressure 0x0004 Low Refrigerant Pressure...
3.0 MAINTENANCE 3.2 Annual Maintenance Check all terminals in the switchgear cabinet and tighten 3.1 Monthly Maintenance them up if necessary. A. Air-Cooled: Clean refrigerant condenser. Blow the fins of the Check to be sure the unit is de-energized. condenser clean with compressed air, if necessary, remove heavier soiling with a suitable cleansing agent. Maintenance/Cleaning of the condensate drain.
Page 17
f. Loosen the screws [2] of the filter housing. Caution is necessary as the system may still be under slight residual pressure. g. Remove all screws except one and swing flange [3] to the side. h. Pull out the old cartridges [4]. i. Push new cartridges on to the mounting posts in the bottom of the separator vessel. NOTE: Do not touch the foam sleeves of the cartridges with your fingers.
4.0 TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION A) Water downstream of dryer 1. Residual free moisture remaining in downstream 1. Blow out system with dry air. pipelines. 2. Air bypass system is open. 2. Check valve positions. 3. Inlet and Outlet connections are reversed. 3.
5.0 REFERENCE SIZING Determining dryer capacity at actual operating conditions. To determine the maximum inlet flow capacity of a dryer at vari- ous operating conditions, multiply the rated capacity from Table 1 by the multipliers shown in Table 2. Example: How many scfm can a 60 Hz air-cooled model 1000 handle when compressed air to be dried is at 200 psig and 100°F; ambient air temperature is 80°F? Answer: 1,000 x 1.22 x 1.12 = 1,366 scfm.
DRYER ALARM TABLE Alarm Conditions Alarm Text Alarm Trigger Delay Monitored Exit Condition Alarm Action DISCHARGE Discharge temperature > 1 Second Always Alarm reset button pressed Halt compressors HIGH TEMPERATURE high discharge temperature set point De-energize alarm relay #1 HIGH PRESSURE High pressure switch open 1 Second Always...
CONTROLLER SCREEN SHOTS DEMM32 - User Interface Diagram Status Menu Screens Status Menu VERSION x.x Power-up Delay mm/dd/yyyy hh:mm MANUAL MODE Up/Down HRS TO SERVICE 4970 Up/Down Total Hours Up/Down DISCHARGE xxx.x°C / xxx°F Up/Down EVAPORATOR IN xxx.x°C / xxx°F Up/Down Up/Down Hidden if evaporator...
CONTROLLER SCREEN SHOTS DEMM32 - User Interface Diagram Setup Menu Screens Setup Menu MAIN MENU LANGUAGE Enter LANGUAGE ENGLISH Down/Up MAIN MENU DATE & TIME Enter DATE & TIME 02/24/2011 09:40 Down/Up MAIN MENU SCHEDULE Enter SCHEDULE MON ON IGNORE Down/Up MAIN MENU 02/24/2011 09:55...
CONTROLLER SCREEN SHOTS DEMM32 - User Interface Diagram Network Menu Screens Network Menu Network Menu NETWORK MENU IP ADDRESS TYPE Enter IP ADDRESS TYPE DYNAMIC Up/Down NETWORK MENU IP ADDRESS Enter IP ADDRESS 192.168.0.2 Up/Down Up/Down NETWORK MENU SUBNET MASK Enter SUBNET MASK 255.255.255.0...
Page 38
8.0 REPLACEMENT PARTS: AIR-COOLED UNITS VIEW ORIENTATION REFERENCE RIGHT REAR, VIEW-A (covers and center support shelf removed for clarity) 23 24 RIGHT FRONT, VIEW-B (covers and center support shelf removed for clarity) LEFT REAR, VIEW-C (covers and center support shelf removed for clarity)
Items 4, 5, 6, 8, 12, 13, 14, 15, 17, 18, 19, 20, 28, 32, and 33 are located in the electrical enclosure located behind the control panel. Refer to the appropriate Electrical Schematic to identify part. NOTE: Consult factory with the dryer serial number when ordering Item 8, Control Board. Gardner Denver Inc. Phone: (800) 682-9868...
REPLACEMENT PARTS: WATER-COOLED UNITS 17 21 VIEW ORIENTATION REFERENCE RIGHT REAR, VIEW-A (covers and center support shelf removed for clarity) RIGHT FRONT, VIEW-B (covers and center support shelf removed for clarity) 17 21 LEFT REAR, VIEW-C (covers and center support shelf removed for clarity)
Page 41
Items 4, 5, 7, 10, 11, 12, 13, 15, 16, 18, 25, 30, and 31 are located in the electrical enclosure located behind the control panel. Refer to the appropriate Electrical Schematic to identify part. NOTE: Consult factory with the dryer serial number when ordering Item 7, Control Board. Gardner Denver Inc. Phone: (800) 682-9868...
