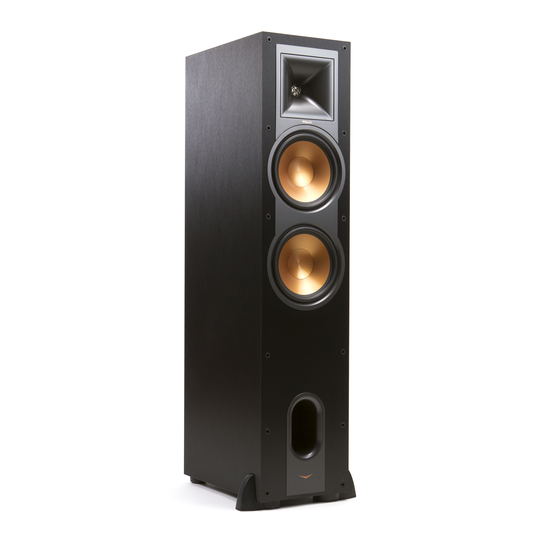

Klipsch R-28F Service Manual

Floorstanding speaker
Hide thumbs Also See for R-28F:

Advertisement

Quick Links

Download this manual
KLIPSCH AUDIO TECHNOLOGIES
Reference R-28F/R-26F/R-24F Floorstanding Speaker Service
Manual
Product Type: R-28F Floorstanding Speaker/R-
26F Floorstanding Speaker/R-24F
Floorstanding Speaker
Manual Part #: 1061500
Model Line: Reference
Product Launch Year: 2014
The information contained in this document is solely intended for service and repair of Klipsch Group, Inc product;
use of this information to mimic or copy KGI designs is strictly prohibited and subject to prosecution.
T able of Contents
SPECIFICATIONS......................................................................................................................... 2
R-28F S
PECIFICATIONS
R-26F S
PECIFICATIONS
R-24F S
PECIFICATIONS
EXPLODED VIEW AND WARRANTY PARTS LIST .............................................................. 5
R-28F E
XPLODED
R-26F E
XPLODED
R-24F E
XPLODED
TROUBLESHOOTING GUIDELINES ....................................................................................... 8
.................................................................................................................. 2
.................................................................................................................. 3
.................................................................................................................. 4
V
W
P
IEW AND
ARRANTY
ARTS
V
W
P
IEW AND
ARRANTY
ARTS
V
W
P
IEW AND
ARRANTY
ARTS
R-28F, R-26F, R-24F ............................................................................. 8
R-28F, R-26F, R-24F ............................................................................ 17
C
O
C
O
C
O
L
................................................................... 5
IST
L
................................................................... 6
IST
L
................................................................... 7
IST
N
S
U
M
E
R
N
S
U
M
E
R
N
S
U
M
E
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-28F and is the answer not in the manual?

Questions and answers

Related Manuals for Klipsch R-28F

Summary of Contents for Klipsch R-28F

  • Page 1: Table Of Contents

    Model Line: Reference Product Launch Year: 2014 The information contained in this document is solely intended for service and repair of Klipsch Group, Inc product; use of this information to mimic or copy KGI designs is strictly prohibited and subject to prosecution.

  • Page 2: Specifications

    Service Manual – Consumer Specifications Cut Sheet Data Model: R-28F...
  • Page 3 Service Manual – Consumer Specifications Cut Sheet Data Model: R-26F...
  • Page 4 Service Manual – Consumer Specifications Cut Sheet Data Model: R-24F...

  • Page 5: Exploded View And Warranty Parts List

    Parts Description 1061375 R-28F Horn With Tweeter 1061374 R-28F Woofer 1061373 R-28F Grill With Logo 1012881 R-28F/ KF-28 Network W/ Input Cup 1008865 Synergy Jumper- Right 1008866 Synergy Jumper- Left 1062276 Front Foot for Reference Base Floor Stander 1062253 Reference Base Disk Foot...
  • Page 6 Service Manual – Consumer Exploded View and Warranty Parts List R-26F Warranty Replacement Parts Part Number Parts Description 1061377 R-26F Horn With Tweeter 1061378 R-26F Woofer 1061376 R-26F Grill With Logo 1012864 R-26F/ KF-26 Network W/ Input Cup 1008865 Synergy Jumper- Right 1008866 Synergy Jumper- Left 1062276...
  • Page 7 Service Manual – Consumer Exploded View and Warranty Parts List R-24F Warranty Replacement Parts Part Number Parts Description 1061856 R-24F Horn With Tweeter 1060740 R-24F Woofer 1060732 R-24F Grill With Logo 1060741 R-24F Network W/ Input Cup 1008865 Synergy Jumper- Right 1008866 Synergy Jumper- Left 1062276...

  • Page 8: Troubleshooting Guidelines

    Service Manual – Consumer Tweeter Removal for R-28F, R-26F, and R-24F Tools needed: Small flat blade screwdriver 3mm hex (Allen) key First, with a small flat blade screwdriver, gently pry the up the trim ring around the tweeter, highlighted in red...
  • Page 9 Service Manual – Consumer Be sure to pry the trim ring up in between the tweeter horn and the trim ring as shown below. Prying between the trim ring and the cabinet may cause damage to the cabinet. Pry slowly around the edge of the tweeter horn to release all the clips.
  • Page 10 Service Manual – Consumer Once all the clips have been released, the trim ring should come free as shown below...
  • Page 11 Service Manual – Consumer Once the trim ring is removed the speaker should look as shown below. Next, begin removing the screws (highlighted below in red) from the perimeter of the tweeter horn. There will be six (6) total screws to remove, each using a 3mm hex key head...
  • Page 12 Service Manual – Consumer...
  • Page 13 Service Manual – Consumer Once all the screws have been removed, the tweeter and tweeter horn should come free as shown below.
  • Page 14 Service Manual – Consumer Once the tweeter is removed from the cabinet, slide back the silicone covers on the terminals, and use a small flat blade screw driver to release the wire clips holding to the positive and negative terminals of the tweeter.
  • Page 15 Service Manual – Consumer Once the tweeter is removed, the speaker will look as shown below.
  • Page 16 Service Manual – Consumer Next, plug the wires on to the new tweeter, and slide the silicone covers back over the terminals. Place the tweeter back into position, and replace the screws. Replace the trim ring by setting into position and gently pressing the trim ring around the edge, verifying the clips on the back are locking into place.

  • Page 17: Woofer Removal For R-28F, R-26F, R-24F

    Service Manual – Consumer Troubleshooting Guides Woofer Removal for R-28F and R-26F Tools needed: Small flat blade screwdriver 3mm hex (Allen) key First, with a small flat blade screwdriver, gently pry the up the trim ring around the woofers, highlighted in red...
  • Page 18 Service Manual – Consumer Be careful when removing trim ring around the edge of the cabinet, rough handling may cause damage to the cabinet Pry slowly around the edge of the trim ring to release all the clips.
  • Page 19 Service Manual – Consumer The trim ring comes off in a single assembly around both woofers as shown below.
  • Page 20 Service Manual – Consumer Once the trim ring is removed the speaker should look as shown below. Next, begin removing the screws (highlighted below in red) from the perimeter of the woofer. There will be six (6) total screws to remove, each using a 3mm hex key head...
  • Page 21 Service Manual – Consumer...
  • Page 22 Service Manual – Consumer Once all the screws have been removed, the tweeter and tweeter horn should come free as shown below.
  • Page 23 Service Manual – Consumer Once the tweeter is removed from the cabinet, slide back the silicone covers on the terminals, and use a small flat blade screw driver to release the wire clips holding to the positive and negative terminals of the tweeter.
  • Page 24 Service Manual – Consumer Next, plug the wires on to the new woofer, and slide the silicone covers back over the terminals. Place the woofer back into position, and replace the screws. Replace the trim ring by setting into position and gently pressing the trim ring around the edge, verifying the clips on the back are locking into place.
