- Page 1 USER’S GUIDE Version 1.0.0 ENGLISH...
-
Page 2: Table Of Contents
OTHER BLUETOOTH DEVICES 4.1 Phone Pairing 4.1.1 Initially Pairing the ACS-RAM 4.1.2 Pairing When the ACS-RAM is Turned Off 4.1.3 Pairing When the ACS-RAM is Turned On 4.2 Second Mobile Phone Pairing - Second Mobile Phone, GPS, and SR10 4.3 GPS Pairing... - Page 3 TABLE OF CONTENTS CONTINUED MOBILE PHONE USAGE 5.1 Making and Answering Calls STEREO MUSIC 6.1 Bluetooth Stereo Music BLUETOOTH INTERCOM 7.1 Intercom Pairing 7.1.1 Using the Smart Intercom Pairing (SIP) 7.1.2 Using the Button 7.2 Two-Way Intercom UNIVERSAL INTERCOM 8.1 Universal Intercom Pairing 8.2 Two-Way Universal Intercom FUNCTION PRIORITY AND FIRMWARE UPGRADES...
- Page 4 TABLE OF CONTENTS CONTINUED 10.2 Software Configuration Setting 10.2.1 Headset Language 10.2.2 Audio Equalizer (Default: Off) 10.2.3 VOX Phone (Default: Enable) 10.2.4 HD Intercom (Default: Enable) 10.2.5 HD Voice (Default: Enable) 10.2.6 Voice Prompts (Default: Enable) 10.2.7 Advanced Noise Control™ (Always On) 11.
-
Page 5: About The Acs-Ram
1. ABOUT THE ACS-RAM 1.1 Product Features Bluetooth ® Two-Way Intercom Intercom up to 0.5 km (0.3 mi)* Advanced Noise Control™ * in open terrain ACS-RAM Motorcycle Bluetooth Communication System | 5 ®... -
Page 6: Product Details

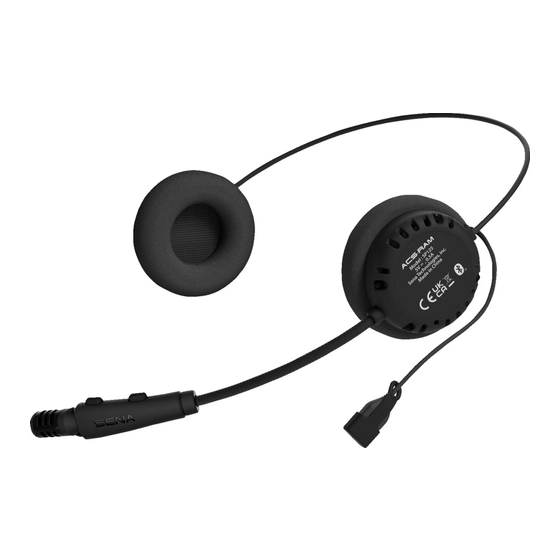

1 ABOUT THE ACS-RAM 1.2 Product Details (–) Button (+) Button Speaker (L) Center Button Microphone Speaker (R) Status & Charging LED DC Power Charging & Firmware Upgrade Port ACS-RAM Motorcycle Bluetooth Communication System | 6 ®... -
Page 7: Package Contents
1 ABOUT THE ACS-RAM 1.3 Package Contents ACS-RAM Microphone Sponges Female Hook and Loop Fasteners Male Hook and Loop Fasteners for Speakers for Speakers Thin Speaker Pads Thick Speaker Pads USB Power & Data Cable (USB-C) ACS-RAM Motorcycle Bluetooth Communication System | 7... -
Page 8: Installing The Headset On Your Helmet
2. INSTALLING THE HEADSET ON YOUR HELMET • The ACS-RAM fits best when installed on the Arai SZ-R VAS Helmet. 2.1 Installing the Headset 1. Peel off the cover of the male hook and loop fasteners for the speakers to expose the adhesive surface. Then, attach the fasteners to the back sides of speakers. - Page 9 2 InStAllIng the heAdSet on YouR helMet Note: • In order to enjoy optimal audio quality, Sena recommends placing the speakers as close as possible to your ears, using the thickest pads. • If you feel physically uncomfortable with the speakers when wearing the helmet, you can try thinner pads or remove the speaker pads.
-
Page 10: Getting Started
3. GETTING STARTED 3.1 Downloadable Sena Software 3.1.1 SENA MOTORCYCLES App By simply pairing your phone with your headset, you can use the SENA MOTORCYCLES App for quicker, easier set up and management. SENA MOTORCYCLES • Device Configuration Setting • Download the SENA MOTORCYCLES App on Google Play Store Store. -
Page 11: Charging
• Please make sure to take off your headset-installed helmet while charging. The headset automatically turns off during charging. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC, or other locally approved agencies. -
Page 12: Checking The Battery Level
You can raise or lower the volume by tapping the (+) Button or the (-) Button. Volume is set and maintained independently at different levels for each audio source (i.e., phone, intercom), even when the headset is rebooted. Volume Up Volume Down ACS-RAM Motorcycle Bluetooth Communication System | 12 ®... -
Page 13: Pairing The Headset With Other Bluetooth Devices
GPS, MP3 player, or Sena SR10 Two-Way Radio Adapter via Mobile Phone Pairing, Second Mobile Phone Pairing and GPS Pairing. The headset can also be paired with up to three other Sena headsets. 4.1 Phone Pairing There are three ways to pair the phone. -
Page 14: Pairing When The Acs-Ram Is Turned Off
4 PAiRing the heADSet with otheR Bluetooth DeviCeS 4.1.2 Pairing When the ACS-RAM is Turned Off 1. While the headset is off, press and hold the (+) Button and the (-) Button until the LED flashes red and blue alternately and you hear a voice prompt, “Phone pairing.”... -
Page 15: Second Mobile Phone Pairing - Second Mobile Phone, Gps, And Sr10
HOLD “ Configuration menu” 2. Double tap the (+) Button. Blinking “ Second mobile phone pairing” 3. Select ACS-RAM in the list of Bluetooth devices detected. If your Bluetooth Bluetooth device asks for a PIN, ACS - RAM enter 0000. -
Page 16: Mobile Phone Usage
5. MOBILE PHONE USAGE 5.1 Making and Answering Calls Answer a Call End a Call HOLD Reject a Call Voice Dial in stand-by HOLD HOLD mode Redial Last Number in stand-by HOLD mode ACS-RAM Motorcycle Bluetooth Communication System | 16 ®... -
Page 17: Stereo Music
6. STEREO MUSIC 6.1 Bluetooth Stereo Music Play/Pause Music HOLD Next Track Previous Track HOLD HOLD ACS-RAM Motorcycle Bluetooth Communication System | 17 ®... -
Page 18: Bluetooth Intercom
4. Tap Save and check that your friend (B) is paired with you (A) correctly. Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below. ACS-RAM Motorcycle Bluetooth Communication System | 18... -
Page 19: Using The Button
Intercom Pairing. Blinking HOLD “ Intercom pairing” 2. Tap the Center Button on either headset. Turns blue Confirms intercoms are paired 7.2 Two-Way Intercom Start/End Conversation with the Intercom Friend ACS-RAM Motorcycle Bluetooth Communication System | 19 ®... -
Page 20: Universal Intercom
Universal Intercom allows you to have Two-way intercom conversations with users of non Sena Bluetooth headsets. Non-Sena Bluetooth headset can be connected to the Sena Bluetooth headset if they support the Bluetooth Hands-Free Profile (HFP). You can pair the headset with only one non-Sena headset at a time. The intercom distance depends on the performance of the Bluetooth headset to which it’s connected. -
Page 21: Function Priority And Firmware Upgrades
You can upgrade firmware using the Sena Device Manager. The USB Power & Data Cable (USB-C) must be connected to your PC to upgrade firmware using the Sena Device Manager. Please visit sena.com to check for the latest software downloads. Click Here to Visit sena.com ACS-RAM Motorcycle Bluetooth Communication System | 21 ®... -
Page 22: Configuration Setting
None GPS Pairing None Delete All Pairings Execute Universal Intercom Pairing Execute Factory Reset Execute Exit Configuration Execute 10.1.1 Delete All Pairings You can delete all Bluetooth pairing information of the headset. ACS-RAM Motorcycle Bluetooth Communication System | 22 ®... - Page 23 10 CONFIGURATION SETTING 10.2 Software Configuration Setting You can change the settings of the headset through the SENA MOTORCYCLES App or the Sena Device Manager. SENA MOTORCYCLES Sena Device Manager 10.2.1 Headset Language You can select the device language. The selected language is maintained even when the headset is rebooted.
- Page 24 You can disable Voice Prompts by software configuration settings, but the following voice prompts are always on. - Headset configuration settings menu 10.2.7 Advanced Noise Control™ (Always On) The background noise is reduced during an intercom conversation. ACS-RAM Motorcycle Bluetooth Communication System | 24 ®...
- Page 25 11. TROUBLESHOOTING Please visit sena.com for more troubleshooting information. • Customer Support: sena.com 11.1 Fault Reset When the headset is not working properly, you can easily reset the unit. When the USB charging & data cable connects a power supply to the headset, the headset will automatically be turned off and a fault reset will occur.
- Page 26 Hero4 allowing for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered trademarks of Apple Inc.
