Summary of Contents for Sena ACS-RAM

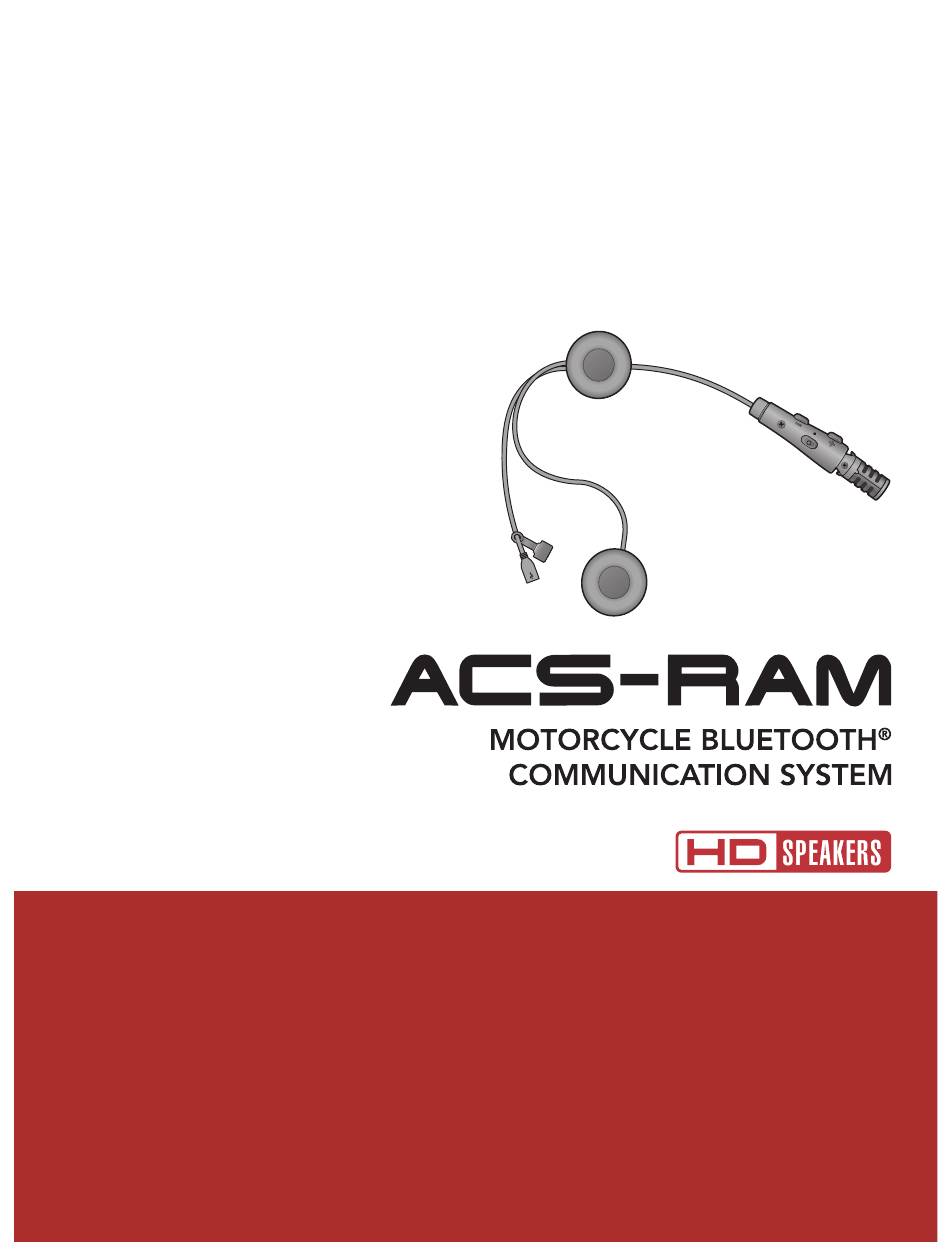

- Page 1 SENA QUICK START GUIDE ENGLISH 1.0.0...
-
Page 2: Downloadable Sena Software
Downloadable Sena Software Download the SENA MOTORCYCLES App on Google Play Store Store. SENA MOTORCYCLES • Device Configuration Setting Download the following items at sena.com. Firmware Sena Device Manager • Firmware upgrade • Device configuration setting Quick Start Guide, User’s Guide Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips. -
Page 3: Product Details

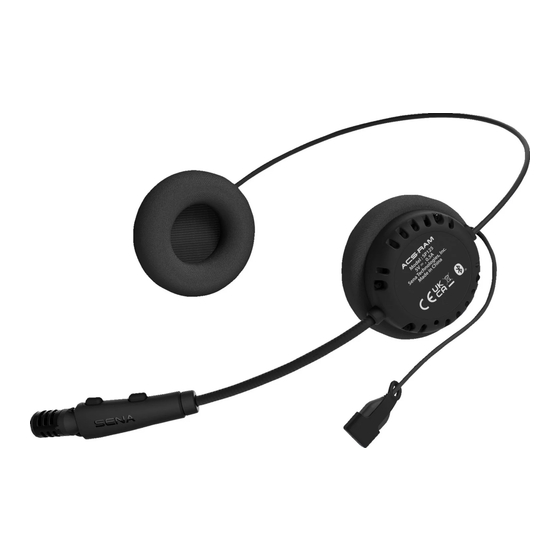

Product Details (–) Button (+) Button Speaker (L) Center Button Microphone Speaker (R) Status & Charging LED DC Power Charging & Firmware Upgrade Port... -
Page 4: Installation
Installation • The ACS-RAM fits best when installed on the Arai SZ-R VAS Helmet. • For more information about installation, refer to the User’s Guide. -
Page 6: Icon Legend
Icon Legend Tap button the specified Press and Hold button for the HOLD number of times specified amount of time Audible prompt “Hello” Basic Operations Powering On Powering Off HOLD Volume Up Volume Down Checking the Battery Level Powering On... -
Page 7: Phone Pairing
When you initially turn on the headset: HOLD ① “ Configuration menu” Blinking ② “ Phone pairing” ③ Select ACS-RAM in the list of Bluetooth devices detected. Bluetooth ACS - RAM Device B • For more information on phone pairing, refer to the User’s Guide. -
Page 8: Using The Phone
Using the Phone Answer a Call End a Call HOLD Reject a Call Voice Dial HOLD HOLD stand-by mode Redial Last Number HOLD stand-by mode Music Control Play/Pause HOLD Track Forward Track Backward HOLD HOLD... -
Page 9: Bluetooth Intercom
Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA MOTORCYCLES App without remembering the button operation. ① Pair the mobile phone with the headset. - Page 10 (B) is paired with you (A) correctly. Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below. Using the Button Users (You, B) enter into Intercom Pairing.
-
Page 11: Two-Way Intercom
Two-way Intercom Start/End Conversation with the Intercom Friend Configuration Menu Accessing the Configuration Menu HOLD “ Configuration menu” Navigating Between Menu Options Execute Menu Options... -
Page 12: Troubleshooting
Troubleshooting Fault Reset When the USB charging & data cable connects a power supply to the headset, the headset will automatically be turned off and a fault reset will occur. Note: Fault Reset will not restore the headset to factory default settings. -
Page 13: Quick Reference
Quick Reference TYPE OPERATION BUTTON COMMANDS HOLD Power on Power off Basic Operations Volume up/down Answer phone call HOLD End/reject phone call HOLD Voice dial Mobile Phone HOLD Redial Last Number HOLD Play/Pause music HOLD Track forward Music HOLD Track backward HOLD Intercom pairing Intercom...
