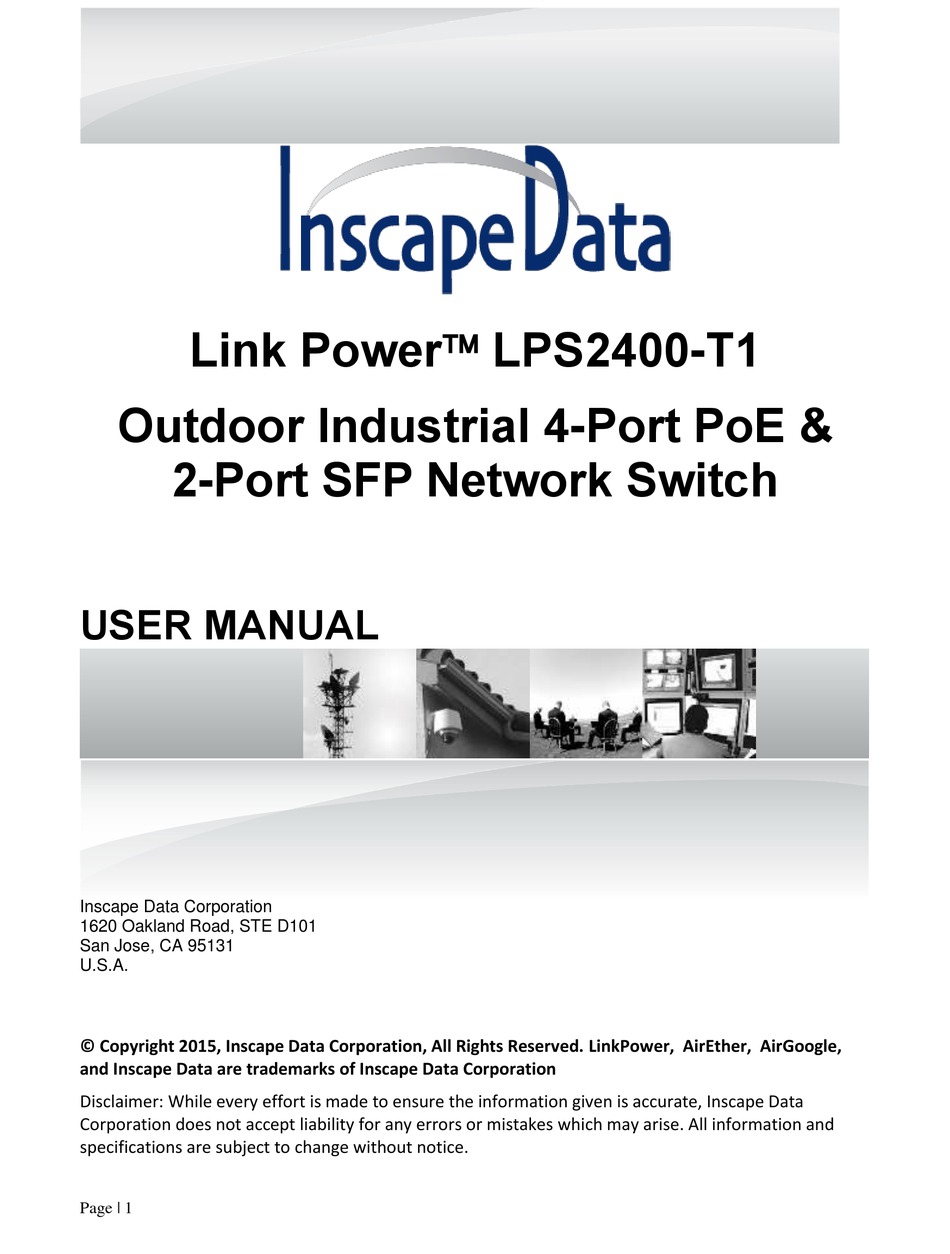

Link Power LPS2400-T1
Outdoor Industrial 4-Port PoE &
2-Port SFP Network Switch
USER MANUAL
Inscape Data Corporation
1620 Oakland Road, STE D101
San Jose, CA 95131
U.S.A.
© Copyright 2015, Inscape Data Corporation, All Rights Reserved. LinkPower, AirEther, AirGoogle,
and Inscape Data are trademarks of Inscape Data Corporation
Disclaimer: While every effort is made to ensure the information given is accurate, Inscape Data
Corporation does not accept liability for any errors or mistakes which may arise. All information and
specifications are subject to change without notice.
Page | 1
Advertisement
Table of Contents
Related Manuals for Inscape Data Link Power LPS2400-T1
Summary of Contents for Inscape Data Link Power LPS2400-T1
- Page 1 Inscape Data are trademarks of Inscape Data Corporation Disclaimer: While every effort is made to ensure the information given is accurate, Inscape Data Corporation does not accept liability for any errors or mistakes which may arise. All information and specifications are subject to change without notice.
- Page 2 Certification Inscape Data Corporation certifies that this product met its published specifications at time of shipment from the factory. FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Inscape Data Corporation assumes no liability for the customer’s failure to comply with these requirements.
- Page 4 Chassis Power Connection Before connecting or disconnecting ground or power wires to the chassis, ensure that power is removed from the device. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the device, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.
- Page 5 Product Description LPS2000-T1 Outdoor Industrial PoE Switch features with four PoE Ethernet ports and comply to 10/100/1000BaseT(X), IEEE802.3af PoE and two Gigabit SFP fiber optics interfaces. The power supply of single PoE port can be up to 15.4W. The transfer data can be up to 120Km from SFP fiber port to a control center.
- Page 6 LED Indicator Description Table: Description Indicator Status Green LED ON Power On, Normal PWR Indicator: POWER LED OFF Power OFF Connected PD Device, working properly Green LED ON Green LED Blink Short circuit or current overload PoE Indicator: PoE No Connected PD or Power OFF No Connected PD or Power OFF Yellow LED Blink Data transmission properly 10/1000 Indicator: Link...
- Page 7 Optional Accessories The following optional accessories can be order if required: 1. Mast/Pole Mounting Kit (Part No: MMK0001) 2. Ethernet Conduit Connector Kit (Part No: ECK0001) 3. Power Cable Conduit Connector Kit (Part No: PCC0001) 4. 30CM Plastic Ethernet cable conduit (2) (Part No. PECC0001) 5.
- Page 8 Contacting Inscape Data Sales and Support Offices For more information about Inscape Data Corporation products, applications, support, and for a current sales office listing, visit our web site: http://www.inscapedata.com U.S. Headquarters Here’s how to reach us if you’d like to place an order or if you have questions, concerns, or need support...
