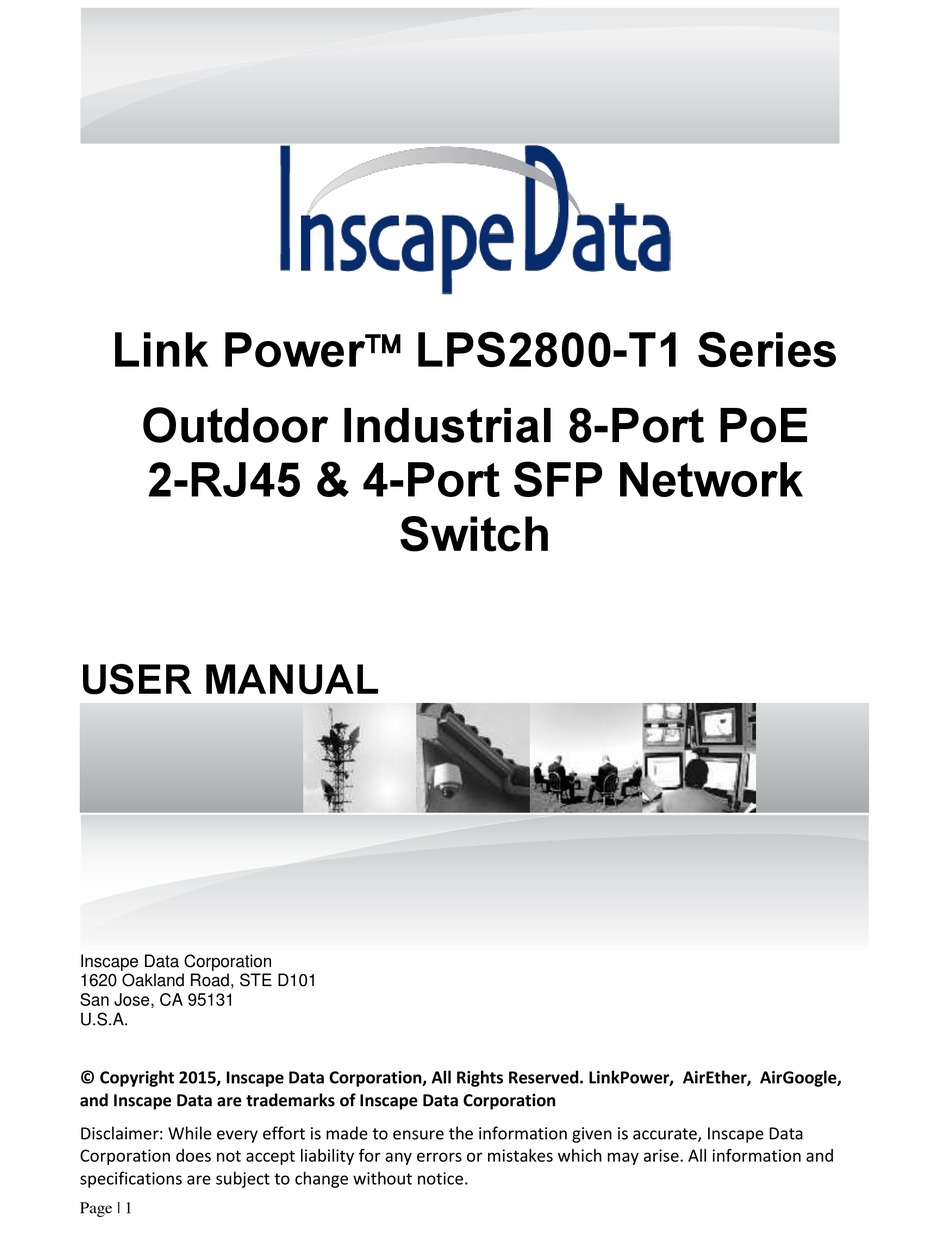

Link Power LPS2800-T1 Series
Outdoor Industrial 8-Port PoE
2-RJ45 & 4-Port SFP Network
Switch
USER MANUAL
Inscape Data Corporation
1620 Oakland Road, STE D101
San Jose, CA 95131
U.S.A.
© Copyright 2015, Inscape Data Corporation, All Rights Reserved. LinkPower, AirEther, AirGoogle,
and Inscape Data are trademarks of Inscape Data Corporation
Disclaimer: While every effort is made to ensure the information given is accurate, Inscape Data
Corporation does not accept liability for any errors or mistakes which may arise. All information and
specifications are subject to change without notice.
Page | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inscape Data Link Power LPS2800-T1 Series
Summary of Contents for Inscape Data Link Power LPS2800-T1 Series
- Page 1 Inscape Data are trademarks of Inscape Data Corporation Disclaimer: While every effort is made to ensure the information given is accurate, Inscape Data Corporation does not accept liability for any errors or mistakes which may arise. All information and specifications are subject to change without notice.
-
Page 2: Fcc Statement
Certification Inscape Data Corporation certifies that this product met its published specifications at time of shipment from the factory. FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Ground The Instrument
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Inscape Data Corporation assumes no liability for the customer’s failure to comply with these requirements. -
Page 4: Packing List
Chassis Power Connection Before connecting or disconnecting ground or power wires to the chassis, ensure that power is removed from the device. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the device, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. -
Page 5: Product Description

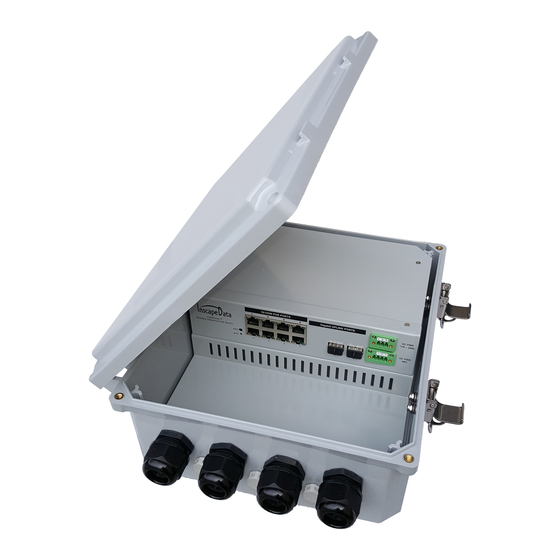

Product Description LPS2800-T1 Series Outdoor Industrial PoE Switch features with four PoE Ethernet ports and comply to 10/100/1000BaseT(X), IEEE802.3af/at PoE and two RJ45 and four Gigabit SFP fiber optics uplink interfaces. Each of the PoE ports supplies DC power up to 15.4W for 802.3af and 25.5W for 802.3at. The transfer data is up to 120Km from SFP fiber port to a control center. - Page 6 LED Indicator Description Table: Indicator Status Description Green LED ON Power On, Normal SYS Indicator: POWER LED OFF Power OFF No Connected PD or Power OFF Yellow LED Blink Data transmission properly 1000M Indicator: Link Yellow LED ON Connected with 1000Mbps network device Green LED ON Connected PD Device, working properly Green LED Blink Short circuit or current overload...
-
Page 7: Optional Accessories
Waterproof Ethernet, Fiber Optics, & Power Connector Assembly Diagram Plastic Filler Note: The Sealing Insert comes with one and three holes. The Plastic Filler MUST be used to cover the Sealing Insert, if any of the hole is not used in order to maintain waterproof of the connector. Optional Accessories The following optional accessories can be order if required: 1. - Page 8 Page | 8...
- Page 9 System Specifications: ELECTRICAL PIN OUT DIAGRAM Contacting Inscape Data Sales and Support Offices For more information about Inscape Data Corporation products, applications, support, and for a current sales office listing, visit our web site: http://www.inscapedata.com U.S. Headquarters Here’s how to reach us if you’d like to place an order or if you have questions, concerns, or need support...
- Page 10 Page | 10...
