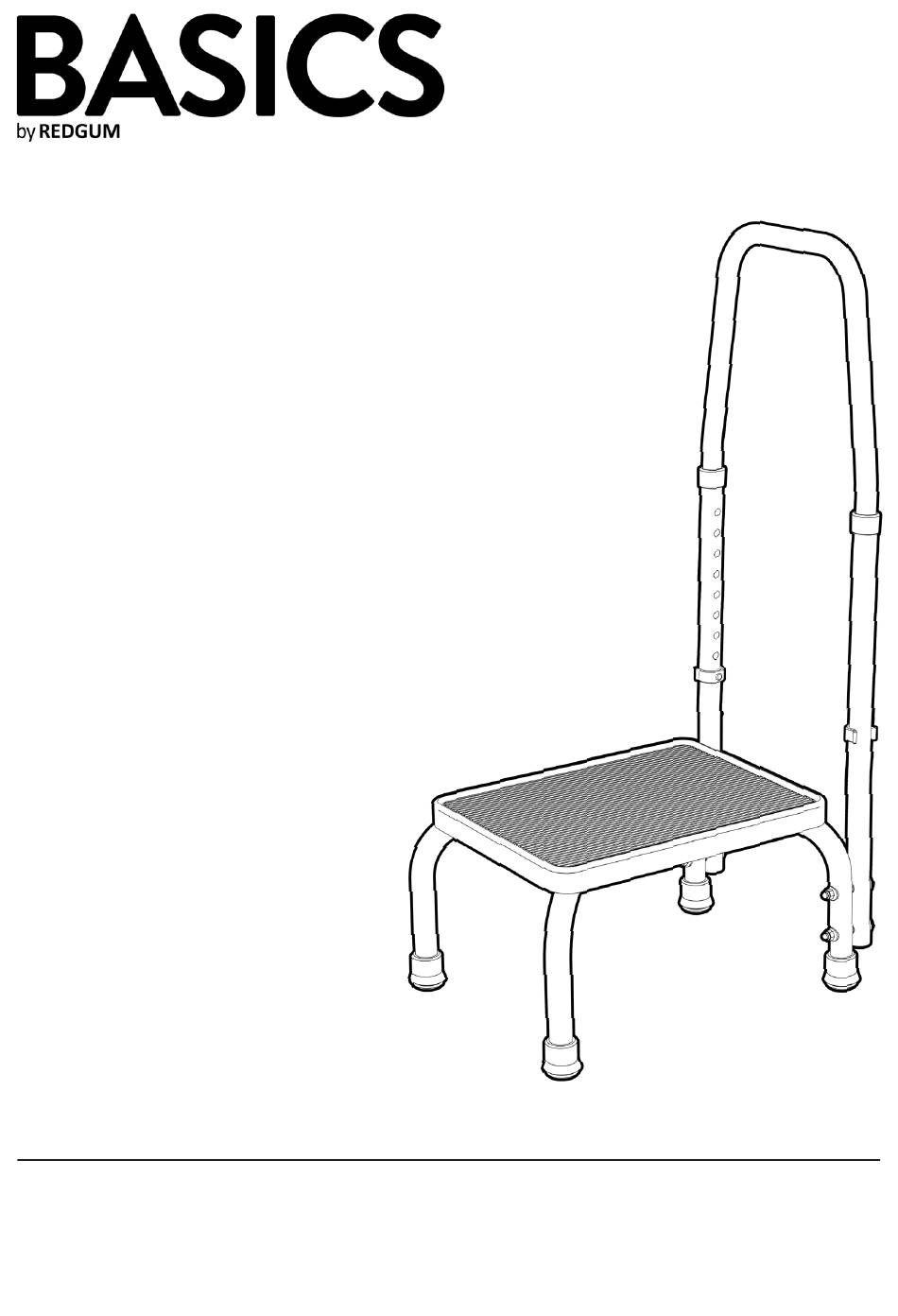

- Page 1 STEP WITH HANDRAIL B68SH USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 Step with handrail user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of BASICS by Redgum. BASICS by Redgum strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - LEG ATTACHMENT ASSEMBLY - HANDRAIL UPRIGHT ATTACHMENT ASSEMBLY - HANDRAIL FITTING SET UP - HANDRAIL HEIGHT ADJUSTMENT USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY BASICS by Redgum - PRODUCT RANGE NOTES redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality BASICS by Redgum product. If you have any issues or questions about the Step with handrail please contact your supplier or BASICS by Redgum direct: T: +61 8 9248 4180 E: sales@for-de.com.au A: 1 Business Way, Malaga Western Australia 6090...
- Page 5 360mm (W) 285mm (D) 230mm (H) Handrail: 840 - 1040mm (H) 9 settings at 25mm increments Product Weight: 4.3kg Maximum User Weight: 136kg Please contact BASICS by Redgum if you would like any further information on the Step with handrail. redgumbrand.com.au...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: We recommend that you visually inspect the Step with handrail parts prior to assembly: 1 x LEG (Flat to underside) 1 x LEG LEFT UPRIGHT (Flat on top) RIGHT...
-
Page 7: Assembly - Leg Attachment
ASSEMBLY - LEG ATTACHMENT The Step with handle requires assembly prior to use. Please follow these steps to attach legs to platform: Leg with flat on top 1. Lay the platform upside down. (Rubber surface facing down) NOTE: Holes in side of leg 2. -
Page 8: Assembly - Handrail Upright Attachment
ASSEMBLY - HANDRAIL UPRIGHT ATTACHMENT Please follow these steps to attach handrail uprights to legs: 1. Feed curved washer onto long bolt. 2. Feed bolt with washer through hole in upright. 3. Feed flat washer onto bolt. 4. Identify the correct leg to fix the upright to. -
Page 9: Assembly - Handrail Fitting
ASSEMBLY - HAND RAIL FITTING The adjustable handle for the handrail requires fitting prior to use. Please follow these steps: 1. Line up the handrail tube with the uprights. Handrail tube 2. Slide handrail all the way down into uprights. 3. - Page 10 SET UP - HANDRAIL HEIGHT ADJUSTMENT We recommend that the handrail on the Step be set at the correct height for the user. 200mm The user should be able to hold onto the Height horizontal top section of the handrail with Adjustment a straight arm when standing on the step.
-
Page 11: Usage Guidelines - Do's + Don'ts
NEVER stand on the Step with handrail with one foot to gain extra reach. Use an appropriate double step or ladder. If you have any issues or questions about the Step with handrail please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au... - Page 12 Abrasive cleaners or abrasive cleaning pads could damage the Step and should not be used. If you have any issues or questions about the Step please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au...
-
Page 13: Warranty
If you have any issues or questions about the Step with handrail please contact your supplier or BASICS by Redgum direct on: T: +61 8 9248 4180 E: sales@for-de.com.au... - Page 14 BASICS by Redum - PRODUCT RANGE BASICS by Redgum offer a range of products including: Step Walking frame Seat walker B68H with 5” wheels / rear glides (Burgundy red + Silver) B4070WS B4204S Bedside commode Bariatric commode chair B580 B588...
-
Page 15: Notes
NOTES redgumbrand.com.au... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
