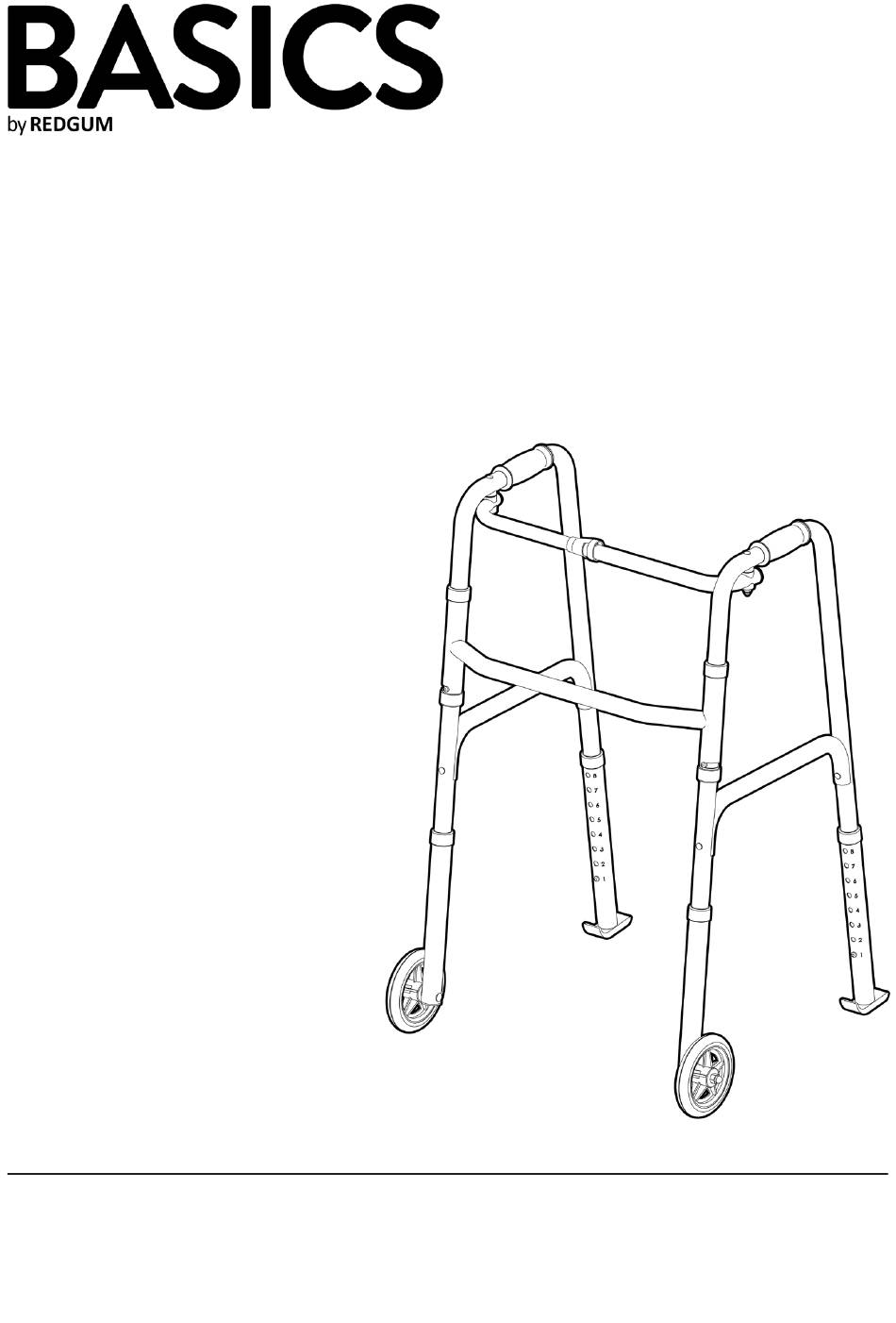

- Page 1 FOLDING WALKING FRAME B4070WS USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 Folding Walking Frame user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of BASICS by Redgum. BASICS by Redgum strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - FIT REAR GLIDES ASSEMBLY - FIT FRONT WHEELS SET UP - WALKING FRAME HEIGHT ADJUSTMENT USAGE - FOLDING WALKING FRAME USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY BASICS by Redgum - PRODUCT RANGE redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality BASICS by Redgum product. If you have any issues or questions about the Folding Walking Frame please contact your supplier or BASICS by Redgum direct: T: +61 8 9248 4180 E: sales@for-de.com.au A: 1 Business Way, Malaga Western Australia 6090...
- Page 5 Ø125 (5”) x 20mm - Grey PVC tyre / Black PP rim (replacements available) Glides: 80 x 30mm - White PP (replacements available) Product Weight: 2.6kg Maximum User Weight: 136kg Please contact BASICS by Redgum if you would like any further information on the Folding Walking Frame . redgumbrand.com.au...
- Page 6 SET UP - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: We recommend that you visually inspect the Folding Walking Frame parts prior to assembly: WITH GLIDE WITH (x2) WHEEL (1 x LEFT) (1 x RIGHT) FRAME IMPORTANT NOTE: (x1)
- Page 7 SET UP - UNFOLD FRAME The Folding Walking Frame needs to be unfolded out of the box. Please follow these steps to unfold the frame: 1. Rotate out the side frame that is on the outside of frame. 2. Rotate out the other side frame.
-
Page 8: Assembly - Fit Rear Glides
ASSEMBLY - FIT REAR GLIDES Please follow these steps to fit rear glides to frame: 1. Put the unfolded frame on its side. 2. Offer up leg with glide to REAR LEG of side frame. Align holes in leg with press button on frame. 3. -
Page 9: Assembly - Fit Front Wheels
ASSEMBLY - FIT FRONT WHEELS Please follow these steps to fit front wheels to frame: 1. Put the unfolded frame on its side. 2. Offer up leg with wheel to FRONT LEG of side frame. Ensure wheel is facing toward OUTSIDE of frame. Align holes in leg with press button on frame. - Page 10 SET UP - WALKING FRAME HEIGHT ADJUSTMENT We recommend that the Folding Walking Frame be set at the correct height for the user. The user should be able to hold onto the hand grip with a straight arm when using the walking frame. To adjust the height of the frame: - Push in press button and slide leg onto frame until press button pops...
-
Page 11: Usage - Folding Walking Frame
USAGE - FOLDING WALKING FRAME Press down The Folding Walking Frame can be folded for storage and transit. To fold the Walking Frame follow these steps: - Press down on the raised section of the plastic part found on the upper cross tube and rotate in the side frame. -
Page 12: Usage Guidelines - Do's + Don'ts
Ensure wheels and glides are in contact with the ground. Take care when using Folding Walking Frame on uneven or wet ground. If you have any issues or questions about the Folding Walking Frame please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au... - Page 13 Abrasive cleaners or abrasive cleaning pads could damage the Walking Frame and should not be used. If you have any issues or questions about the Folding Walking Frame please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au...
-
Page 14: Warranty
If you have any issues or questions about the Folding Walking Frame please contact your supplier or BASICS by Redgum direct on: T: +61 8 9248 4180 E: sales@for-de.com.au... - Page 15 BASICS by Redum - PRODUCT RANGE BASICS by Redgum offer a range of products including: Step Step with handle Seat walker B68H B68SH (Burgundy red + Silver) B4204S Bedside commode Bariatric commode chair B580 B588 Please contact BASICS by Redgum for further information: T: +61 8 9248 4180 E: orders@for-de.com.au...
- Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
