Redgum RG 4401 Usage And Maintenance Instructions

Aluminium 4-wheeled rollator
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

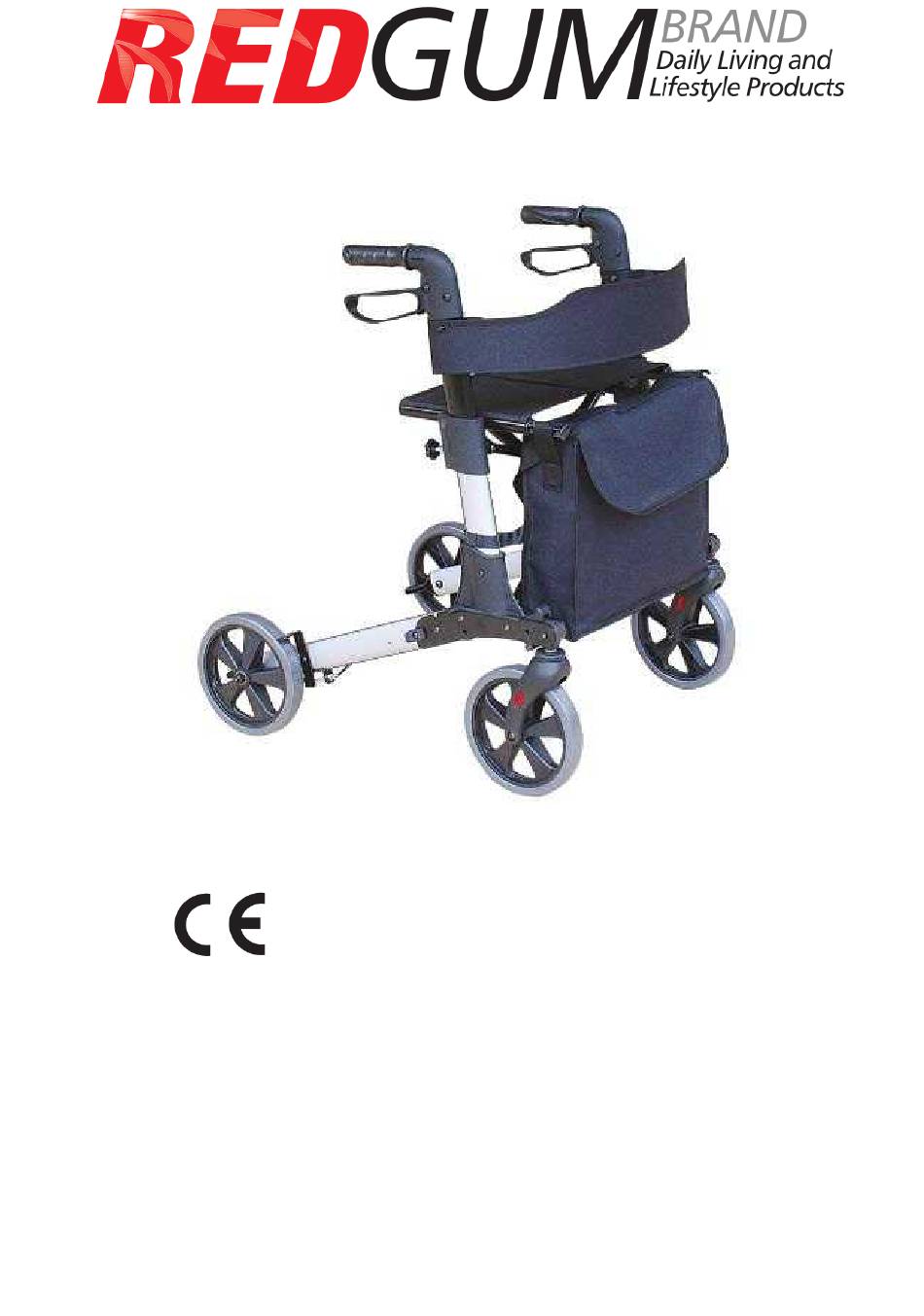

Aluminium 4-Wheeled Rollator
Usage and Maintenance Instructions
Model :RG 4401

Advertisement

loading

Related Manuals for Redgum RG 4401

Summary of Contents for Redgum RG 4401

  • Page 1 Aluminium 4-Wheeled Rollator Usage and Maintenance Instructions Model :RG 4401...

  • Page 2: Before Use

    N.B. This equipment must be installed by a competent person. Do not exceed the weight limit stated - doing so could put the user at risk. 120KGS WEIGHT LIMIT. BEFORE USE • Carefully remove all packaging. Avoid using any knives or other sharp instruments as this may damage the surface of the product.

  • Page 3: Assembly Procedure

    ASSEMBLY INSTRUCTIONS Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. If you suspect the unit to faulty, please do not use, but contact your supplier immediately for service.
  • Page 4 Step 2: Unfolding rear wheel: Press the button on both sides and pull up，then move the rear wheel pole downward until reset on the next button position. Repeat for the second rear wheel. Folding rear wheel: Press the button on both sides and pull up，then move the rear wheel pole upward until reset on the next button position.

  • Page 5: Operating The Brakes

    UNFOLD / FOLD  Step 6: Unfold the rollator by pressing down on both sides of the seat frame. (Figure 6 Figure 6 Step 7: To fold,pull seat upwards by the black handle on the seat plate as show in (Figure 7) . The rollator can now be folded completely.

  • Page 6: Brake Adjustment

    BRAKE ADJUSTMENT Your Rollator brake system will require periodic adjustment. To adjust the brakes loosen Nut B and then screw/unscrew Nut A. When adjusted re-tighten Nut B. If further adjustment is required then loosen the Locking Screw and then using a pair of pliers pull the cable down by approximately a millimeter.

  • Page 7: Maintenance

    CARE AND MAINTENANCE & YOUR OBLIGATION 1. Only use your Rollator for the purpose for which it is intended, which is as an aid to walking. It is intended your rollator is only used on standard pavements or at home. It should not be used on rough terrain or pot-holed surfaces. The use of your rollator on these surfaces can seriously compromise your safety and may damage your rollator beyond repair.
