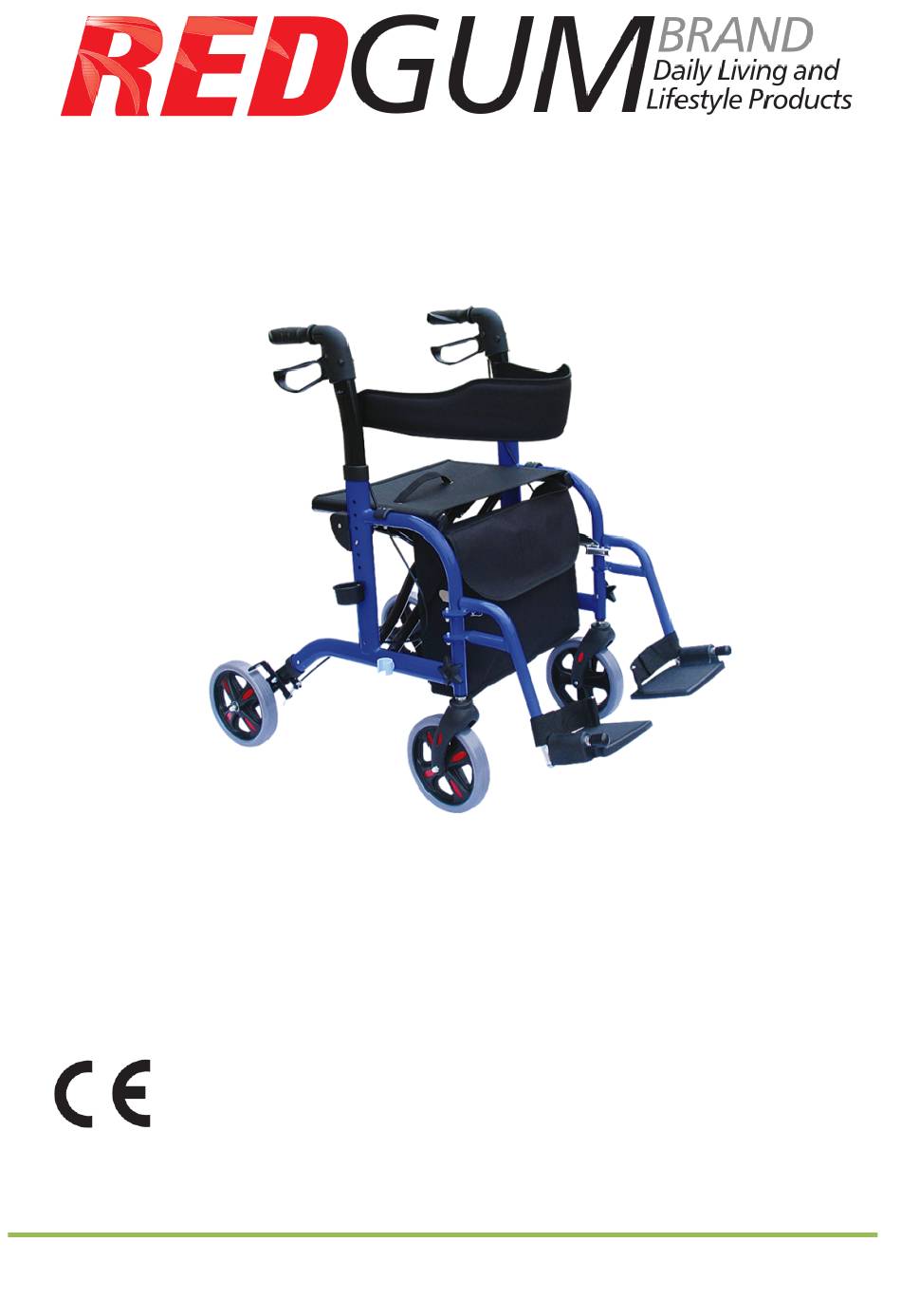

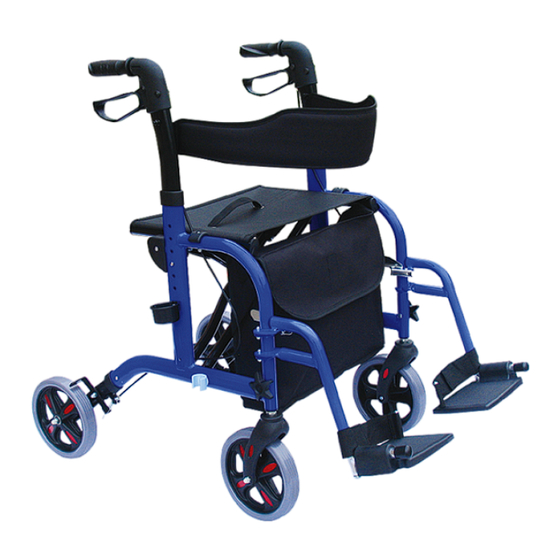

- Page 1 Aluminium 4-Wheeled Rollator/ Occasional Transport Chai r __________________________ RG4408 Usage and Maintenance Instructions...
- Page 2 N.B. This equipment must be installed by a competent person. Aluminium Rollator 120kg weight limit Do not exceed the weight limit stated - doing so could put the user at risk. BEFORE USE • Carefully remove all packaging. Avoid using any knives or other sharp instruments as this may damage the surface of the product.
-
Page 3: Step
ASSEMBLY INSTRUCTIONS Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. If you suspect the unit to faulty, please do not use, but contact your supplier immediately for service. -
Page 4: Step
Assembly procedure： Step 1： Install front wheel into receptacle located on the front of the frame. Thread bolt through holes on rollator frame, attach star head clamp knob and tighten. Repeat step 1 to attach the second front wheel. (see fig. 1) Step 2：... - Page 5 Step 4: Slide the canvas tabs of the shopping bag onto the hooks located on the sides of the seat . Use the longer ‘hook and loop’ canvas straps to attach the bag to the uprights of the main frame (see fig.4) fig.
-
Page 6: Step
IMPORTANT Before use ensure all locking pins are fully engaged as (fig. 8) fig. 8 ASSEMBLY INSTRUCTIONS (continued) Step 8: To fit the footrests align the holes in the footrest brackets with the lugs on the front legs and lower into position (see fig. 9) Swing the footrests inward to lock them (see fig. -
Page 7: Step
2. The brakes on your rollator have a park option (fig. 13). To operate the park option, push downwards both brakes simultaneously. You will feel the brake make a very slight click. Your brakes are now in the ‘lock’ position. 3. - Page 8 CARE AND MAINTENANCE & YOUR OBLIGATION 1. Only use your rollator for the purpose for which it intended, which is as an aid to walking. It is intended your rollator is only used on standard pavements or at home. It should not be used on rough terrain or pot-holed surfaces. The use of your rollator on these surfaces can seriously compromise your safety and may damage your rollator beyond repair.
