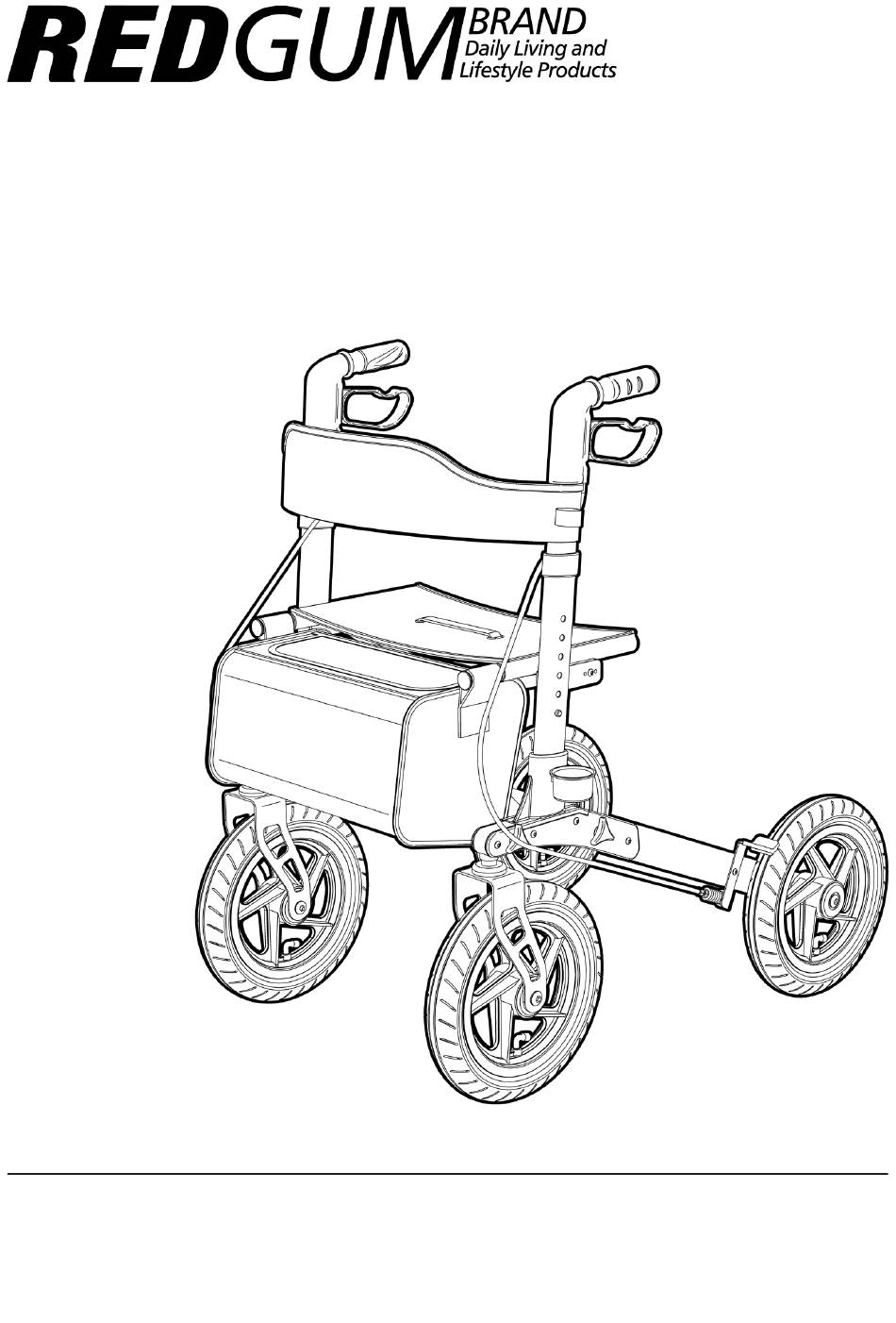

- Page 1 ALL TERRAIN COMPACT SEAT WALKER RG4412 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 All Terrain Compact Seat Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS SET UP - UNPACK and INSPECT SUPPLIED PARTS SET UP - UNFOLDING / FOLDING WHEELS SET UP - UNFOLDING / FOLDING FRAME SET UP - FIT BAG OPERATION - HANDLE ADJUSTMENT OPERATION - HAND BRAKES OPERATION - BRAKE ADJUSTMENT USAGE GUIDELINES - DO’s + DON’Ts...
-
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the All Terrain Compact Seat Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 5: Product Overview
Wheel Diameter: Ø305mm / 12” Carry Bag: 370mm L x 200mm W x 200mm D Weight: 11kg Maximum User Weight: 136kg Please contact REDGUM Brand if you would like any further information on the All Terrain Compact Seat Walker. redgumbrand.com.au... - Page 6 SET UP - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: Backrest / Seat not shown for clarity We recommend that you visually inspect the following aspects of the seat walker prior to use: - Framework - Upholstery - Wheels...
- Page 7 SET UP - UNFOLDING / FOLDING WHEELS The All Terrain Compact Seat Walker comes folded and requires unfolding prior to use. Please follow these steps: 1. Lay the folded seat walker on its side. 2. Remove both hand screws. 3. Rotate front and rear wheels down as shown.
- Page 8 SET UP - UNFOLDING / FOLDING FRAME The All Terrain Compact Seat Walker requires unfolding prior to use. Please follow these steps: Backrest / Seat not shown for clarity 1. Pull OUT on both of the handles at the same time to open out the seat walker. 2.
- Page 9 SET UP - FIT BAG The All Terrain Compact Seat Walker comes with a bag that can be attached to the front of the walker. Please follow these steps to fit bag correctly: 1. Position bag with bag opening facing the front of the walker.
-
Page 10: Operation
OPERATION - HANDLE ADJUSTMENT The All Terrain Compact Seat Walker has adjustable height handles. Please follow these steps to adjust the handle height correctly: 1. Depress the push button located on the outside of the upright. 2. Move the handle to the required height. (You will need to depress the push button for every height setting change) 3. - Page 11 OPERATION - HAND BRAKES The All Terrain Compact Seat Walker has closed loop hand brakes on both handles. IMPORTANT NOTE Both hand brakes should be used simultaneously to ensure your seat walker stops as required and you are in control. To STOP, gently pull upwards Pull both levers up on both brakes simultaneously.
-
Page 12: Brake Adjustment
OPERATION - BRAKE ADJUSTMENT The All Terrain Compact Seat Walker brake system will require periodic adjustment. Adjustment is required when either the brake or park brake no longer stops the rear wheel from spinning. To adjust the brake: 1. Carefully release the locking screw using a suitable allen key (not supplied). -
Page 13: Usage Guidelines
To do so will void your warranty and may seriously compromise your safety. If you have any issues or questions about the All Terrain Compact Seat Walker please contact your supplier or REDGUM Brand direct. redgumbrand.com.au... -
Page 14: Product Care
Tumble dry on lowest temperature. Spot clean any small marks with mild soap and water then allow to air dry. If you have any issues or questions about the All Terrain Compact Seat Walker please contact your supplier or REDGUM Brand direct. redgumbrand.com.au... -
Page 15: Warranty
If you have any issues or questions about the All Terrain Compact Seat Walker please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
