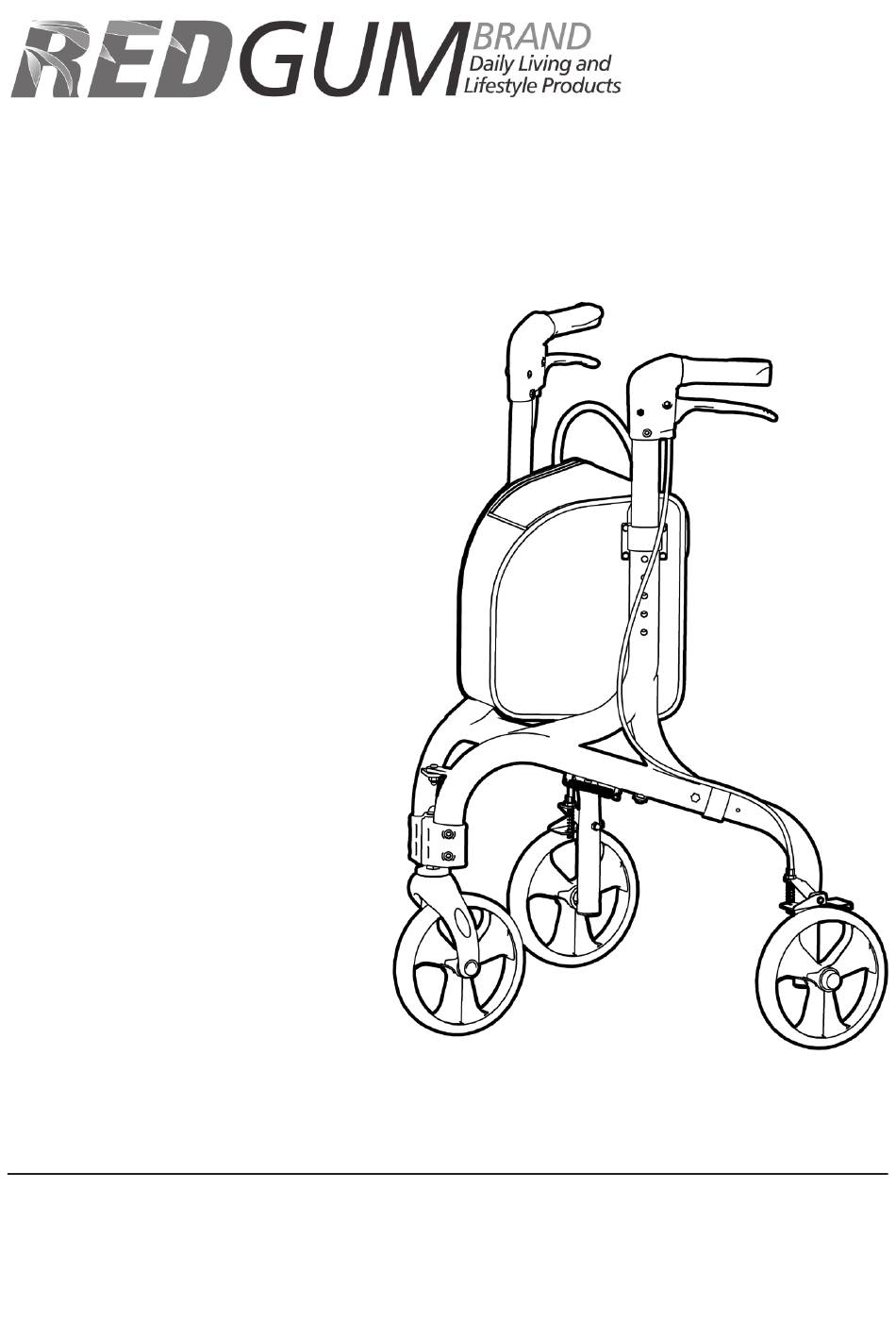

- Page 1 TRI WALKER RG4402 JAN 2020 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 REDGUM Brand owns the copyright to the TRI WALKER user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible that are subject to change without notice.
-
Page 3: Table Of Contents
ASSEMBLY - INSTALL HANDLES ASSEMBLY - INSTALL BAG OPERATION - USING THE TRI WALKER (BRAKES / FOLDING THE TRI WALKER) USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS /SERVICING / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE NOTES redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Tri Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@redgumbrand.com.au...
- Page 5 Setting 1: 830mm Setting 2: 855mm Setting 3: 880mm Setting 4: 905mm Setting 5: 930mm Wheel size: Ø190mm Product Weight: 5kg Maximum User Weight: 115kg Please contact REDGUM Brand if you would like any further information on your Tri Walker. redgumbrand.com.au...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 - Main Frame (including front wheel) x 1 2 - RHS Handle / RHS Rear Wheel Frame x 1 3 - LHS Handle / LHS Rear Wheel Frame x 1 4 - Bag x 1 5 - Handwheel x 2 6 - Handwheel Bolts x 2...
-
Page 7: Assembly - Unfold Main Frame / Rear Wheel Installation
ASSEMBLY - UNFOLD MAIN FRAME / REAR WHEEL INSTALLATION UNFOLD MAIN FRAME: Gently pull the main frame apart until the spring locks the cross bar open. Crossbar Crossbar REAR WHEEL INSTALLATION: With the wheel facing toward the outside of the walker - Insert the wheel frame tube into the main frame tube. - Page 8 ASSEMBLY - INSTALL HANDLES With the thumb support on the handle facing toward the outside of the walker... Insert the handle tube into the main frame tube. Allow the handle to go down until the press button contacts the main frame. Push and hold the press button down whilst pushing the handle down.
- Page 9 ASSEMBLY - INSTALL BAG The Tri Walker comes standard with a carry bag. Orientate the bag so the wider part of the bag is facing toward the rear of the walker. (Pockets on rear of bag to be facing the user) Slot one of the ‘T-brackets’...
-
Page 10: Operation - Using The Tri Walker (Brakes / Folding The Tri Walker)
OPERATION - USING THE TRI WALKER Using the Brakes: Squeeze the brake lever up to apply the brake. Let go of the brake lever to release the brake. Note: The brakes are operated independently. Using the Park Brakes: Push the brake lever down until it locks into position. -
Page 11: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Tri Walker. Failure to follow these guidelines may result in damage to the Tri Walker and put the user at risk. 115kg Maximum User Weight The maximum load weight for the Tri Walker bag must not be greater than 5kg. - Page 12 SERVICING REDGUM Brand recommend that you should have your Tri Walker serviced every 12 months or less if used by, or issued to, various users. Servicing should be carried out by an approved service technician or by REDGUM Brand directly.
-
Page 13: Warranty
WARRANTY Your REDGUM Brand RG4402 - TRI WALKER is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL DAMAGE, MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. -
