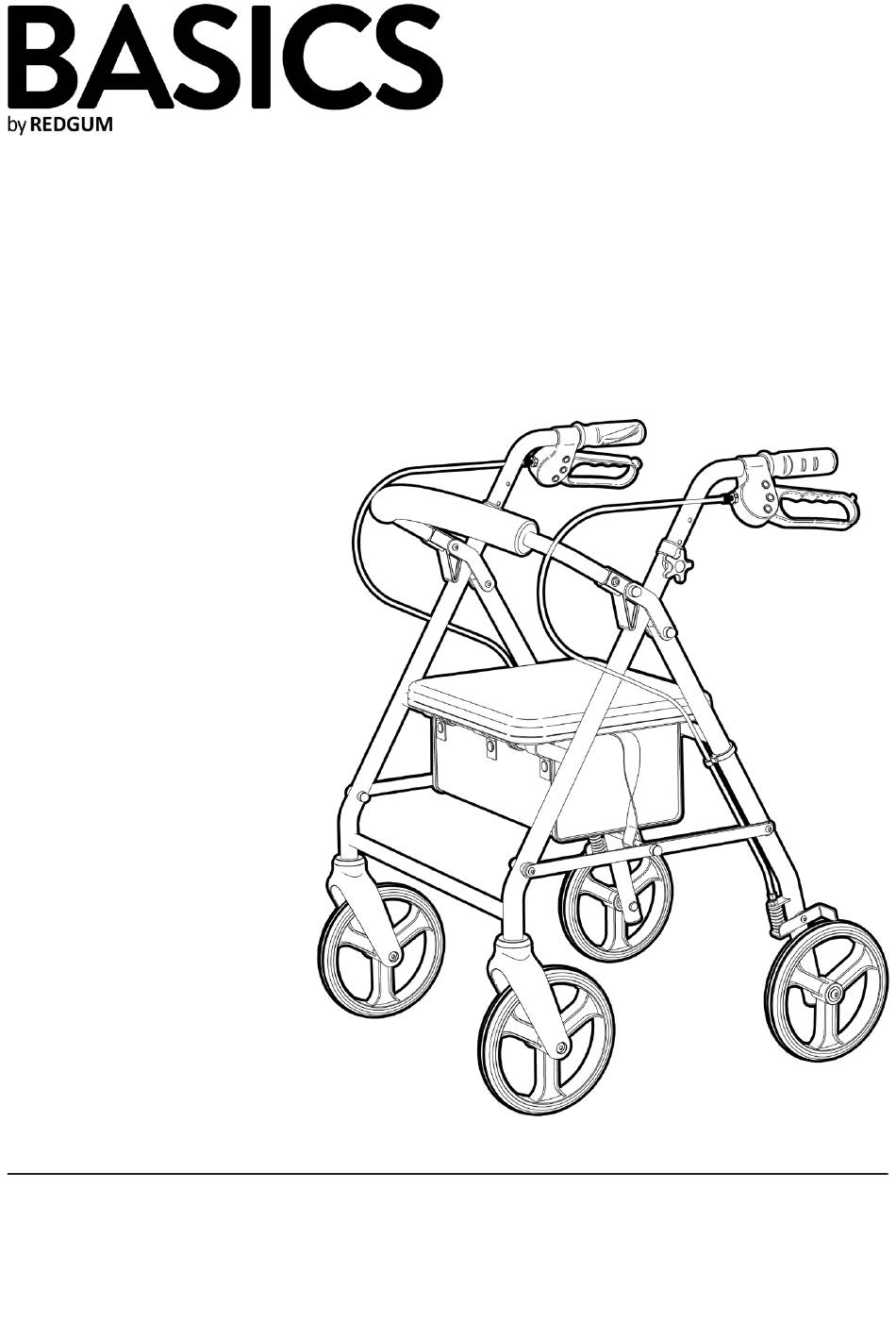

  • Page 1 SEAT WALKER B4204S USER MANUAL Please read and keep these instructions redgumbrand.com.au...
  • Page 2 Seat Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of BASICS by Redgum. BASICS by Redgum strives to provide the highest quality products possible.

  • Page 3: Table Of Contents

    SET UP - HANDLE HEIGHT ADJUSTMENT OPERATION - HAND BRAKES OPERATION - HAND BRAKE ADJUSTMENT OPERATION - FOLDING SEAT WALKER USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY BASICS by Redgum - PRODUCT RANGE NOTES redgumbrand.com.au...
  • Page 4 INTRODUCTION Thank you for purchasing this quality BASICS by Redgum product. If you have any issues or questions about the Seat Walker please contact your supplier or BASICS by Redgum direct: T: +61 8 9248 4180 E: sales@for-de.com.au A: 1 Business Way, Malaga Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines.
  • Page 5 Seat: 360mm (W) x 310mm (D) Seat Height: 570mm (from floor to top of seat) Wheel Diameter: Ø200mm / 8” Product Weight: 8.7kg Maximum User Weight: 136kg Please contact BASICS by Redgum if you would like any further information on the Seat Walker . redgumbrand.com.au...
  • Page 6 SET UP - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: We recommend that you visually inspect the Seat Walker parts prior to assembly: FRAME (x1) HANDLES (1 x LEFT) (1 x RIGHT) BACKREST (x1) IMPORTANT NOTE: If you see any damage...

  • Page 7: Assembly - Unfold Frame

    ASSEMBLY - UNFOLD FRAME Please follow these steps to unfold the Seat Walker frame correctly: 1. Position the Seat Walker so all four wheels are touching the ground. 2. Push down and pull out on the cross bars as shown to open up the frame. 3.

  • Page 8: Assembly - Install Handles

    ASSEMBLY - INSTALL HANDLES Please follow these steps to install the handles onto the Seat Walker correctly: 1. Undo the handwheel and remove the saddle washer and bolt from frame. IMPORTANT NOTE The handles are left and right handed and need to be fitted to the correct side of frame.

  • Page 9: Assembly - Install Handles (Continued)

    ASSEMBLY - INSTALL HANDLES (continued) 3. Position handle to the required height setting. by aligning holes in handle and frame. (Refer to page 8.) 4. Insert the bolt through the hex hole in the frame. Line up bolt head with hex hole. 5.

  • Page 10: Assembly - Install Padded Backrest

    ASSEMBLY - INSTALL PADDED BACKREST Please follow these steps to install the padded backrest correctly onto the Seat Walker: 1. Line up the tubes on the padded backrest with the pivot brackets on the frame. 2. Push the backrest tubes into the pivot brackets 3.
  • Page 11 SET UP - HANDLE HEIGHT ADJUSTMENT It is very important that the handles on the Seat Walker are set to the correct height to suit the user. Follow these steps to set the handle height to provide the best support: 1.
  • Page 12 OPERATION - HAND BRAKES The Seat Walker has closed loop hand brakes on both handles. IMPORTANT NOTE Both hand brakes should be used simultaneously to ensure your seat walker stops as required and you are in control. To STOP, gently pull upwards on both brakes simultaneously.
  • Page 13 OPERATION - HAND BRAKE ADJUSTMENT The Seat Walker brake system might require adjustment from time to time. Adjustment is required when either the brake or park brake no longer stops the rear wheel from spinning. To adjust the brake: 1. Carefully release the locking screw using a suitable allen key (not supplied).
  • Page 14 OPERATION - FOLDING SEAT WALKER Your Seat Walker can be folded up to reduce the amount of room it takes up when being transported or stored. Please follow these steps to fold the Seat Walker correctly: 1. Rotate the padded backrest up. 2.

  • Page 15: Usage Guidelines - Do's + Don'ts

    Ensure all four legs remain in contact with the ground when the Seat Walker is in use. Do not lean too far to one side or lean backwards causing the legs to leave the ground. If you have any issues or questions about the Seat Walker please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au...
  • Page 16 Abrasive cleaners or abrasive cleaning pads could damage the Seat Walker and should not be used. If you have any issues or questions about the Seat Walker please contact your supplier or BASICS by Redgum direct. redgumbrand.com.au...

  • Page 17: Warranty

    If you have any issues or questions about the Seat Walker please contact your supplier or BASICS by Redgum direct on: T: +61 8 9248 4180 E: sales@for-de.com.au...
  • Page 18 BASICS by Redum - PRODUCT RANGE BASICS by Redgum offer a range of products including: Step Step with handle Walking frame B68H B68SH with 5” wheels / rear glides B4070WS Bedside commode Bariatric commode chair B580 B588 Please contact BASICS by Redgum for further information: T: +61 8 9248 4180 E: orders@for-de.com.au...

  • Page 19: Notes

    NOTES redgumbrand.com.au...
  • Page 20 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
