Liquiline System CA80PH
3
Device description
3.1
Device design

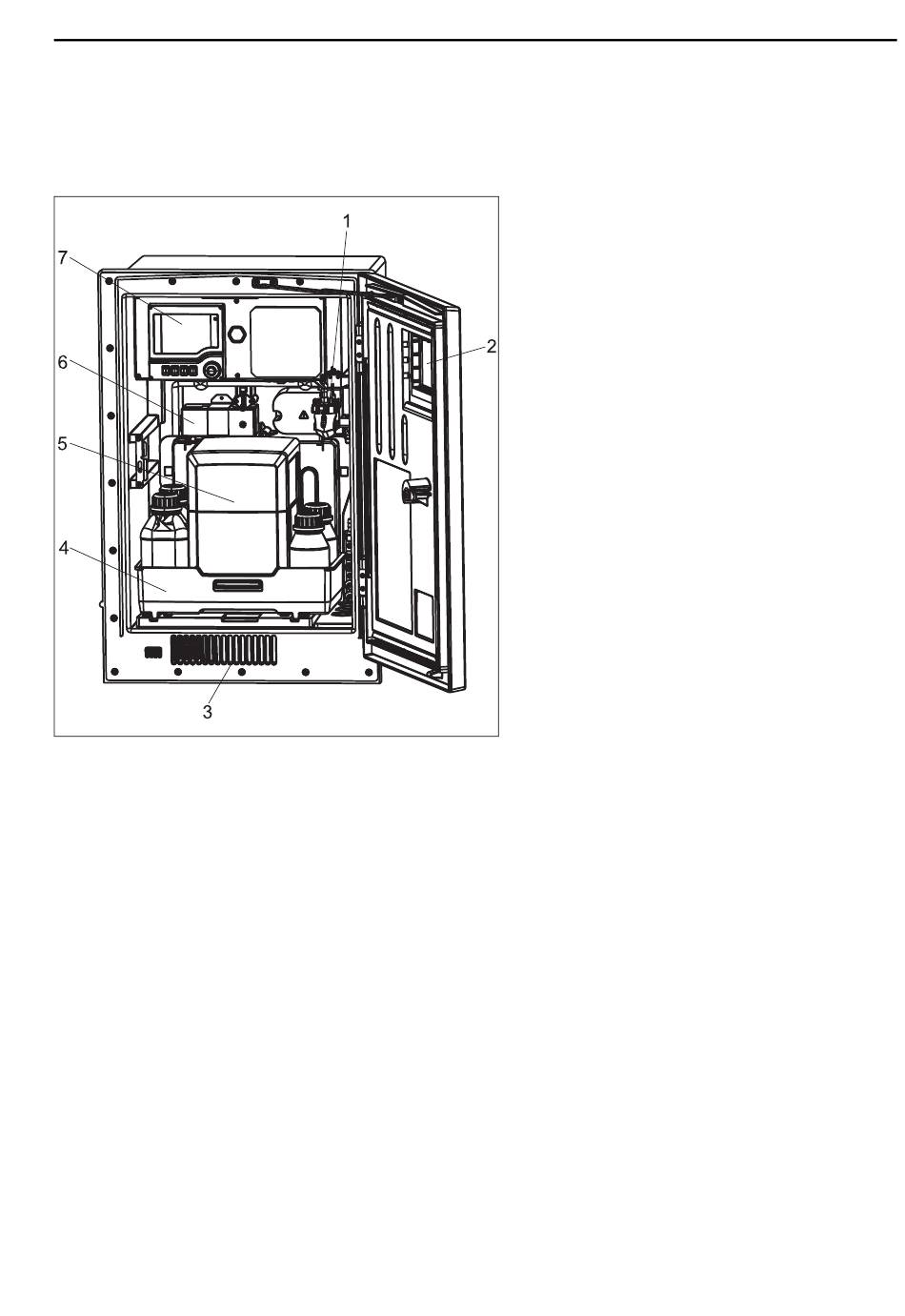

Fig. 1: Example of Liquiline System CA80 with cooling module
Endress+Hauser
1
Collecting vessel (optional)
2
Window
3
Air vent for cooling
4
Bottle tray for reagents, cleaner and standard
5
Reagent insulation box (optional)
6
Photometer
7
Controller
a0022320
Device description
9
