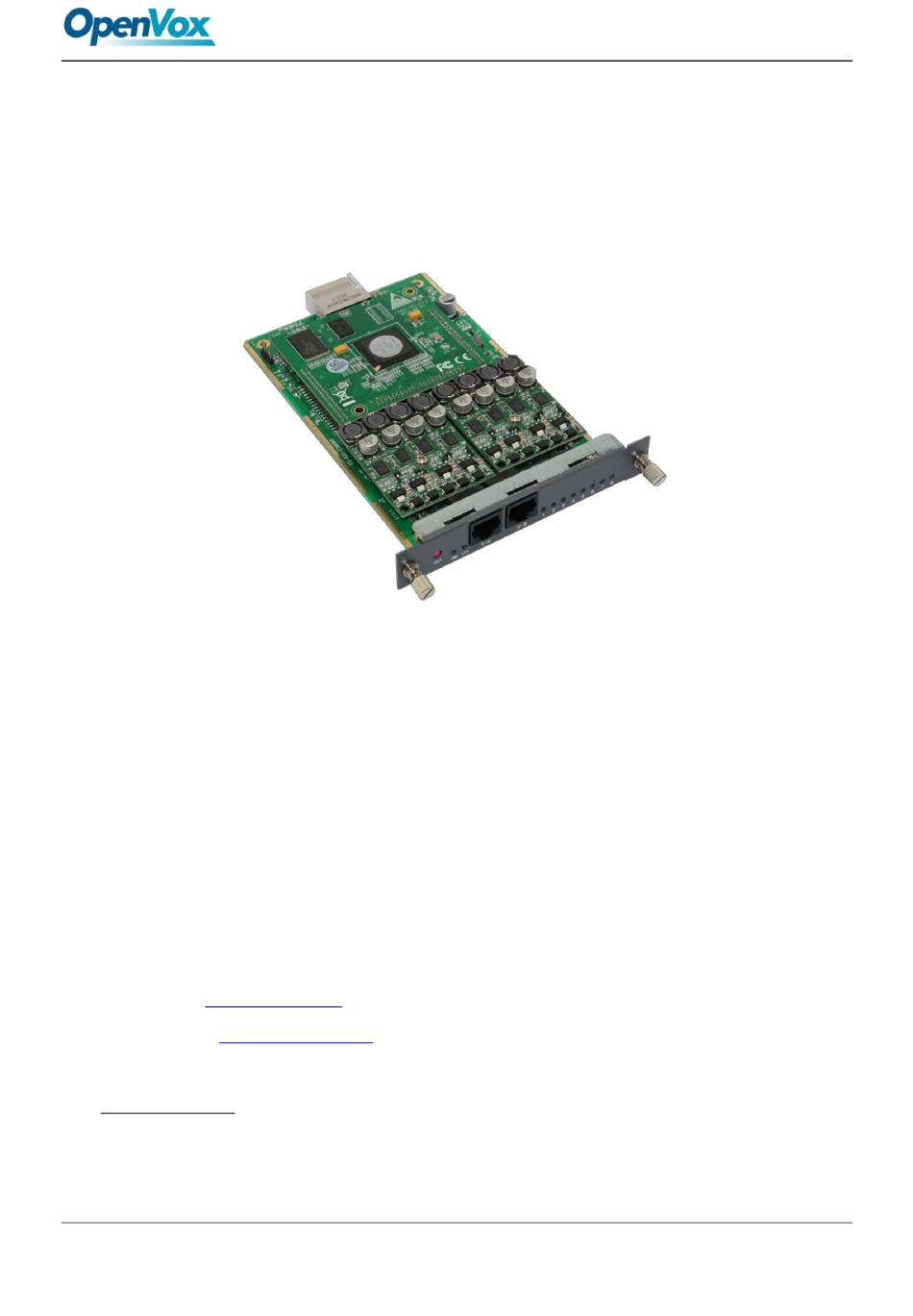

  • Page 1 VS-AGU-E1M800-S User Manual VS-AGU-E1M800-S User Manual Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978,82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn OpenVox Communication Co.Ltd...
  • Page 2 VS-AGU-E1M800-S User Manual Version1.0 (2016-12-12) OpenVox Communication Co.Ltd www.openvox.cn...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    VS-AGU-E1M800-S User Manual Table of Contents 1. Overview ..........................1 What is VS-AGU-E1M800-S Gateway? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 6 Status Time Login Settings General, Tools and Information Language Settings Scheduled Reboot Reboot Tools Information 3.
  • Page 5 VS-AGU-E1M800-S User Manual NAT Settings Advanced: NAT Settings Parsing and Compatibility Security Media 5. Network, Advanced and Logs ....................30 Network Network Settings VPN Settings DDNS Settings Toolkit Advanced Asterisk API Asterisk CLI Asterisk File Editor Logs OpenVox Communication Co.Ltd...

  • Page 6: Overview

    G.711A, G.711U, G.729, G.722, G.723, ILBC to quickly reduce communication expenses and maximize cost-savings. The VS-AGU-E1M800-S gateway use standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers, support most of the VoIP operating platforms such as Asterisk, Elastix, 3CX, FreeSWITCH , Broadsoft etc.

  • Page 7: Sample Application

    VS-AGU-E1M800-S User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of Analog Series Gateway. OpenVox Communication Co.Ltd URL:www.openvox.cn...

  • Page 8: Main Features

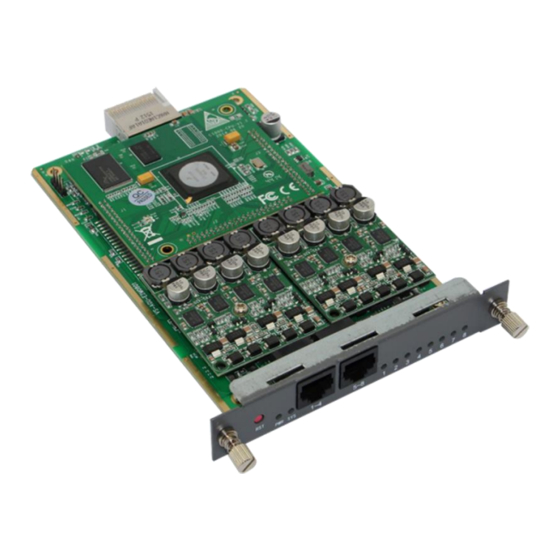

    VS-AGU-E1M800-S User Manual Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel Reset button 2 : Power Indicator 3: System LED 4 : Analog Telephone Interface (2) 5 : Power Indicator Main Features  Modular design  ○ Based on Asterisk OpenVox Communication Co.Ltd...

  • Page 9: Physical Information

    VS-AGU-E1M800-S User Manual  ○ Editable Asterisk configuration file  Support T.38 fax relay and T.30 fax transparent, can continually fax multiple page  Echo cancellation and Static jitter buffer  Wide selection of codecs and signaling protocol  DTMF relay ...
  • Page 10 VS-AGU-E1M800-S User Manual Figure 1-6-1 LOGIN Interface OpenVox Communication Co.Ltd URL:www.openvox.cn...

  • Page 11: System

    VS-AGU-E1M800-S User Manual 2. System Status On the “Status” page, you will see Port/SIP/Network information and status. Figure 2-1-1 System Status Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. The world time zone. Please select the one which is the same or Time Zone the closest as your city.

  • Page 12: Login Settings

    VS-AGU-E1M800-S User Manual NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Whether enable automatically synchronize from NTP server or not. ON is Auto-Sync from NTP enable, OFF is disable this function.

  • Page 13: General, Tools And Information

    VS-AGU-E1M800-S User Manual Table 2-3-1 Description of Login Settings Options Definition Define your username and password to manage your gateway, without space here. Allowed characters User Name "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Allowed characters "-_+. < >&0-9a-zA-Z". Password Length: 4-32 characters.

  • Page 14: Scheduled Reboot

    VS-AGU-E1M800-S User Manual Figure 2-4-1 Language Settings Scheduled Reboot If switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month and By Running Time”.
  • Page 15 VS-AGU-E1M800-S User Manual If you press “Yes”, your system will reboot and all current calls will be dropped. Asterisk Reboot is the same. Table 2-4-1 Instruction of reboots Options Definition This will turn off your gateway and then turn it back on. This System Reboot will drop all current calls.

  • Page 16: Information

    VS-AGU-E1M800-S User Manual Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-4-7 System Information OpenVox Communication Co.Ltd URL:www.openvox.cn...

  • Page 17: Analog

    VS-AGU-E1M800-S User Manual 3. Analog You can see much information about your ports on this page. Channel Settings Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. OpenVox Communication Co.Ltd...

  • Page 18: Dial Matching Table

    VS-AGU-E1M800-S User Manual Figure 3-1-2 Port Configure Dial Matching Table Dialing rules is used to effectively judge whether the received number sequence is complete, in OpenVox Communication Co.Ltd URL:www.openvox.cn...

  • Page 19: Advanced Settings

    VS-AGU-E1M800-S User Manual order to timely end receiving number and send out number The correct use of dial-up rules, helps to shorten the turn-on time of phone call Figure 3-2-1 Port Configure Advanced Settings Figure 3-3-1 General Configuration OpenVox Communication Co.Ltd...
  • Page 20 VS-AGU-E1M800-S User Manual Table 3-3-1 Instruction of General Options Definition How long generated tones (DTMF and MF) will be played on the Tone duration channel. (in milliseconds) Dial timeout Specifies the number of seconds we attempt to dial the specified devices.
  • Page 21 VS-AGU-E1M800-S User Manual Sending polarity Send polarity reversal before sending the CID on the channel. reversal(DTMF Only) Start code(DTMF Only) Start code. Stop code(DTMF Only) Stop code. Figure 3-3-3 Hardware Gain Table 3-3-3 Instruction of Hardware gain Options Definition Set the FXS port Rx gain. Range: -35, 0 or 35.
  • Page 22 VS-AGU-E1M800-S User Manual Figure 3-3-5 Country Configuration Table 3-3-5 Definition of Country Options Definition Country Configuration for location specific tone indications. Ring cadence List of durations the physical bell rings. Dial tone Set of tones to be played when one picks up the hook.

  • Page 23: Sip

    VS-AGU-E1M800-S User Manual 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button.
  • Page 24 VS-AGU-E1M800-S User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with OpenVox Communication Co.Ltd...
  • Page 25 VS-AGU-E1M800-S User Manual “None”, except name and password. Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition A name which is able to read by human. And it’s only used for user’s Name reference. Username User Name the endpoint will use to authenticate with the gateway.

  • Page 26: Advanced: Registration Options

    VS-AGU-E1M800-S User Manual This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is UDP, TCP, TLS. The first Transport enabled transport type is only used for outbound messages until a Registration takes place. During the peer Registration the transport type may change to another supported type if the peer requests so.

  • Page 27: Call Settings

    VS-AGU-E1M800-S User Manual Call Settings Table 4-1-3 Definition of Call Options Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Call Limit Setting a call-limit will cause calls above the limit not to be accepted.

  • Page 28: Advanced: Timer Settings

    VS-AGU-E1M800-S User Manual By default, the gateway will honor the session version number in SDP packets and will only modify the SDP session if the version number change. Turn this option off to force the gateway to ignore the SDP session Honor SDP Version version number and treat all SDP data as new data.

  • Page 29: Media Settings

    VS-AGU-E1M800-S User Manual Minimum Session Minimum session refresh interval in seconds. Default is 90secs. Refresh Interval Maximum Session Maximum session refresh interval in seconds. Defaults to 1800secs. Refresh Interval Session Refresher The session refresher, uac or uas. Defaults to uas.

  • Page 30: Advanced Sip Settings

    VS-AGU-E1M800-S User Manual Advanced SIP Settings Networking Table 4-3-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.
  • Page 31 VS-AGU-E1M800-S User Manual Table 4-3-2 Definition of NAT Settings Options Definition Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. Local Network This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints.
  • Page 32 VS-AGU-E1M800-S User Manual Parsing and Compatibility Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Check header tags, character conversion in URIs, and multiline headers Strict RFC for strict SIP compatibility(default is yes) Interpretation Send Compact Send compact SIP headers...
  • Page 33 VS-AGU-E1M800-S User Manual Security Table 4-3-5 Instruction of Security Options Definition Match Auth If available, match user entry using the 'username' field from the Username authentication line instead of the 'from' field. Realm Realm for digest authentication. Realms MUST be globally unique according to RFC 3261.
  • Page 34 VS-AGU-E1M800-S User Manual Media Table 4-3-6 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...
  • Page 35 VS-AGU-E1M800-S User Manual 5. Network, Advanced and Logs Network On “Network” page, there are “Network Settings”, “VPN Setting”, “DDNS Settings”, and “Toolkit”. Network Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1.
  • Page 36 VS-AGU-E1M800-S User Manual Table 5-1-1 Definition of Network Settings Definition Options Interface The name of network interface. Type The method to get IP. Factory: Getting IP address by Slot Number (System  information to check slot number). Static: manually set up your gateway IP.
  • Page 37 VS-AGU-E1M800-S User Manual Table 5-1-2 Definition of DNS Settings Options Definition DNS Servers A list of DNS IP address. Basically this info is from your local network service provider. VPN Settings You can upload the OpenVPN client configuration, if success, you can see a VPN virtual network card on SYSTEM status page.
  • Page 38 VS-AGU-E1M800-S User Manual DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 5-1-5 DDNS Interface Table 5-1-3 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name server) Type Set the type of DDNS server.
  • Page 39 VS-AGU-E1M800-S User Manual Figure 5-1-6 Network Connectivity Checking Advanced Asterisk API When you make “Enable” switch to “on”, this page is available. Figure 5-2-1 API Interface OpenVox Communication Co.Ltd URL:www.openvox.cn...
  • Page 40 VS-AGU-E1M800-S User Manual Table 5-2-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager. Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. Deny If you want to deny many hosts or networks, use char & as separator.
  • Page 41 VS-AGU-E1M800-S User Manual Figure 5-2-2 Putty Access Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 5-2-3 Asterisk Command Interface Table 5-2-2 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway.
  • Page 42 VS-AGU-E1M800-S User Manual Asterisk File Editor On this page, you are allowed to edit and create configuration files. Click the file to edit. Figure 5-2-4 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk.
  • Page 43 VS-AGU-E1M800-S User Manual Figure 5-3-2 System Logs Output Notice: The same to Asterisk Logs and SIP Logs. Table 5-3-1 Definition of LOG Options Definition System Logs Whether enable or disable system log. Auto clean switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file.
  • Page 44 New logs will be retained. switch off : logs will remain, and the file size will increase gradually. default on, default size=100KB. Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd URL:www.openvox.cn...
