Hatco GLO-RAY GRSSR20-DL Series Installation & Operating Manual

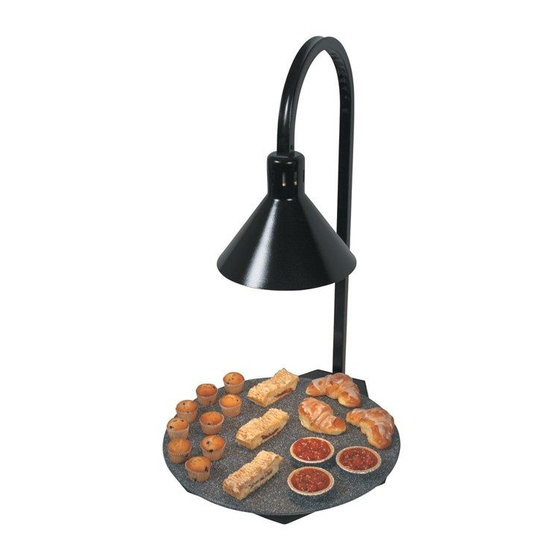

Round heated stone shelf with display lamp
Hide thumbs
Also See for GLO-RAY GRSSR20-DL Series:
- Installation and operating manual (20 pages) ,
- Brochure & specs (2 pages)
Table of Contents
Advertisement
Quick Links
Round Heated Stone Shelf
GRSSR20-DL & GRSSR20-DLH
Installation & Operating Manual
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in
this manual may result in serious injury. If you're unable
to understand the contents of this manual, please bring
it to the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
GLO-RAY
with Display Lamp
Series
I&W #07.05.179.00
®
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por favor
pregunte a su supervisor. No opere este equipo al
menos que haya leído y comprendido el contenido de
este manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco GLO-RAY GRSSR20-DL Series
Summary of Contents for Hatco GLO-RAY GRSSR20-DL Series
- Page 1 Round Heated Stone Shelf with Display Lamp GRSSR20-DL & GRSSR20-DLH Installation & Operating Manual This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents
Heat is focused directly above and below, providing effective insulation for prolonged serving times. Hatco foodwarmers are quality built to meet the demands of foodservice operations and provide years of trouble-free performance. This manual provides the installation, safety and operating instructions for the Glo-Ray Round Heated Stone Shelf with Display Lamp. -
Page 3: Important Safety Information
27" (686 mm) above a flammable surface. If safe discoloration or combustion could occur. For safe and proper operation, do not install a 375 watt bulb into a GRSSR20-DL standard watt unit. If service is required on this unit, contact your Authorized Hatco Service Agent, or contact the Hatco Service Department at 800-558-0607 or 414-671-6350;... - Page 4 CAUTIONS Damage to the countertop material caused by heat generated from Hatco equipment is not covered under the Hatco Warranty. Contact the manufacturer of the base material for application information.
-
Page 5: Model Description
Glo-Ray Stone Shelf Round Shelf Diameter – Inches MODEL DESCRIPTION controlled Figure 1. Model GRSSR20-DL MODEL DESIGNATION GR SS R 20 - DL H 775 16 Distance between Upper Lamp and Heated Base Figure 2. Model Designation Shade Style... -
Page 6: Specifications
Plug Configuration Shipping Weight 40 lbs. NEMA 5-15P (18 kg) 40 lbs. NEMA 5-15P (18 kg) NEMA 5-15P Figure 3. Plug Configuration Receptacle not supplied by Hatco. 16" (406 mm) Standard Watt 27" (686 mm) High Watt 2-5/8" (65 mm) -
Page 7: Installation
UNPACKING ® The Glo-Ray Round Heated Stone Shelf with Display Lamp is shipped pre-assembled and ready for operation. Care should be taken when unpacking shipping carton to avoid damage to unit and components enclosed. WARNING To prevent any injury or damage to the unit do not pull unit by power cord. -
Page 8: Operation
OPERATION WARNING Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine the proper voltage and size and install the proper electrical outlet. CAUTION Some exterior surfaces on the unit will get hot. -
Page 9: Maintenance
Some aftermarket or generic replacement characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. -
Page 10: Heat Bulb Replacement
Form No. GRSSRDLM-0607 The following replacement bulbs are available from the factory or Hatco Authorized Parts Distributor. DL (standard wattage) 250 Watt 120V Red Coated 250 Watt 120V Clear Coated... -
Page 11: Accessories
ACCESSORIES CUTTING BOARD/CARVING STATION Made of NSF Approved food safe materials. Installation Cutting board comes with rubber feet on bottom to fit right on top of base. Material Made of same material as Swanstone ® base. Colors Available in the same colors as the base, Gray Granite, Bermuda Sand, Night Sky and Sawgrass. -
Page 12: Troubleshooting
TROUBLESHOOTING WARNING To avoid any injury or damage, the Heated Stone Shelf must only be serviced by qualified personnel. SYMPTOM Unit too hot. Unit not hot enough. Upper infrared heat bulb does not light. Bulb is defective. Unit not working at all. Form No. -
Page 13: Hatco Limited Warranty
2. LIMITATION OF REMEDIES AND DAMAGES Hatco’s liability and Buyer’s exclusive remedy hereunder will be limited solely, at Hatco’s option, to repair or replacement by a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom or Australia in which case Hatco’s liability and Buyer’s... - Page 14 NOTES: Form No. GRSSRDLM-0607...
-
Page 16: Authorized Parts Distributors
HATCO AUTHORIZED PARTS DISTRIBUTORS ALABAMA IOWA Jones McLeod Appl. Svc. Electric Motor Service Co. Birmingham 205-251-0159 Davenport Goodwin Tucker Group ARIZONA Des Moines Auth. Comm. Food Equip. Phoenix 602-234-2443 KENTUCKY Byassee Equipment Co. Certified Service Center Phoenix 602-252-0402 Lexington Certified Service Center...
