GLO-RAY

Heated Shelves

GRS Series

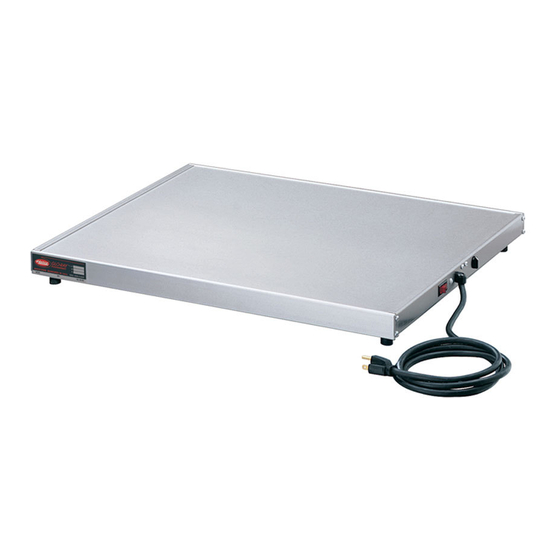

GRS-18

GRS-24

GRS-30

GRS-36

GRS-42

REPLACEMENT

PARTS LIST

GRS-48

GRS-54

GRS-60

GRS-66

GRS-72

Need help?

Do you have a question about the Glo-Ray GRS-18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hatco Glo-Ray GRS-18

Page 1 GLO-RAY Heated Shelves GRS Series GRS-18 GRS-24 GRS-30 GRS-36 GRS-42 REPLACEMENT PARTS LIST ® GRS-48 GRS-54 GRS-60 GRS-66 GRS-72...
Page 2 HATCO GLO-RAY HEATED SHELVES ® GRS SERIES CAUTION - Use of replacement parts other than those supplied by Hatco Corporation may result in damage to the unit or injury to personnel. Form No. GRSRP-0102 Model Designation GRS-X-X G =Glo R =Ray...
Page 3 ITEM DESCRIPTION Thermostat, Surface Mount † 1B Thermostat with Capillary bulb R02.16.066.00 Thermostat Knob for 1B Temperature Label Heated shelves manufactured before November 1993 use thermostat item 1A. † Heated shelves manufactured on or after November 1993 use thermostat item 1B. PARTS SPECIFIC TO ALL MODELS ITEM DESCRIPTION...
Page 4 Heating Element(s) Specific to Models GRS-18 ITEM DESCRIPTION GRS-18-A Front–100 Watt Center GRS-18-B Front–100 Watt Center GRS-18-C Front–125 Watt Center GRS-18-D Front–100 Watt Center Rear–100 Watt GRS-18-E Front–100 Watt Center Rear–100 Watt GRS-18-F Front–100 Watt Center Rear–100 Watt GRS-18-G Front–100 Watt Center Rear–125 Watt...
Page 5 Heating Element(s) Specific to Models GRS-24 ITEM DESCRIPTION GRS-24-A Front–125 Watt GRS-24-B Front–125 Watt GRS-24-C Front–175 Watt GRS-24-D Front–125 Watt Rear–125 Watt GRS-24-E Front–125 Watt Rear–125 Watt GRS-24-F Front–125 Watt Rear–125 Watt GRS-24-G Front–125 Watt Rear–175 Watt GRS-24-H Front–125 Watt Rear–175 Watt GRS-24-I Front–175 Watt...
Page 6 Heating Element(s) Specific to Models GRS-30 ITEM DESCRIPTION GRS-30-A Front–150 Watt Center GRS-30-B Front–150 Watt Center GRS-30-C Front–225 Watt Center GRS-30-D Front–150 Watt Center Rear–150 Watt GRS-30-E Front–150 Watt Center Rear–150 Watt GRS-30-F Front–150 Watt Center Rear–150 Watt GRS-30-G Front–150 Watt Center Rear–225 Watt GRS-30-H...
Page 7 Heating Element(s) Specific to Models GRS-36 ITEM DESCRIPTION GRS-36-A Front–175 Watt Center GRS-36-B Front–175 Watt Center GRS-36-C Front–275 Watt Center GRS-36-D Front–175 Watt Center Rear–175 Watt GRS-36-E Front–175 Watt Center Rear–175 Watt GRS-36-F Front–175 Watt Center Rear–175 Watt GRS-36-G Front–175 Watt Center Rear–275 Watt GRS-36-H...
Page 8 Heating Element(s) Specific to Models GRS-42 ITEM DESCRIPTION GRS-42-A Front–100 Watt Front–125 Watt Rear GRS-42-B Front–100 Watt Front–125 Watt Rear GRS-42-C Front–125 Watt Front–175 Watt Rear GRS-42-D Front–100 Watt Front–125 Watt Center Rear–100 Watt Rear–125 Watt GRS-42-E Front–100 Watt Front–125 Watt Center Rear–100 Watt Rear–125 Watt...
Page 9 Heating Element(s) Specific to Models GRS-42 ITEM DESCRIPTION GRS-42-I Front–125 Watt Front–175 Watt Center Rear–125 Watt Rear–175 Watt GRS-42-J Front–100 Watt Front–125 Watt Center–100 Watt Center–125 Watt Rear–100 Watt Rear–125 Watt GRS-42-K Front–100 Watt Front–125 Watt Center–100 Watt Center–125 Watt Rear–125 Watt Rear–175 Watt GRS-42-L...
Page 10 Heating Element(s) Specific to Models GRS-48 ITEM DESCRIPTION GRS-48-A Front (Qty. 2)–125 Watt GRS-48-B Front (Qty. 2)–125 Watt GRS-48-C Front (Qty. 2)–175 Watt GRS-48-D Front (Qty. 2)–125 Watt Rear (Qty. 2)–125 Watt GRS-48-E Front (Qty. 2)–125 Watt Rear (Qty. 2)–125 Watt GRS-48-F Front–125 Watt Rear–125 Watt...
Page 11 Heating Element(s) Specific to Models GRS-54 ITEM DESCRIPTION GRS-54-A Front–125 Watt Front–150 Watt Center GRS-54-B Front–125 Watt Front–150 Watt Center GRS-54-C Front–175 Watt Front–225 Watt Center GRS-54-D Front–125 Watt Front–150 Watt Center Rear–125 Watt Rear–150 Watt GRS-54-E Front–125 Watt Front–150 Watt Center Rear–125 Watt Rear–150 Watt...
Page 12 Heating Element(s) Specific to Models GRS-54 ITEM DESCRIPTION GRS-54-H Front–125 Watt Front–150 Watt Center Rear–175 Watt Rear–225 Watt GRS-54-I Front–175 Watt Front–225 Watt Center Rear–175 Watt Rear–225 Watt GRS-54-J Front–125 Watt Front–150 Watt Center–125 Watt Center–150 Watt Rear–125 Watt Rear–150 Watt GRS-54-K Front–125 Watt Front–150 Watt...
Page 13 Heating Element(s) Specific to Models GRS-60 ITEM DESCRIPTION 13 GRS-60-A Front (Qty. 2)–150 Watt GRS-60-B Front (Qty. 2)–150 Watt GRS-60-C Front (Qty. 2)–225 Watt GRS-60-D Front (Qty. 2)–150 Watt Rear (Qty. 2)–150 Watt GRS-60-E Front (Qty. 2)–150 Watt Rear (Qty. 2)–150 Watt GRS-60-F Front (Qty.
Page 14 Heating Element(s) Specific to Models GRS-66 ITEM DESCRIPTION GRS-66-A Front–150 Watt Front–175 Watt Center Rear GRS-66-B Front–150 Watt Front–175 Watt Center Rear GRS-66-C Front–225 Watt Front–275 Watt Center Rear GRS-66-D Front–150 Watt Front–175 Watt Center Rear–150 Watt Rear–175 Watt GRS-66-E Front–150 Watt Front–175 Watt Center...
Page 15 Heating Element(s) Specific to Models GRS-66 ITEM DESCRIPTION GRS-66-H Front–150 Watt Front–175 Watt Center Rear–225 Watt Rear–275 Watt GRS-66-I Front–225 Watt Front–275 Watt Center Rear–225 Watt Rear–275 Watt GRS-66-J Front–150 Watt Front–175 Watt Center–150 Watt Center–175 Watt Rear–150 Watt Rear–175 Watt GRS-66-K Front–150 Watt Front–175 Watt...
Page 16 Heating Element(s) Specific to Models GRS-72 ITEM DESCRIPTION GRS-72-A Front (Qty. 2)–175 Watt GRS-72-B Front (Qty. 2)–175 Watt GRS-72-C Front (Qty. 2)–275 Watt GRS-72-D Front (Qty. 2)–175 Watt Rear (Qty. 2)–175 Watt GRS-72-E Front (Qty. 2)–175 Watt Rear (Qty. 2)–175 Watt GRS-72-F Front (Qty.
Page 17 NOTES Form No. GRSRP-0102 Printed in U.S.A.
Page 18 NOTES Form No. GRSRP-0102 Printed in U.S.A.
Page 19 NOTES Form No. GRSRP-0102 Printed in U.S.A.
Page 20 HATCO AUTHORIZED PARTS DISTRIBUTORS ALABAMA Jones McLeod Appl. Svc. Birmingham 205-251-0159 ARIZONA Auth. Comm. Food Equip. Phoenix 602-234-2443 Byassee Equipment Co. Phoenix 602-252-0402 CALIFORNIA Industrial Electric Huntington Beach 714-379-7100 Chapman Appl. Service San Diego 619-298-7106 P & D Appliance S. San Francisco...
