GRS, GRSB, and GRSBF Series
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
GLO-RAy

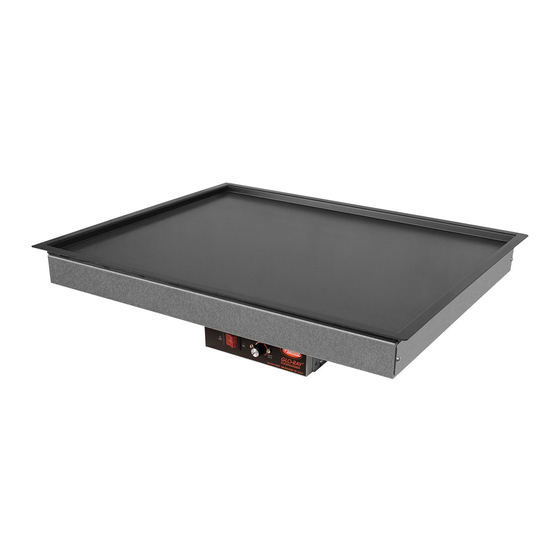

Heated Shelf
P/N 07.04.288.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
®
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manual
contiene
manuel
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
à votre supérieur. Conservez ce manuel
pregunte
a
su
dans un endroit sûr pour pouvoir vous y
référer plus tard.
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2011 Hatco Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco GRS Series
Summary of Contents for Hatco GRS Series
- Page 1 à votre supérieur. Conservez ce manuel manual favor pregunte manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. una localización segura para la referencia référer plus tard. futura. © 2011 Hatco Corporation...
-
Page 2: Table Of Contents
INTRODUCTION Hatco Glo-Ray Heated Shelves are designed to keep prepared Safety information that appears in this manual is identified by foods hot in kitchen work areas, server pick-up stations, or the following signal word panels: customer serving points. -
Page 3: Important Safety Information
This unit has no “user-serviceable” parts. If service is • Plug unit into a properly grounded electrical receptacle required on this unit, contact an Authorized Hatco Service of the correct voltage, size, and plug configuration. If Agent or contact the Hatco Service Department at plug and receptacle do not match, contact a qualified 800-558-0607 or 414-671-6350;... -
Page 4: Model Descriptions
MODEL DESCRIPTION GRS Model GRSB and GRSBF Models The GRS Heated Shelf is ideal for pass-through areas, buffet The GRSB and GRSBF Built-In Heated Shelves have a lines, or as a heated work shelf. It features an Power On/Off hardcoat aluminum surface and a blanket-type foil element for rocker switch with indicator light, an adjustable thermostat uniform heat distribution. -
Page 5: Specifications
GRSB and GRSBF models. See label for serial number and verification of unit electrical information. CEE 7/7 Schuko BS-1363 Figure 4. Plug Configurations Note: Receptacle not supplied by Hatco. Dimensions — GRS Models Footprint Footprint Model Width (A) -
Page 6: Dimensions - Grsb Models
SPECIFICATIONS Dimensions — GRSB Models Overall Heated Control Box Heated Overall Control Box Model Width (A) Width (B) Width (C) Depth (D) Depth (E) Height (F) Height (G) GRSB-24-F 25-1/2″ (648 mm) 24″ (610 mm) 7-1/4″ (184 mm) 15-1/2″ (394 mm) 17″... -
Page 7: Dimensions - Grsbf Models
SPECIFICATIONS Dimensions — GRSBF Models Heated Control Box Heated Control Box Model Width (A) Width (B) Width (C) Depth (D) Depth (E) Height (F) Height (G) GRSBF-18-F 19-1/2″ (495 mm) 18-3/32″ (460 mm) 7-1/4″ (184 mm) 15-1/2″ (394 mm) 17″ (432 mm) 2-1/4″... -
Page 8: Electrical Rating Chart - Grs Models
SPECIFICATIONS Electrical Rating Chart — Standard GRS Models Model† Voltage Watts Amps Plug Configuration Shipping Weight GRS-18-I NEma 5-15P 16 lbs. (7 kg) NEma 5-15P 16 lbs. (7 kg) CEE 7/7 Schuko 16 lbs. (7 kg) BS-1363 16 lbs. (7 kg) 220–230 (CE) 228-250 1.0-1.1... -
Page 9: Electrical Rating Chart - Grsb Models
SPECIFICATIONS Electrical Rating Chart — Standard GRSB Models Model Voltage Watts Amps Plug Configuration Shipping Weight GRSB-24-F NEma 5-15P 20 lbs. (9 kg) CEE 7/7 Schuko 20 lbs. (9 kg) BS-1363 20 lbs. (9 kg) GRSB-24-I NEma 5-15P 22 lbs. (10 kg) NEma 5-15P 22 lbs. - Page 10 SPECIFICATIONS Electrical Rating Chart — Standard GRSB Models Model Voltage Watts Amps Plug Configuration Shipping Weight GRSB-48-F NEma 5-15P 33 lbs. (15 kg) CEE 7/7 Schuko 33 lbs. (15 kg) BS-1363 33 lbs. (15 kg) GRSB-48-I 1000 10.0 NEma 5-15P 36 lbs.
-
Page 11: Electrical Rating Chart - Grsbf Models
SPECIFICATIONS Electrical Rating Chart — Standard GRSBF Models Model Voltage Watts Amps Plug Configuration Shipping Weight GRSBF-18-F NEma 5-15P 15 lbs. (7 kg) GRSBF-24-F NEma 5-15P 20 lbs. (9 kg) GRSBF-24-I NEma 5-15P 22 lbs. (10 kg) NEma 5-15P 22 lbs. (10 kg) GRSBF-24-S NEma 5-15P 24 lbs. -
Page 12: Installation
SPECIFICATIONS Electrical Rating Chart — Standard GRSBF Models Model Voltage Watts Amps Plug Configuration Shipping Weight GRSBF-60-F NEma 5-15P 45 lbs. (20 kg) GRSBF-60-I 1220 12.2 NEma 5-15P 50 lbs. (23 kg) 1220 10.2 NEma 5-15P 50 lbs. (23 kg) GRSBF-60-S 1500 12.5... -
Page 13: Grsb And Grsbf Models
Unit is designed and recommended for use in or on is mounted. metallic countertops. Damage to any countertop material is not covered under the Hatco warranty. For other NOTICE surfaces, verify with manufacturer that material is suitable for prolonged temperatures up to 200°F (93°C). - Page 14 INSTALLATION Apply a bead of NSF-approved sealant between the countertop and the mounting flange on the unit. Sealant Metallic must be rated for use at a minimum temperature of 250° F (121° C). Countertop Z-Bracket Bracket Screw Mounting Screw Figure 10. GRSB model Installation Countertop Cutout —...
- Page 15 INSTALLATION Apply a bead of NSF-approved sealant between the countertop and the unit. Sealant must be rated for Metallic use at a minimum temperature of 250° F (121° C). Countertop Z-Bracket Bracket Screw Mounting Screw Figure 11. GRSBF model Installation Countertop Cutout —...
-
Page 16: Operation
MAINTENANCE General WARNING Hatco Glo-Ray Heated Shelf units are designed for maximum durability and performance with minimum maintenance. This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at WARNING 800-558-0607 or 414-671-6350;... -
Page 17: Troubleshooting Guide
Thermostat control set too high. adjust thermostat control to a lower setting. Thermostat control stuck in the “on” Contact authorized Service agent or Hatco for position. assistance. Unit plugged into an incorrect power supply. Verify with qualified personnel that power supply matches unit specification. - Page 18 Cutting thermostat capillary wire will cause unit to overheat and may damage unit as well as surrounding HATCO CORP. MILWAUKEE, WI U.S.A. countertop. Note: A qualified electrician is recommended for connecting the units to a power source.
-
Page 19: Limited Warranty
One (1) year Parts and Labor PLUS Four (4) years context of this Limited Warranty, “refurbished” means a part or Product Parts-Only Warranty on pro-rated terms that Hatco that has been returned to its original specifications by Hatco or a Hatco- will explain at Buyer’s request: authorized service agency. -
Page 20: Authorized Parts Distributors
HATCO AUTHORIzED PARTS DISTRIBUTORS ALABAMA IOWA NEW yORK TEXAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...
