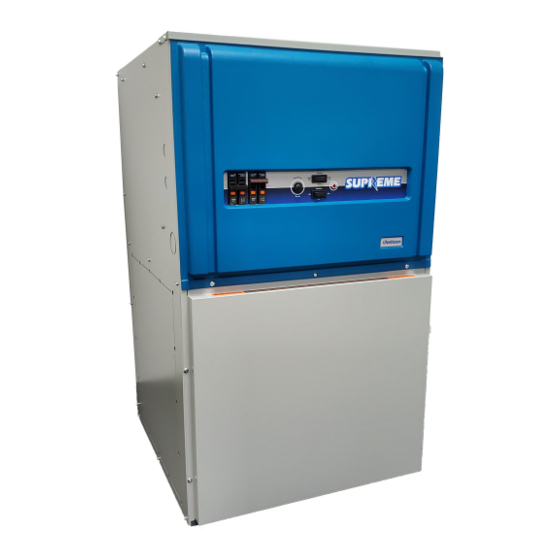

INSTALLATION INSTRUCTIONS AND HOMEOWNER'S
COMFORT & ADVANTAGE
MULTI-POSITION
INSTALLER / SERVICE TECHNICIAN:
USE THE INFORMATION IN THIS MANUAL FOR THE
INSTALLATION AND SERVICING OF THE FURNACE AND
KEEP THE DOCUMENT NEAR THE UNIT FOR FUTURE
REFERENCE.
HOMEOWNER:
PLEASE KEEP THIS MANUAL NEAR THE FURNACE FOR
FUTURE REFERENCE.
Printed in Canada on
100% recycled paper
MANUAL: ELECTRIC FURNACE
(PSC MOTOR)
2022-03-25
Models:
C
OMFORT
SUPXX-C120D12
SUPXX-C240D12
SUPXX-C120D20
SUPXX-C240D20
A
DVANTAGE
SUPXX-A120D12
SUPXX-A240D12
SUPXX-A120D20
SUPXX-A240D20
SUPXX-A2403D12
SUPXX-A2403D20
Attention:
Do not tamper with the unit or its controls.
Call a qualified service technician.
Manufactured by: Dettson Industries Inc.
Sherbrooke,
Qc,
Canada
www.dettson.com
X40232 Rev.M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dettson SUPXX-C120D12
Summary of Contents for Dettson SUPXX-C120D12
- Page 1 Do not tamper with the unit or its controls. KEEP THE DOCUMENT NEAR THE UNIT FOR FUTURE Call a qualified service technician. REFERENCE. HOMEOWNER: Manufactured by: Dettson Industries Inc. PLEASE KEEP THIS MANUAL NEAR THE FURNACE FOR Sherbrooke, Canada FUTURE REFERENCE.
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS NOTES Table of content List of figures SAFETY 1.1 DANGER, WARNING AND CAUTION ....Figure 1: Upflow Configuration ....Figure 2: Downflow Configuration . -
Page 3: Safety
WARNING Installation and repairs performed by unqualified persons can result in hazards to them and to SAFETY others. Installations must conform to local codes or, in the absence of such codes, to codes of the country having jurisdiction. The information contained in this manual is intended for use by a qualified technician, familiar with safety procedures and who is equipped with 1.1 DANGER, WARNING AND... -
Page 4: Danger Of Freezing
2.1 POSITIONING THE FURNACE IMPORTANT local national code requirements governing the installation of central electric heating equipment, wiring and the flue WARNING connection MUST be followed. Some of the codes that may apply are: FIRE AND EXPLOSION HAZARD ANSI/NFPA 70: National Electrical Code CSA The furnace must be installed in a level position, C22.1 or CSA C22.10: Canadian Electrical Code... -
Page 5: Downflow Installation
2.3.4 Suspended installation The furnace can be hanged to the ceiling in either Figure 1: Upflow Configuration upflow, downflow or horizontal. Make sure to mount it appropriately and to respect the clearances to combustible material. WARNING The furnace must be properly secured especially when installed above living space. -
Page 6: 208V Power Supply
Figure 5: 1-stage thermostat, electric heating only WARNING ISK OF FIRE When using one terminal block on models of 25kW and higher, the installation must be performed with copper wire ONLY in order to comply with the Canadian electrical code. The usage of an aluminum or copper wire is acceptable on models 25kW and lower. -
Page 7: Anticipator Adjustment (If Required) On Thermostat Equipped With Heat Anticipator Adjustment
2.5.2 Air ducts The ducts must be sized such a way as to accommodate Figure 8: 1-stage thermostat, electric heating and air the specified airflow and the available static pressure. conditionning Refer to the applicable local and/or national installation codes. Insulate the ducts that lead through non-heated areas. -
Page 8: Installation Of Accessories
the furnace and the heat pump. The simultaneous operation of the electric elements and Table 1: Supply air adjustment on cooling mode the heat pump will cause overheating of either unit. MOTOR COOLING BLOWER BLOWER The safety controls of the appliances will shut down the CAPACITY SPEED SPEED... -
Page 9: Operating Sequence
c) Supply air temperature. The point of the reading must not be affected by radiant heat from the elements; d) Return air temperature. From these readings, one can arrive at an approximate calculation of the average airflow. To do that, the following formula should be used: 0 82 amps. -
Page 10: Maintenance
the warm air temperature exceeds 200°F (93°C). Before calling for repair service, check the following Remove the obstruction and the elements should restart points: after a few minutes. 1. Check fuses or the circuit breakers; 2. Check if the 15 A circuit breaker on the furnace is disengaged;... -
Page 11: Table 2: Technical Specifications (120V)
6 TECHNICAL SPECIFICATIONS Table 2: Technical specifications (120V) RATING AND SUPxx-x120D12 SUPxx-x120D20 PERFORMANCE Motor 1/3 HP / 120V Motor 1 HP / 120V Capacity Power, total @ 240V / 208V (Kw) 10 / 7.5 15 / 11.3 18 / 13.5 20 /15 23 / 17.3 25 / 18.8... -
Page 12: Table 3: Technical Specifications(240V)
Table 3: Technical specifications(240V) RATING AND SUPxx-x240D12 SUPxx-x240D20 PERFORMANCE Motor 1/3 HP / 240V Motor 1 HP / 240V Capacity Power, total @ 240V / 208V (Kw) 10 / 7.5 15 / 11.3 18 / 13.5 20 /15 23 / 17.3 25 / 18.8 20 /15 23 / 17.3 25 / 18.8 27 / 20.3 30 / 22.5... -
Page 13: Table 4: Technical Specifications(240V 3 Phases)
Table 4: Technical specifications(240V 3 phases) RATING AND SUPxx-A2403D12 SUPxx-A2403D20 PERFORMANCE Motor 1/3 HP / 240V Motor 1 HP / 240V Capacity Power, total @ 240V / 208V (Kw) 24 / 18 30 / 22.5 Power, first stage @ 240V / 208V (Kw) 15 / 9 15 / 11.3 Net capacity @ 240V (BTU/h) / 208V... -
Page 14: Table 5: Airflow (Cfm) - Supreme With 1/3 Hp Motor
Table 5: Airflow (CFM) - SUPREME with 1/3 HP motor Furnace equipped with a 1/3 HP / 120 blower motor Blower External static pressure (inche of W.C.) Speed MED-LOW MED-HIGH 1 025 1 010 HIGH 1 260 1 240 1 200 1 150 1 110 1 055... -
Page 15: Figure 11: Comfort Dimensions
REVISIONS REV. DESCRIPTION DATE Figure 11: Comfort Dimensions 559mm 22" 25mm 1" SUPPLY ALIMENTATION 25mm 1" Identical on the 2 sides 559mm Identique sur les 2 cotés 22" 927mm 508mm x 508mm 36 1/2" 20" x 20" Identical on the 2 sides, the back and below. -
Page 16: Figure 13: Électrical Diagram, Supreme Comfort Psc
Figure 13: Électrical diagram, Supreme Comfort PSC... -
Page 17: Figure 14: Électrical Diagram, Supreme Advantage Psc
Figure 14: Électrical diagram, Supreme Advantage PSC... -
Page 18: Figure 15: Électrical Diagram, Supreme Advantage Psc
Figure 15: Électrical diagram, Supreme Advantage PSC, 3 phases... -
Page 19: Figure 16: Parts List, Supreme
Figure 16: Parts list, S Comfort PSC UPREME... -
Page 20: Table 8: Parts List, Supreme
Table 8: Parts list, S Comfort PSC UPREME Item Description Comments B04343-03 Left side panel assembly B04344-01 Back panel assembly B04343-01 Right side panel assembly B04302-02 Top front panel L01J006 Breaker 60 A K03071-A Sequencer card assembly Card and plastic pins B04311 Components support L01J001... -
Page 21: Figure 17: Parts List, Supreme
Figure 17: Parts list, S Advantage PSC UPREME... -
Page 22: Upreme Upreme
Table 9: Parts list, S Advantage PSC UPREME Item Description Comments B04343-04 Left side panel assembly Left panel, items 3 and 1 included B04344-02 Back panel assembly B04343-02 Right side panel assembly Right panel, items 7 and 1 included B04302-01 Top front panel L01J006 Breaker 60 A... - Page 23 7 NOTES...
