Topcon RC-5 Quick Start Manual

Performing reset

RC-5 - Performing Reset

Why reset the RC-5?

In the event that the Topcon RC-5 remote will not pair with a total station or Bluetooth communication

is problamatic, reseting the RC-5 initializes the Bluetooth module, returns all parameters to default and

resets pairing. The serial number and Bluetooth module power settings remain unchanged.

RC-5 to be reset with a charged battery.

While holding the FAR button and the SEARCH button, press the POWER button to switch the RC-

5 on. Release the POWER button and continue holding the FAR and SEARCH buttons for about 10

seconds until the beep sounds 3 times. Then release both buttons.

Press and hold the FAR button for about 10 seconds. When the beep sounds several times release

the button. The two com LEDs will be lit and the FAR and SEARCH LEDs will blink while the RC

TopconTotalCare.com

Keywords

PS Series, RC-5, DS Series, SX Series, bluetooth,

DX Series, Pairing, reset

Table of Contents

Do you have a question about the RC-5 and is the answer not in the manual?

Page 1 Keywords Why reset the RC-5? In the event that the Topcon RC-5 remote will not pair with a total station or Bluetooth communication PS Series, RC-5, DS Series, SX Series, bluetooth, is problamatic, reseting the RC-5 initializes the Bluetooth module, returns all parameters to default and DX Series, Pairing, reset resets pairing.

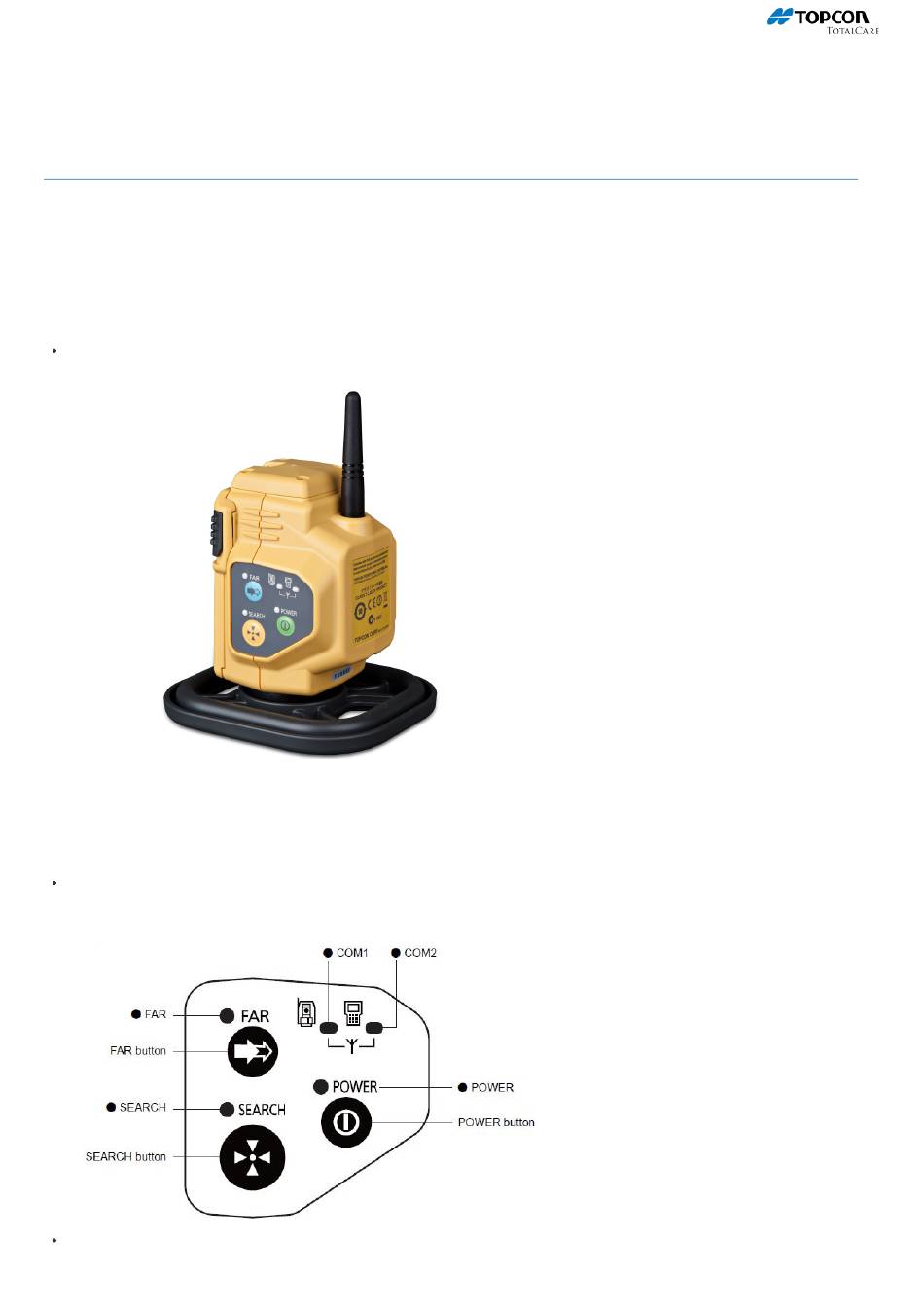

Page 2 This signifies the operation is complete and the RC will automatically return to normal functioning. Turn off the RC-5. It is now ready to be paired to a total station. Included Images View the full-size images at the Topcon Totalcare site.
