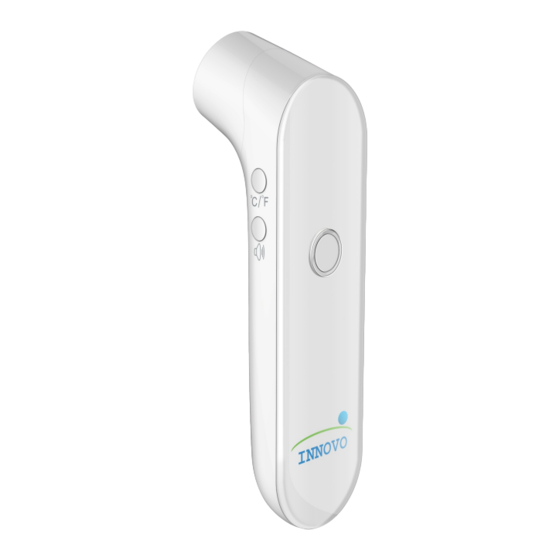

Non-contact digital infrared forehead thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

iF100B
Non-contact Digital
Infrared Forehead
Thermometer
User Manual Ver 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iF100B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innovo iF100B

Summary of Contents for Innovo iF100B

  • Page 1 Non-contact Digital Infrared Forehead Thermometer User Manual Ver 1.0...
  • Page 2 "AS IS" without warranties, guarantees or representations of any kind, either expressed or implied. The information in this document is subject to change without notice. Innovo Medical reserves the right of final interpretation of this document. Version 1.0 Issuing Date: October 2020...
  • Page 3 Introduction Thank you for purchasing the Innovo iF100B Non-contact Digital Infrared Forehead Thermometer. The iF100B Forehead Thermometer has passed numerous rigorous clinical tests and has proven to be safe, reliable and accurate when used in accordance with the operation manual.

  • Page 4: Table Of Contents

    Contents Standard Packing List ......1 Features of the iF100B Forehead Thermometer ..........1 Important Warnings and Safety Precautions ............ 2 Note on Body Temperature ....4 Elements of the Thermometer ... 5 Battery Installation......6 Measuring Forehead Temperature ..7 Temperature Taking Tips for Accurate Measurement ..........

  • Page 5: Standard Packing List

    1.Standard Packing List iF100B Forehead Thermometer…..1 PC AAA Batteries (pre-installed)………2 PCS User Manual…………………………1 PC Quick Start Guide…………………...1 PC 2.Features of the iF100B Forehead Thermometer The iF100B Forehead Thermometer measures body temperature without making contact with the body. It detects the natural...

  • Page 6: Important Warnings And Safety Precautions

    (For normal body temperature, the signal is a long beep with a color coded ring that glows blue.) Intended use The iF100B Forehead Thermometer is a non-contact infrared thermometer intended to measure body temperature via the forehead. It may be used by medical professionals or by consumers in a home environment.
  • Page 7 fever, appears distressed or has a medical condition. Do not use the thermometer for purposes not specified in this User Manual. Follow the instructions stated herein and operate the thermometer carefully as directed. Do not use the thermometer if any part, especially the sensor, shows any sign of damage.

  • Page 8: Note On Body Temperature

     Normal body temperature is a range. It varies from person to person and can fluctuate throughout the day.  Body temperature also varies by sites. Therefore, the iF100B Forehead Thermometer should not be used to obtain body temperature from other parts of the body.

  • Page 9: Elements Of The Thermometer

    5.Elements of the Thermometer Measuring unit (1) Unit button (Celsius/Fahrenheit) (2) Sound button (On/Off) (3) LED display (4) Power/Measure button (with color coded ring) (5) Memory UP button (6) Memory DOWN button (7) Blue tracking light (8) Sensor lens (9) Battery cover Button and its function Button Function...

  • Page 10: Battery Installation

    Screen display and symbol designation 6.Battery Installation 1. Open the battery cover. 2. Install two AAA batteries into the battery compartment according to the stated polarities. 3. Close the battery cover until it snaps back in place. Note:  Prior to using the thermometer for the first time, pull the plastic tab, if any, off the battery compartment.

  • Page 11: Measuring Forehead Temperature

    Warning Do not charge the included batteries because it may cause leakage, fire disaster or even explosion. Do not throw batteries into fire because it can cause an explosion. Dispose of batteries in accordance with local laws and regulations. 7.Measuring Forehead Temperature Step 1: Power on Press the Power/Measure button to turn the thermometer on.
  • Page 12 and sound off ( Step 3: Position Point thermometer perpendicular to and at the center of the forehead, just above the eyebrow. Bring thermometer closer towards the forehead until “good” registers on the screen and auto distance indicator ( disappears. This means distance is appropriate (within 2”...
  • Page 13 Normal temperatures 93.2°F to 99.4°F / 34.0°C to 37.4°C Long beep Color coded ring glows blue for 3 seconds Fever may be present* 99.5°F to 109.4°F / 37.5°C to 43.0°C 10 short beeps Color coded ring glows red for 3 seconds Out of measurement range...
  • Page 14 Step 5: Getting ready for next measurement Previous reading will continue to show on the screen. To enter “Ready to measure” mode, press the Power/Measure button once after color coded ring stops to glow blue or red (i.e. after 3 seconds from last reading). Screen will show “- - - -”...

  • Page 15: Temperature Taking Tips For Accurate Measurement

    8.Temperature Taking Tips for Accurate Measurement 1. Always start with a clean thermometer to maintain measurement accuracy and hygiene. Pay extra attention to the sensor lens as any obstruction, such as dust or grease on the lens will prevent an accurate measurement.

  • Page 16: Memory Mode

    9.Memory Mode Accessing recorded data When device is off, press the Memory UP button to enter Memory mode. Screen shows “- - - -” and Memory icon Press the Memory UP button again. Screen shows “1”, then the newest recorded reading. Press the Memory UP button again.

  • Page 17: Care And Cleaning

     A total of 30 readings can be recorded.  When memory is full, the oldest data will be overwritten as new data is recorded.  “1” corresponds to the newest data and “30” to the oldest data. Exiting memory mode To exit and power off, press the Power/Measure button for about 3-4 seconds.
  • Page 18 moistened with rubbing alcohol (70% Isopropyl). Do not exert too much pressure or use hard object to clean as it may damage the delicate sensor lens.  Place the thermometer in a well ventilated area and wait for the alcohol to evaporate completely before using the thermometer.

  • Page 19: Errors And Troubleshooting

    11.Errors and Troubleshooting Error Message Possible cause and solution Possible cause: The auto distance sensor is blocked. Solution: Do not touch the Auto distance thermometer probe, sensor especially the bottom area blocked where the auto distance sensor is embedded. Possible cause: The Power/Measure button is pressed when distance between the thermometer...
  • Page 20 Possible cause: Battery is completely exhausted. Solution: Replace the batteries. Refer to Section 6 on ‘Battery Dead battery Installation’. Low battery icon is displayed on screen for 10 seconds, then device powers automatically. Possible cause: Ambient temperature is too high (more than 104.0°F/ 40.0°C).
  • Page 21 Color coded ring glows red for 3 seconds, then device powers off automatically in 10 seconds. Troubleshooting Problem Possible Solution Cause The battery Replace with is exhausted. new batteries of the same model or specifications. Polarities of Ensure that the batteries the batteries are reversed.
  • Page 22 Attention: ● Electromagnetic interference: iF100B Forehead Thermometer contains sensitive electronic components. You should not use the thermometer in an area with electromagnetic interference (e.g. near mobile phones or microwaves). ● Please dispose of the used thermometer and batteries in accordance with local regulation requirements.

  • Page 23: Technical Specifications

    12.Technical Specifications Item Specification Product Innovo iF100B Non-contact name and Digital Infrared Forehead model Thermometer ASTM E1965; IEC 60601-1; Applicable IEC 60601-1-2 (EMC); regulations ISO80601-2-56; IEC and laws 60601-1-11 Temperature °F/°C, adjustable units Measure- ment 93.2F-109.4F temperature (34.0°C-43.0°C) range ±0.4F within 95.0F-107.6F/ ±0.2°C within 35.0C-42.0°C...
  • Page 24 When voltage is below 2.6V+0.1V/-0.05V, low battery icon ( ) flashes. Device will still work. Low battery When voltage is below indicator 2.5V+0.04V/-0.1V, low battery icon ( ) appears for 10 seconds, then device powers off automatically. Device will not work. Operating 2.6 ~ 3.3V voltage...

  • Page 25: Warranty And After-Sale Service

    For inquiries, please email cs@innovogroups.com The device is covered by a 1-year warranty, effective from the date of purchase. Please go to www.innovo-medical.com to register your purchase. Batteries, packaging, and any damage caused by improper use are not covered under warranty.

  • Page 26: Emc Information - Guidance And Manufacturer's Declaration

    IEC60601-1-2. Guidance and manufacturer’s declaration – Electromagnetic emission The model iF100B is intended for use in the electromagnetic environment specified below. The customer or the user of the model iF100B should ensure that it is used in such an envi- ronment.
  • Page 27 - guidance The model iF100B uses RF energy only for its internal function. Therefore, its emissions Group 1 RF emissions CISPR 11 are very low and are not likely to cause any interfer- ence in near- by electronic equipment.
  • Page 28 61000-3-3 Guidance and manufacturer’s declaration – Electromagnetic immunity The model iF100B is intended for use in the electromagnetic environment specified below. The customer or the user of the model iF100B should assure that it is used in such an envi- ronment.
  • Page 29 70 % U power current (30 % supply of the dip in input ) for model lines iF100B cycles 61000-4- drop off <5 % U from (>95 % dip in U ) for normal level. It may be...
  • Page 30 Guidance and manufacturer’s declaration – Electromagnetic immunity The model iF100B is intended for use in the electromagnetic environment specified below. The customer or the user of the model iF100B should ensure that it is used in such an envi- ronment.
  • Page 31 to 2.5 bles, than the recommen- separation distance calculated from the equation applicable to the frequency of the transmitter. Recommen- separation distance where p is the maximum output power rating of the transmitter in watts (W) according to the transmit- ter manufac- turer and d is the recom-...
  • Page 32 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model iF100B is used exceeds the applicable RF compliance level above, the model iF100B should be observed to verify normal opera- tion.
  • Page 33 The model iF100B is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model iF100B can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications...
