Innovo iE100A Quick Start Manual

Quick Start Guide

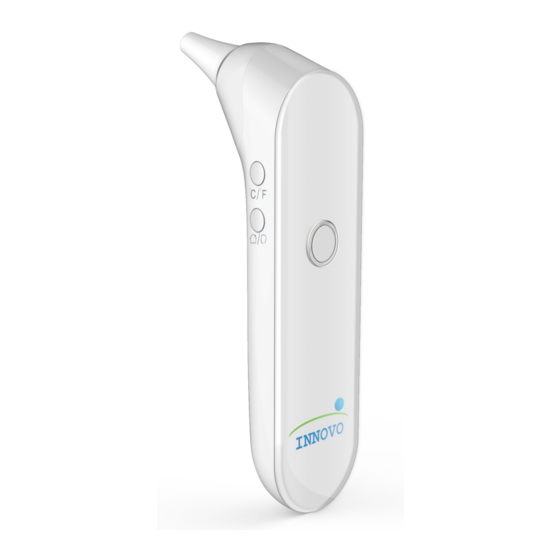

Digital Infrared Ear Thermometer
Model iE100A
Measuring unit
(1) Unit button (Celsius/Fahrenheit)
(2) Mode button (Ear/Object measurement mode)
(3) LED display
(4) Power/Measure button (with color coded ring)
(5) Memory button
(6) Sound button (On/Off)
(7) Sensor lens
(8) Ear probe
(9) Battery cover
Button and its function
Button Function
Power/Measure Press once to power on or to
button take measurement.
Press for about 3-4 seconds
to power off.
Unit button To switch unit of
measurement between
Celsius and Fahrenheit.
Measurement To switch between Ear and
mode button Object measurement mode.
Memory button To enter Memory mode.
Sound button To turn sound on and off.
Screen display and symbol
designation
Measuring Eardrum Temperature
Note: Make sure both user and thermometer have
remained at a constant ambient temperature for at
least 30 minutes.
Step 1: Press the
Power/Measure button to
turn the thermometer on.
Step 2: The Ear
measurement mode ( )
is selected by default.
Place a new probe cover
securely on the
thermometer ear probe.
