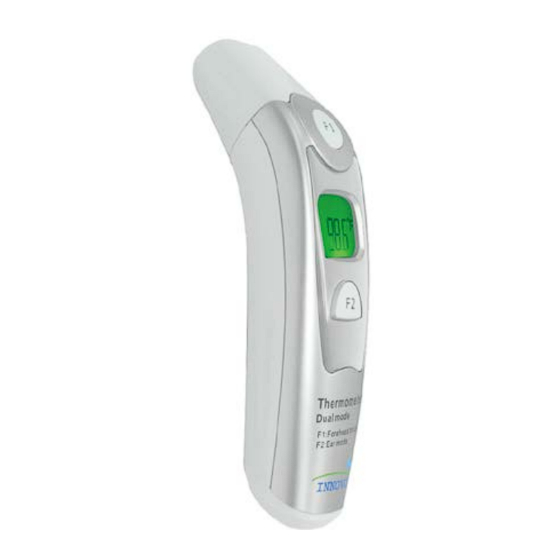

INV-EF100
Dual Mode Digital Infrared Thermometer
Instruction Manual Ver 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INV-EF100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innovo INV-EF100

Summary of Contents for Innovo INV-EF100

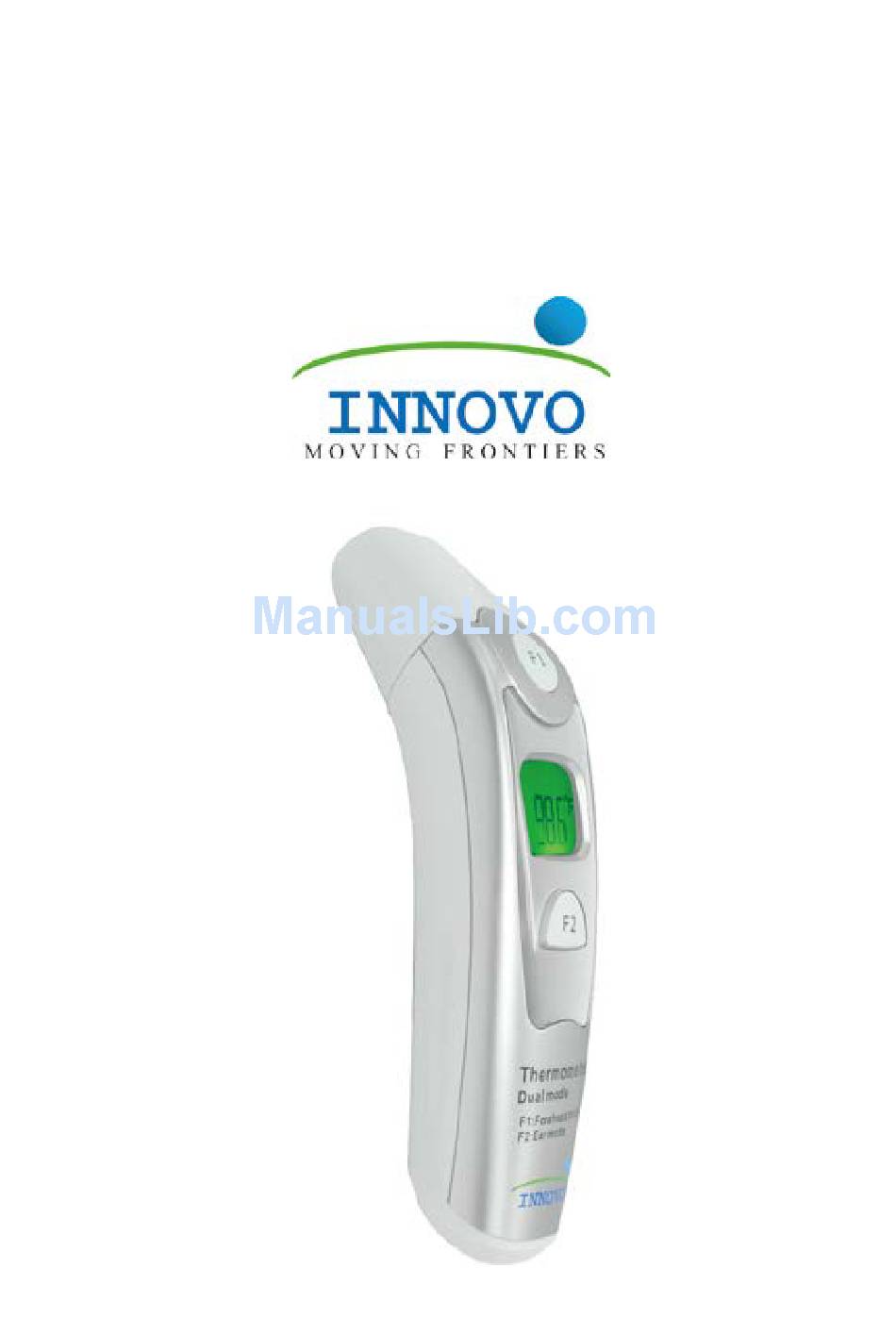

  • Page 1 INV-EF100 Dual Mode Digital Infrared Thermometer Instruction Manual Ver 1.1...
  • Page 2 Copyright © Innovo Medical 2014-2016. All rights reserved. Innovo Medical owns and reserves all of the rights comprised in the copyright of this document. No part of this document may be changed, excerpted, copied, reproduced, or imitated in any form or by any means without prior written consent of Innovo Medical.
  • Page 3 We want to make a thermometer that is capable of accompanying your child from infancy to adulthood. That is why the INV-EF100 Dual Mode Digital Infrared Thermometer is designed to be BOTH an ear thermometer AND a forehead thermometer, offering users the freedom to choose between two modes.

  • Page 4: Table Of Contents

    Contents Features of Dual Mode Infrared Thermometer INV-EF100 ...1 Warnings and Precautions .............2 Care and Cleaning .................3 Note on Body Temperature ............5 Product Designs ................6 Measuring Forehead Temperature ..........7 Measuring Temperature via Eardrum ..........7 Instructions for Display and Operation ..........9 Troubleshooting ................

  • Page 5: Features Of Dual Mode Infrared Thermometer Inv-Ef100

    Features of Dual Mode Infrared Thermometer INV-EF100 The INV-EF100 thermometer is able to measure both forehead and ear temperatures by detecting the infrared heat emitted by the respective areas. The forehead mode is activated by pressing the F1 button and the eardrum mode is activated by pressing the F2 button.

  • Page 6: Warnings And Precautions

    Operating principle The infrared temperature sensor detects infrared energy emitted by the eardrum. A built-in lens focuses the collected energy, which is then converted into a temperature reading by the thermopiles and measurement circuits. Warnings and Precautions This product is not intended to substitute advice from a physician, pharmacist, or other licensed health-care professional.

  • Page 7: Care And Cleaning

    • The thermometer is not waterproof. Do not immerse in water or other liquids. For cleaning and disinfecting, please follow instructions in the ‘Care and Cleaning’ section. • Certain parts of the thermometer are lined precisely in order to perform properly. Do not drop the thermometer or twist the thermometer sensor.

  • Page 8: Battery Installation

    • Make sure that both user and thermometer have stayed in steady-state room condition for at least 30 minutes. Recent exposure to hot or cold temperatures will impact your reading. • If taking multiple readings, it is advised to wait at least 10 seconds between readings.

  • Page 9: Note On Body Temperature

    Otherwise, the device bracket might be damaged. ☆ Please remove the batteries if you will not be using the thermometer for an extended period of time. Note on Body Temperature • The normal body temperature is a range. • The normal range varies from person to person and can fluctuate throughout the day.

  • Page 10: Product Designs

    Normal body temperature fluctuates throughout the day and is also affected by external factors. The body temperature of an individual is the lowest between 2:00 a.m. and 4:00 a.m. and the highest between 2:00 p.m. and 8:00 p.m. An individual's body temperature typically changes by less than 1°C (1.8 °F) each day.

  • Page 11: Measuring Forehead Temperature

    Measuring Forehead Temperature With the probe cover attached, point the thermometer at the center of the forehead. Move the thermometer towards the forehead until the probe cover touches the skin. The probe cover acts as a distance guide and ensures that the measuring distance between the thermometer and the forehead is correct.
  • Page 12 ear canal is straight (See Figure 1). Position the ear probe carefully so that it is aligned with the eardrum to ensure accurate measurement readings. This applies to adults as well. For children younger than 1 year old, gently pull the ear straight back to ensure that the ear canal is straight (see Figure 2).

  • Page 13: Instructions For Display And Operation

    heat. 7. Keep the infrared sensor probe clean to ensure accurate readings. 8. Before measuring temperature from the ear, remove earwax, if any. Keep the ear canal clean. Instructions for Display and Operation Operational method and Sound and backlit display instruction for displays 1.Measurement of forehead temperature:...
  • Page 14 Forehead measurement mode Eardrum measurement mode 3 short beeps with a red The measured value exceeds backlit for 3 seconds. 212.0°F/100.0°C. 3 short beeps with a red The measured value falls below backlit for 3 seconds. 32.0°F/0.0°C. Inquiry for memory data, Storing 20 temperature readings Operational method and instruction for Sound and...
  • Page 15 The thermometer will power off automatically if no activity is detected for 10 seconds. Attention: ●Electromagnetic interference: INV-EF100 thermometer contains sensitive electronic components. You should not use the thermometer in an area with electromagnetic interference (e.g. near mobile phones or microwaves) ●Please dispose the used thermometer and batteries in accordance with...

  • Page 16: Troubleshooting

    ●Please remove the battery if you will not be using the thermometer for an extended period of time. Troubleshooting Symptom Possible Cause Solution The battery level is Use new batteries of the extremely low. same model or specifications. Polarities of the Ensure that the batteries batteries are are correctly installed...

  • Page 17: Technical Specifications

    10. Technical Specifications Items Standards Model Dual mode infrared thermometer INV-EF100 Applicable regulations and ASTM 1965/EN12470-5/GB/T 19146-2010 laws Temperature units °F/°C, adjustable Forehead temperature mode: 32.0°F – 212.0°F/ Displayed 0.0°C-100.0°C temperature range Ear temperature mode: 32.0°F –...
  • Page 18 ±0.4°F/±0.2°C (50.0 °F -104.0 °F /10.0°C – 40.0°C) The measurement accuracy of INV-DC200 is within ±0.4°F (±0.2°C) under operating ambient temperature of 50.0°F – 104.0°F (10.0°C – 40.0°C). This meets the ASTM E1965-98 laboratory Accuracy accuracy requirements for Infrared thermometers (Laboratory) which is ±0.4°F (±0.2°C) in the display range of 98°F to 102°F (37°C-39°C).
  • Page 19 This infrared thermometer meets requirements established in ASTM Standard (E 1965-98). Full responsibility for the conformance of this product to the standard is assumed by Innovo Medical, 406 Sterling Street, Building 2, Camphill, PA 17011, USA. ASTM laboratory accuracy requirements in the display range of 98°F to102°F (37°C-39°C) for IR thermometers is ±0.4°F (±0.2°C), whereas for...

  • Page 20: Warranty And After-Sale Service

    The device is under warranty for one year after the date of acquisition. To extend your warranty period for an additional 1 year, please go to www.innovo-medical.com and register your purchase. Batteries, packaging, and any damage caused by improper use are not covered under warranty.
  • Page 21 Manufactured for: Innovo Medical 406 Sterling Street, Building 2 Camphill, PA, 17011 Phone: +1-858-888-9781 cs@innovogroups.com www.innovo-medical.com...
