Innovo iF100A Quick Start Manual

Quick Start Guide

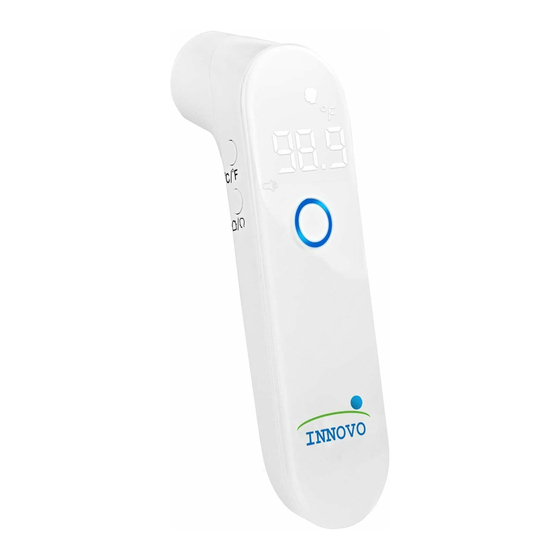

Non-contact Digital Infrared
Forehead Thermometer
Model iF100A
Measuring unit
(1) Unit button (Celsius/Fahrenheit)
(2) Mode button (Forehead/Object measurement
mode)
(3) LED display
(4) Power/Measure button (with color coded ring)
(5) Memory button
(6) Sound button (On/Off)
(7) Blue tracking light
(8) Sensor lens
(9) Battery cover
Button and its function
Button Function
Power/Measure Press once to power on or to
button take measurement.
Press for about 3-4 seconds
to power off.
Unit button To switch unit of
measurement between
Celsius and Fahrenheit.
Measurement To switch between Forehead
mode button and Object measurement
mode.
Memory button To enter Memory mode.
Sound button To turn sound on and off.
Screen display and symbol
designation
Measuring Forehead Temperature
Note: Make sure both user and thermometer have
remained at a constant ambient temperature for at
least 30 minutes.
Step 1: Press the
Power/Measure button to
turn the thermometer on.
Step 2: The Forehead
measurement mode ( )
is selected by default.
Step 3: Point
thermometer
perpendicular to and at
the center of the forehead,
just above the eyebrow.
Bring thermometer closer
towards the forehead until
