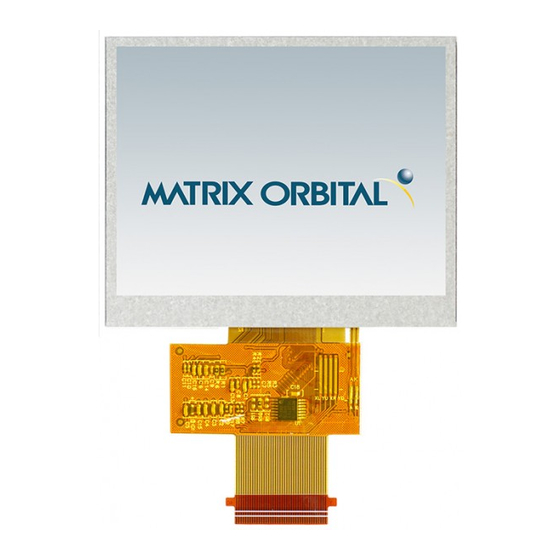

- Page 1 MOP-TFT320240-35A-BLM-TPC Hardware Manual Revision 1.0...
-
Page 2: Revision History
Revision History Revision Date Description Author May 26, 2017 Initial Release Divino MOP-TFT320240-35A-BLM-TPC... -
Page 3: Table Of Contents
12.3 Static Charge Precaution .............................. 14 12.4 Packing ..................................14 12.5 Precautions during Operation ..........................14 12.6 Storage Recommendations ............................. 15 12.7 Safety Precautions ..............................15 13 Ordering ....................................16 13.1 Part Numbering Scheme ............................... 16 13.2 Options ..................................16 14 Contact ....................................16 MOP-TFT320240-35A-BLM-TPC... -
Page 4: General Information
The LED Life-time is defined as the estimated time to 50% degradation of initial brightness at Ta=25°C and IF =40mA. The LED lifetime could be decreased if operating IF is larger than 40mA, and increased if IF is less than 40mA. MOP-TFT320240-35A-BLM-TPC... -
Page 5: Touch Panel Characteristics
(at Ta=25°C) Item Description IC solution on TP Model FT5416 Touch Count Max 5 point Display Resolution* 320*240 Interface Type * I2C Slave Address* 0x70 Origin of Coordinate* top left corner Parameter Unit Interface Signal Voltage Power Voltage Power ripple MOP-TFT320240-35A-BLM-TPC... -
Page 6: External Dimensions
6 External Dimensions Figure 1: MOP-TFT320240-35A-BLM-TPC Drawing MOP-TFT320240-35A-BLM-TPC... -
Page 7: Electro-Optical Characteristics
Instruments or compatible. For contrast ratio, Surface Luminance, Luminance uniformity and CIE, the testing data is based on TOPCON’s BM-7 or BM-5 photo detector or compatible. *Note 7: For TFT module, Gray scale reverse occurs in the direction of panel viewing angle. MOP-TFT320240-35A-BLM-TPC... -
Page 8: Interface Description
No connection YD(NC) No connection XL(NC) No connection YU(NC) No connection 8.2 CTP Interface Description Interface No. Name I/O Pin Connection Description RESET Reset low Power Supply of CTP Ground State change interrupt Serial interface clock Serial interface data MOP-TFT320240-35A-BLM-TPC... -
Page 9: Ac Characteristics
DOTCLK High Period tCKH Data Setup Time Data Hold Time Reset pulse width tRES μS *Note: External clock source must be provided to DOTCLK pin of HX8238-D. The driver will not operate if absent of the clocking signal. MOP-TFT320240-35A-BLM-TPC... -
Page 10: Data Timing
1224 1350 tDOTCLK Vertical Back Porch tVBP Lines Vertical Front Porch tVFP Lines Vertical Data Start Point tVBP Lines Vertical Blanking Period tVBP + tVFP Lines NTSC Vertical Display VDISP 280(PALM=0) Lines Area 288(PALM=1) Vertical Cycle NTSC Vcycle Lines MOP-TFT320240-35A-BLM-TPC... -
Page 11: Power Sequence
- 1 line: 408 CLK tshut-on - 1 frame: 262 line 232.4 - DOTCLK = 6.5MHz *Note: it is necessary to input DOTCLK before the falling edge of SHUT. Display starts at 10th falling edge of VSYNC after the falling edge of SHUT MOP-TFT320240-35A-BLM-TPC... -
Page 12: Power Down Sequence
DOTCLK must be maintained at least 2 frames after the rising edge of SHUT. Display turns off at the 2nd falling edge of VSYNC after the falling edge of SHUT. If RESET signal is necessary for power down, provide it after the 2- frames-cycle of the SHUT period. MOP-TFT320240-35A-BLM-TPC... -
Page 13: Inspection Criterion
11 Inspection Criterion 11.1 Description This specification is made to be used as the standard acceptance/rejection criteria for the MOP-TFT320240-35A-BLM-TPC. 11.2 Sample plan Sampling plan according to GB/T2828.1-2003/ISO 2859-1: 1999 and ANSI/ASQC Z1.4-1993, normal level 2 and based on: Major defect: AQL 0.65 Minor defect: AQL 1.5... -
Page 14: Lcd Pixel Defect
1. If the fold mark and linear scar for polarizer is visible with operating condition, the defect is judged with line judge 2. If the fold mark and linear scar for polarizer is visible with non-operating condition, the defect is judged with the above judgment standard. MOP-TFT320240-35A-BLM-TPC... -
Page 15: Handling Precautions
If the display area is pushed hard during operation, some font may be abnormally drawn but the LCD will return to normal after it is reset. Slight dew depositing on terminals can cause an electro-chemical reaction, damaging traces and resulting in an open circuit. Usage under the maximum operating temperature, 50%Rh or less is required MOP-TFT320240-35A-BLM-TPC... -
Page 16: Storage Recommendations
If any liquid leaked out of a damaged glass cell, and comes in contact with your hands, please wash it off well with soap and water MOP-TFT320240-35A-BLM-TPC... -
Page 17: Ordering
Table 1: Parallel TFT Part Numbering Scheme TFT 320 13.2 Options Table 2: Parallel Part Options Designator Options Product Line MOP: Matrix Orbital Parallel Display Screen Type TFT: Graphic TFT Display Columns 320: Three Hundred Twenty Pixel Columns Display Rows 240: Two Hundred Forty Pixel Rows Display Size 35: 3.5”... - Page 18 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Matrix Orbital MOP-TFT320240-35A-BLM-TPC...
