- Page 1 HTT Series For all variants of the HTT35A, HTT50A, HTT70A and HTT104A Quick Start Guide Revision 1.2...
-
Page 2: Table Of Contents
Troubleshooting ................................8 Power ..................................8 Display ................................... 8 Touch ..................................8 Recommended Accessories ............................9 HDMI Cable ................................9 USB Communication ............................. 9 External Power ..............................9 Support ..................................9 Contact ..................................9 MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 3: Revision History
Revision History Revision Date Description Author September 5, 2019 Clarified Raspberry Pi Getting Started section Divino December 1, 2017 Voltage Correction Divino November 6, 2017 First Release Divino MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 4: Introduction

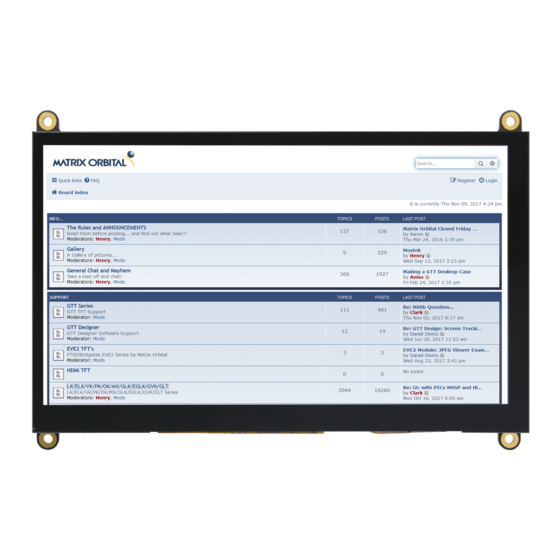

Introduction The HTT series offers full colour TFT displays, with a simple HDMI and USB plug and play interface. The HTT can be configured with a touch screen, providing control without the need of a mouse or keyboard. Designed with industrial applications in mind, the HTT is perfect for panel mounted applications and HMI interfaces. -
Page 5: Headers
Recommended Mate: PWR-ACDC-5V2A A power adaptor may be applied to any HTT Series display, providing power to the unit. When choosing an adaptor, please ensure it is a center positive model that conforms to the voltage and current requirements of your display. Please consult the Power Consumption section for details. -
Page 6: Getting Started
No further software configuration is required. The HTT is not compatible with TinkerOS-Android Marshmallow. BeagleBone The BeagleBone board will autodetect the HTT’s EDID display settings automatically. No further software configuration is required. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 7: Usb Drivers
Once the HTT is properly installed in windows, 3 new devices will be present in Device manager. HID-Compliant Mouse USB Composite Device WinUsb Device Table 2: HTT Device VID/PID 0x1B3D 0x14C2 Figure 6: HTT USB Driver Listing MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 8: Extended Display Information Data (Edid)
Both the Resistive and Capacitive touch variants of the HTT display comes with a touch driver. In order for the touch driver to operate properly, the HTT needs to be connected through USB. In addition to supplying power, the USB header will also allow transfer touch data to the controller board. MATRIX ORBITAL Phone: 403.229.2737 Email:... -
Page 9: Troubleshooting
Check the power connector in use on your display. If the connector has become loose or you are unable to resolve the issue, please use the Contact section to reach a friendly Matrix Orbital support representative. If your display is showing picture but continuously flickering, your display is not receiving enough power. You’ll have to apply more power through a powered USB hub, or the optional Barrel jack/external power header. -
Page 10: Recommended Accessories
AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I) Support Phone: 403.229.2737 Email: support@matrixorbital.ca Manuals and Drivers: http://www.matrixorbital.ca Forums: http://www.lcdforums.com/forums Contact Sales Support Online Phone: 403.229.2737 Phone: 403.229.2737 Purchasing: www.matrixorbital.com Email: sales@matrixorbital.ca Email: support@matrixorbital.ca Support: www.matrixorbital.ca MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca...
