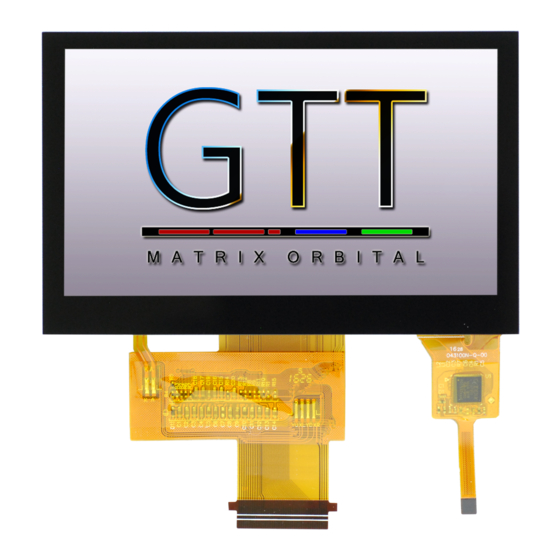

- Page 1 MOP-TFT480272-43A-BLM-TPN Hardware Manual Revision 1.2...
-
Page 2: Revision History
Revision History Revision Date Description Author January 8, 2019 Updated Drawing Divino June 27, 2018 Added FFC Information Divino May 26, 2017 Initial Release Divino MOP-TFT480272-43A-BLM-TPN... -
Page 3: Table Of Contents
12.3 Static Charge Precaution .............................. 12 12.4 Packing ..................................12 12.5 Precautions during Operation ..........................12 12.6 Storage Recommendations ............................. 13 12.7 Safety Precautions ..............................13 13 Ordering ....................................14 13.1 Part Numbering Scheme ............................... 14 13.2 Options ..................................14 14 Contact ....................................14 MOP-TFT480272-43A-BLM-TPN... -
Page 4: General Information
The LED Life-time is defined as the estimated time to 50% degradation of initial brightness at Ta=25°C and IF =40mA. The LED lifetime could be decreased if operating IF is larger than 40mA, and increased if IF is less than 40mA. MOP-TFT480272-43A-BLM-TPN... -
Page 5: External Dimensions
5 External Dimensions Figure 1: MOP-TFT480272-43A-BLM-TPN Drawing MOP-TFT480272-43A-BLM-TPN... -
Page 6: Electro-Optical Characteristics
Instruments or compatible. For contrast ratio, Surface Luminance, Luminance uniformity and CIE, the testing data is based on TOPCON’s BM-7 or BM-5 photo detector or compatible. *Note 7: For TFT module, Gray scale reverse occurs in the direction of panel viewing angle. MOP-TFT480272-43A-BLM-TPN... -
Page 7: Interface Description
7 Interface Description 7.1 LCM Interface Description The MOP-TFT480272-43A-BLM-TPN uses a FFC cable for 24bit RGB parallel communication. The FFC cable is compatible with any 40 position FFC connector with a 0.5mm pitch and Top/Bottom contacts such as the Omron Electronics Inc XF2M-4015-1A. -
Page 8: Ac Characteristics
VSD width Tvwh VSD setup time Tvsu VSD hold time Tvhd Data setup time Tdasu Data hold time Tdahd DE setup time Tdesu DE hold time Tdehd Time from VSD to 1 line HV mode data input By HDL[4:0] setting MOP-TFT480272-43A-BLM-TPN... -
Page 9: Data Timing
Symbol Unit Min. Typ. Max. DCLK frequency fclk VSD period time VSD display area VSD back porch VSD front porch Tvfp HSD period time DCLK HSD display area DCLK HSD back porch Thbp DCLK HSD front porch Thfp DCLK MOP-TFT480272-43A-BLM-TPN... -
Page 10: Power Sequence
9 Power Sequence 9.1 Power On Sequence Figure 5: Power On Sequence 9.2 Power Off Sequence Figure 6: Power Off Sequence MOP-TFT480272-43A-BLM-TPN... -
Page 11: Inspection Criterion
10 Inspection Criterion 10.1 Description This specification is made to be used as the standard acceptance/rejection criteria for the MOP-TFT480272-43A-BLM-TPN. 10.2 Sample plan Sampling plan according to GB/T2828.1-2003/ISO 2859-1: 1999 and ANSI/ASQC Z1.4-1993, normal level 2 and based on: Major defect: AQL 0.65 Minor defect: AQL 1.5... -
Page 12: Lcd Pixel Defect
1. If the fold mark and linear scar for polarizer is visible with operating condition, the defect is judged with line judge 2. If the fold mark and linear scar for polarizer is visible with non-operating condition, the defect is judged with the above judgment standard. MOP-TFT480272-43A-BLM-TPN... -
Page 13: Handling Precautions
If the display area is pushed hard during operation, some font may be abnormally drawn but the LCD will return to normal after it is reset. Slight dew depositing on terminals can cause an electro-chemical reaction, damaging traces and resulting in an open circuit. Usage under the maximum operating temperature, 50%Rh or less is required MOP-TFT480272-43A-BLM-TPN... -
Page 14: Storage Recommendations
If any liquid leaked out of a damaged glass cell, and comes in contact with your hands, please wash it off well with soap and water MOP-TFT480272-43A-BLM-TPN... -
Page 15: Ordering
TFT 480 13.2 Options Table 2: Parallel Part Options Designator Options Product Line MOP: Matrix Orbital Parallel Display Screen Type TFT: Graphic TFT Display Columns 480: Four Hundred Eighty Pixel Columns Display Rows 272: Two Hundred Seventy Two Pixel Rows Display Size 43: 4.3”...
