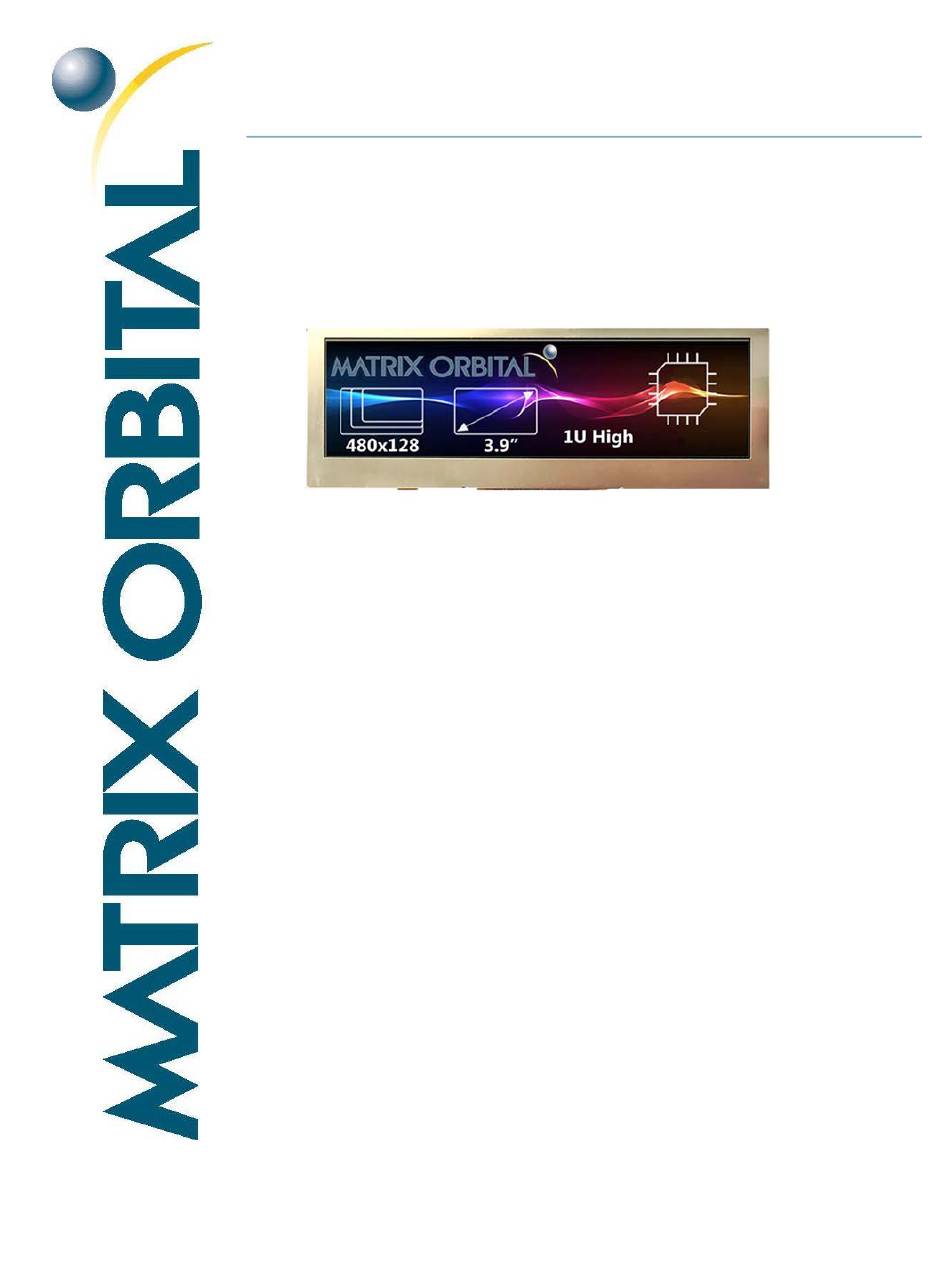

- Page 1 MOP-TFT480128-39A/G Hardware Manual Revision 1.0 ...
-
Page 2: Table Of Contents
Contents Contents ...................................... 1 1 Contact ...................................... 2 2 Customization .................................... 2 3 General Information .................................. 3 4 Part Numbering ................................... 3 5 Dimensions .................................... 4 5.1 MOP‐TFT480128‐39A TPN & TPR ............................. 4 5.2 MOP‐TFT480128‐39A TPC .............................. 5 5.3 MOP‐TFT480128‐39G TPC .............................. 6 6 Electrical Characteristics ................................ 7 7 Backlight Characteristics ................................ 7 ... -
Page 3: 1 Contact

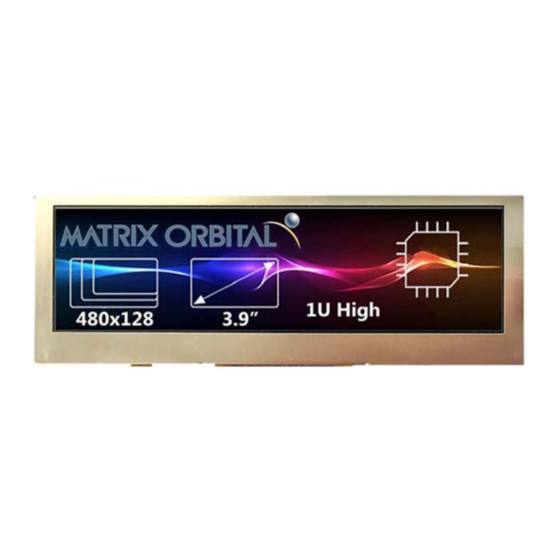

Contact On Shore and In‐House Design In‐House Sales In‐House Support In Calgary, Canada Sales Support Online Phone: (403) 229‐2737 Phone: (403) 229‐2737 Purchasing: www.matrixorbital.com Email: sales@matrixorbital.ca Email: support@matrixorbital.ca Support: www.matrixorbital.com Free support forums https://www.lcdforums.com/forums Example Code on GitHub https://github.com/MatrixOrbital Customization Need a custom solution? No problem! Since we manufacture our products in‐house, we are highly flexible, have low MOQ`s and provide you what you need. From custom headers to custom cables to entire custom displays, we can make what you need. 2 ... - Page 4 3 General Information The MOP‐TFT480128 is a 3.9” 1U Bar TFT. Item Contents Unit Display Size (Diagonal) 3.9” inch Display type TN TFT Resolution 480 x 128 Pixels Display Mode Transmissive, Normally Black Backlight LED, 1000 cd/m2, 50,000 hour View Direction 6 H Gray Scale Inversion Direction 12 H Module Outline 105.5 (W) x 37.0 (H) mm Active Area 97.04 (W) x 25.34 (H) mm Pixel Pitch 0.198 (W) x 0.198 (H) mm ...
-
Page 5: 5 Dimensions
5 Dimensions 5.1 MOP-TFT480128-39A TPN & TPR 4 ... -
Page 6: Mop-Tft480128-39A Tpc
5.2 MOP-TFT480128-39A TPC 5 ... -
Page 7: Mop-Tft480128-39G Tpc
5.3 MOP-TFT480128-39G TPC Coming soon 6 ... -
Page 8: 6 Electrical Characteristics
Electrical Characteristics Item Symbol Min Typ Max Unit Digital Interface Supply Voltage VCC 3.0 3.3 3.6 V Logic Low input voltage GND ‐ 0.3*VCC V Logic High input voltage 0.7*VCC ‐ VCC V Logic Low output voltage GND ‐ GND+0.4 V Logic High output voltage VCC‐0.4 ‐ VCC V Logic Current Consumption All ... -
Page 9: Capacitive
Item Min. Typ. Max. Unit Note 20 ‐ 100 g *Note Activation force Durability‐surface scratching Write 20,000 ‐ ‐ Characters *Note 2 1,000,000 ‐ ‐ Touches *Note 3 Durability‐surface pitting 3 ‐ ‐ H Surface Hardness *Note 1: Stylus pen Input: R0.8mm polyacetal pen or Finger *Note 2: Measurement for Surface area ‐ Force: 150‐250gf ‐ Speed: 60mm/sec ‐ Stylus: R0.8 polyacetal pen or Finger *Note 3: Pit 1,000,000 times on the Film with a R3.75 silicon rubber. ‐ Force: 2.45N ... -
Page 10: 9 Interface Description
Interface Description 9.1 40 pin RGB Suggested mating FFC connector, 40 position, 0.5mm pitch, Top contact. FFC Header Part Number Matrix Orbital Omron Electronics XF2M‐4015‐1A Pin Name Description 1 LEDK Backlight Cathode 2 LEDA Backlight Anode 3 GND Ground 4 VCC Power source 5‐12 Red (0‐7) Red data signal 13‐20 Green (0‐7) Green data signal 21‐28 Blue (0‐7) ... -
Page 11: 10 Interface Pixel Timing
Interface Pixel Timing Characteristics Symbol Min. Typ. Max. Unit DOTCLK Frequency Fclk ‐ 9.05 ‐ MHz Hsync Period Time ‐ ‐ DCLK Display Period Thdisp ‐ ‐ DCLK Back Porch Thbp ‐ ‐ DCLK Front Porch Thfp ‐ ‐ DCLK Pulse Width ‐ DCLK Vsync Period Time ... -
Page 12: Power Up Sequence
Power Sequence 11.1 Power Up Sequence Figure 1: Power Up Sequence 11.2 Power Down Sequence Figure 2: Power Down Sequence 11 ... -
Page 13: 13 Suggested Products
Environmental Item Min Max Unit Operation Temperature ‐20 70 °C Storage Temperature ‐30 °C Humidity 90%* RH *noncondensing Suggested Products MOP‐TFT480116‐38A/38G: 1U 480x116 TFT, 1000nit, this unit has AA symmetrically in the module. https://www.matrixorbital.com/MOP‐TFT480116‐38A https://www.matrixorbital.com/MOP‐TFT480116‐38G EVE3x‐38A/38G: 1U 3.8” 480x116 SPI or USB TFT using the EVE3 graphics engine, this unit has AA symmetrically in the module. https://www.matrixorbital.com/eve3x‐38a https://www.matrixorbital.com/eve3x‐38g EVE3x‐39A/39G: 1U 3.9” 480x128 SPI or USB TFT using the EVE3 graphics engine. https://www.matrixorbital.com/eve3x‐39a https://www.matrixorbital.com/eve3x‐39g GTT38A: Intelligent UART 3.8” 1U TFT USB, I2C, Serial, RS422 with software development tools. https://www.matrixorbital.com/gtt38a Inspection Criterion Description This specification is made to be used as the standard acceptance/rejection criteria. Sample plan Sampling plan: ... - Page 14 Figure 3: Inspection Zones in an LCD Zone A: Active Area Zone B: Viewing Area Function Defect Items to be inspected Inspection criterion Classification of defects All functional defects 1) No display 2) Display abnormally 3) Missing vertical, horizontal segment 4) Short circuit 5) Back‐light no lighting, flickering and abnormal lighting. MA 6) obvious striation 7) Current beyond specification value Missing Missing component Outline dimension Overall outline dimension exceeds the drawing is not allowed. LCD pixel defect (bad dot) (defect type: MI) Checking item Judgment criterion Total Bright dot 0 0 Dark dot N≤2 N≤2 Total dot N≤2 N≤2 Mura ...
-
Page 15: 15 Handling Precautions
Distance between 2 defects should more than 3mm apart. Scratches not viewable through the back of the display are acceptable Size(mm) Judgment criterion D≤0.20 allowed Concave point and air 0.20<D≤0.30 4 bubble for polarizer 0.30<D≤0.50 1 D>0.50 None D=(a+b)/2 15 Handling Precautions Mounting method Do not make extra holes in the display or modify its shape. When mounting the display, ensure that the display does not flex, bend or twist. Extreme care should be used when handling the LCD modules. LCD Handling and Cleaning Precaution To clean the display surface, it is recommended to wipe lightly using a soft cloth with either Isopropyl alcohol or Ethyl alcohol. Do not wipe the display surface with dry or hard materials as it may damage the polarizer surface. Do not use Water or Aromatics to clean the display. Do not wipe ITO pad area with dry or hard materials that will damage the ITO patterns Do not use Soldering flux, Chlorine (Cl), and Sulfur(S) on the pad or prevent it from being contaminated. If the display is sent without applying a silicon coat on the pad, the ITO patterns could be damaged due to corrosion as time goes on. If ITO corrosion occurs due to customer miss‐handling, or if the customer applies materials such as Chlorine (CI), Sulfur (S) to the display, the responsibility is placed the customer. Static Charge Precaution The LCD module uses CMOS LSI drivers, so we recommend that you: Connect any unused input terminal to VDD or VSS Do not input any signals before power is turned on ... -
Page 16: 16 Revision History
Do not leave the display exposed to sunlight or fluorescent light. Place the display in a polyethylene bag with the opening sealed. Ensure that nothing is making contact with the polarizer surface. It is recommended to store them in the same packaging that was provided upon purchase Safety Precautions In the case that the LCD glass has shattered, it is recommended to remove any glass pieces, wash off the liquid crystal using either acetone or ethanol, and proceed to burn any remaining display pieces. If any liquid leaked out of a damaged glass cell, and comes in contact with your hands, please wash it off well with soap and water Revision History Revision Date Description Author 1.0 July 1 2020 Initial Release Henry 15 ...
