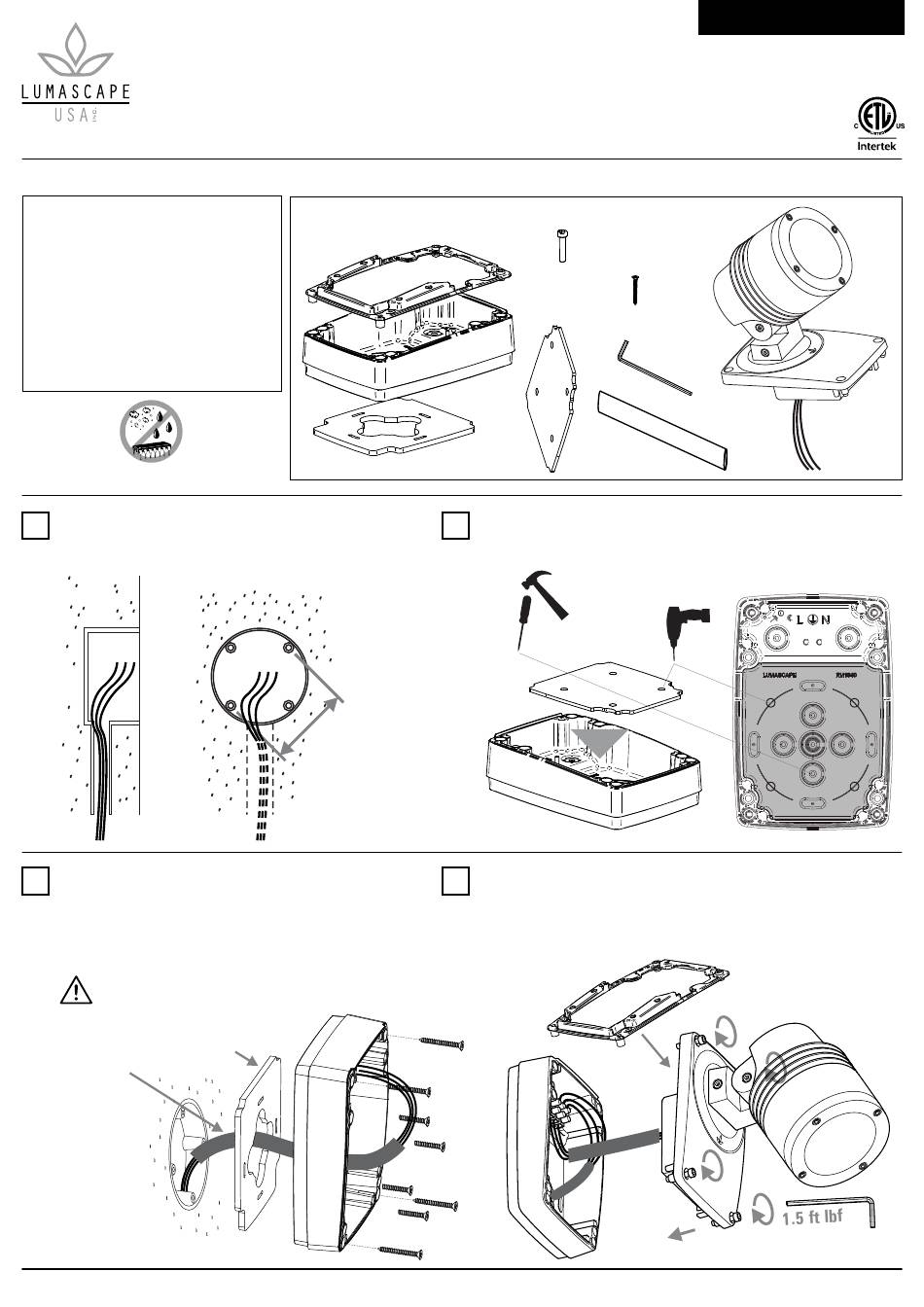

Lumascape LS421LED Installation Instructions

LUMASCAPE USA INC
1300 Industrial Rd, Unit #19
San Carlos, CA 94070, USA
T (650) 595-5862
W www.lumascape.com
Free Call : (866) 695-5862
LS421LED Centria Surface Mount
Warranty void if not installed per instructions and local electrical code
WARNING
Do not use power tools to
assemble or fasten.
For wall mount use only
Do not operate luminaire with missing or
damaged components
Install in accordance with National
Electric Code, ANSI/NFPA 70 or the Canadian
Electrical Code, Part I (CEC), CSA C22.1
KEEP ELECTRONICS FREE
FROM DIRT AND MOISTURE
Make sure all power is isolated before you begin!
1.
Run supply wires to the junction box on which the
luminaire is to be installed.
Connect and mount luminaire base
3.
Cover supply wires with insulation sleeve and connect luminaire to
supply using terminal block. Refer to wiring diagram in back for details.
Screw down luminaire base on junction box ensuring gasket seal is
correctly inserted between junction box and luminaire base. If required
use additional screws to mount luminaire base to mounting surface.
It is the installers responsibility to ensure proper seal
against wall to stop moisture entering the fixture.
fit gasket seal
fit insulation
sleeve over
supply wires
www.lumascape.com
COMPONENTS
gasket seal
2.
Fixing Holes
3.5" (88.9mm)
4" round/octagonal
junction box,
(by others).
4.
INSTALLATION INSTRUCTIONS
SPOTLIGHT AND FLOODLIGHT
MODEL: LS421LED Centria Surface Mount
INPUT VOLTAGE: 120-277 V, 50/60 Hz
seal screw
x4
screw
luminaire
base
Allen key
mounting
hole template
Drill J-box mounting holes
Insert mounting hole template into luminaire base and drill holes as required.
Remove template and punch or drill a hole for the supply wires.
Seal luminaire
Connect the luminaire head to the base by first connecting the driver wires to
the corresponding wires on the supply side using the terminal block. Refer to
wiring diagram in back for details. Secondly screw the luminaire head to the
base, ensuring the seal is correctly in place between the two components.
seal
FORM IN0085US
x4
insulation
sleeve
x2
IN0085US - 17 April 2014
luminaire
head
