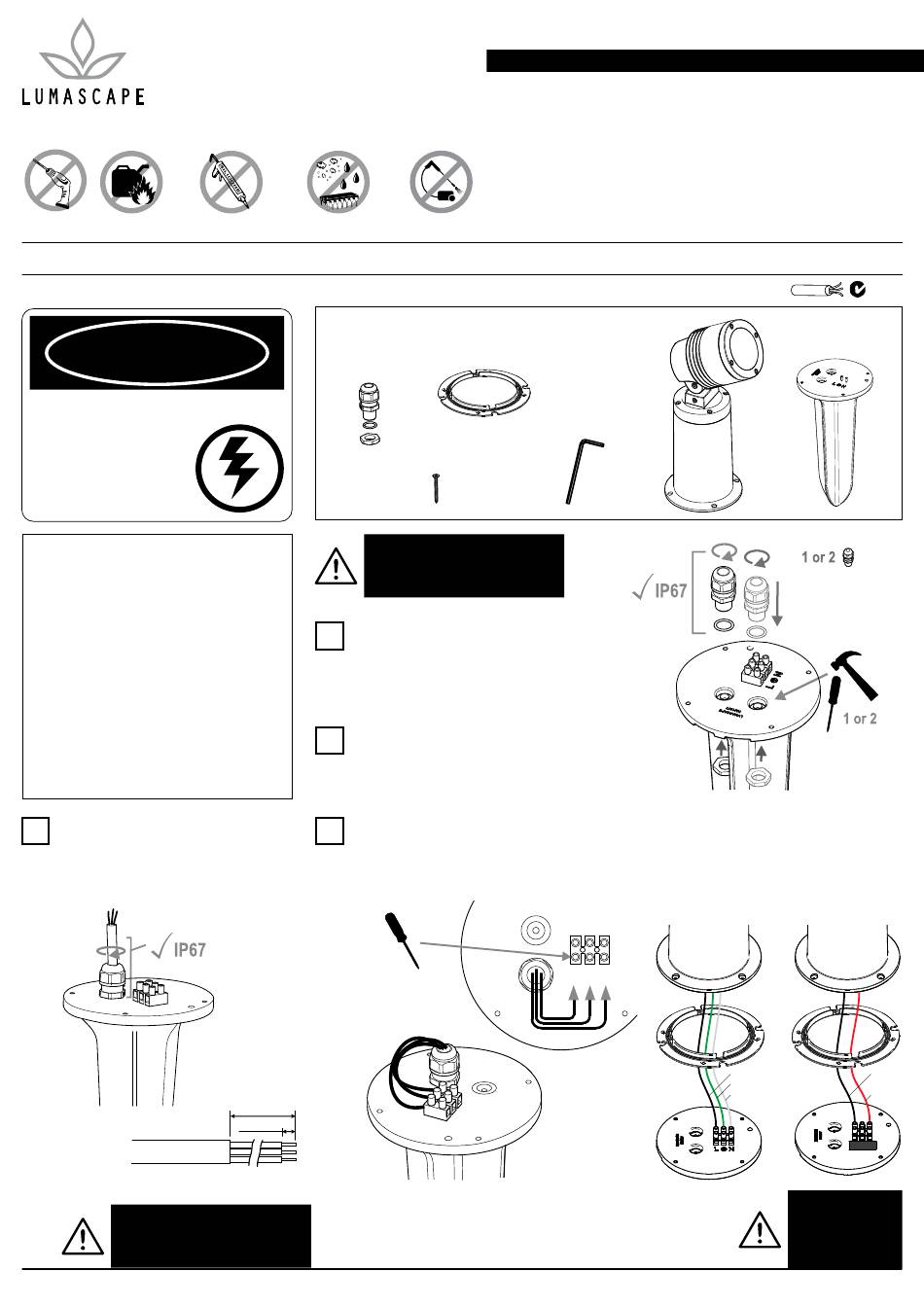

Lumascape LS422LED Installation Instructions

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
NO POWER KEEP AWAY FROM DO NOT USE SILICONE
TOOLS
FLAMMABLE MATERIAL ON OUTSIDE SURFACE
LS422LED Centria Concrete Anchor
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.

WARNINGS

Luminaires can become very hot. Use
discretion in placement
Luminaires optical assembly is factory sealed
and opening will void warranty
All connections must be kept dry; failure to
do so may result in product reliability issues
Do not allow soil, mulch or foreign material
to build up around the luminaire
Ensure installation complies with local
regulations

Water proof cable entry using gland:

3.
Feed the cable through the gland and tighten
as shown in illustration. Repeat this process
if a secod gland is installed. Ensure a correct
sized cable is used or seal will not be IP67.
2.5 mm² max per terminal
Use only a single, circular cable
with a diameter of 6-10 mm in
gland to ensure a watertight seal.
www.lumascape.com.au
KEEP ELECTRONICS FREE
FROM DIRT AND MOISTURE

COMPONENTS

gland
Before you begin always check
luminaire label for correct supply
details and lamp type if applicable.

Run cable(s) to luminaire:

1.
Run a power supply cable and if necesary
a CAT5 data cable (required for RGB
& dimming) to the luminaire, ensuring
compliance with local wiring rules.

Punch gland holes:

2.
Depending on your requirements punch
out one or two holes and install gland(s) as
shown in illustration on right.

Terminate electrical connection:

4.
Strip and connect the cable cores to the terminal block as shown in the illustration. Ensure correct
polarity is observed for the low voltage (24 V DC) luminaire.
For details on CAT5 data connection (required for RGB and dimming) refer to diagram in back.
120 mm
6 mm
cable strip length
Copyright ©2015 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
INSTALLATION INSTRUCTIONS
DO NOT HOSE OR
PREASSURE CLEAN
gasket seal
x1
x2
Allen key
screw
x4

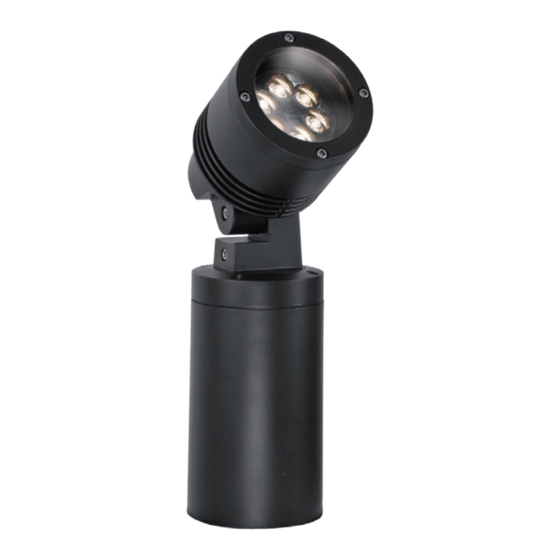

SPOTLIGHT & FLOODLIGHT
MODEL LS422LED
INSTALLATION TYPE Concrete Anchor
IP RATING IP66 / IP67
SUPPLY VOLTAGE 100-240 V AC, 50/60 Hz
24 V DC
INSTRUCTIONS COVER Single Colour
Single Colour Dimming
RGB (Integral Driver)
x1
Mains Voltage Wiring
Black
Green
White
N653
t 90 ºC
concrete
anchor
x1
Low Voltage Wiring
Black
Red
- +
Refer to wiring
diagram and dip
Switch Settings in
back for details.
IN0098 - 28 August 2015
