Lumascape LS471LED Installation Instructions

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
LS471LED: Centria Up / Down
Warranty voided if not installed as per installation instructions Warranty voided if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
Twist glands onto base.
1.
NOTE: Use only 1 x circular
cable to keep IP rating
Connect cabling to supply.
3.

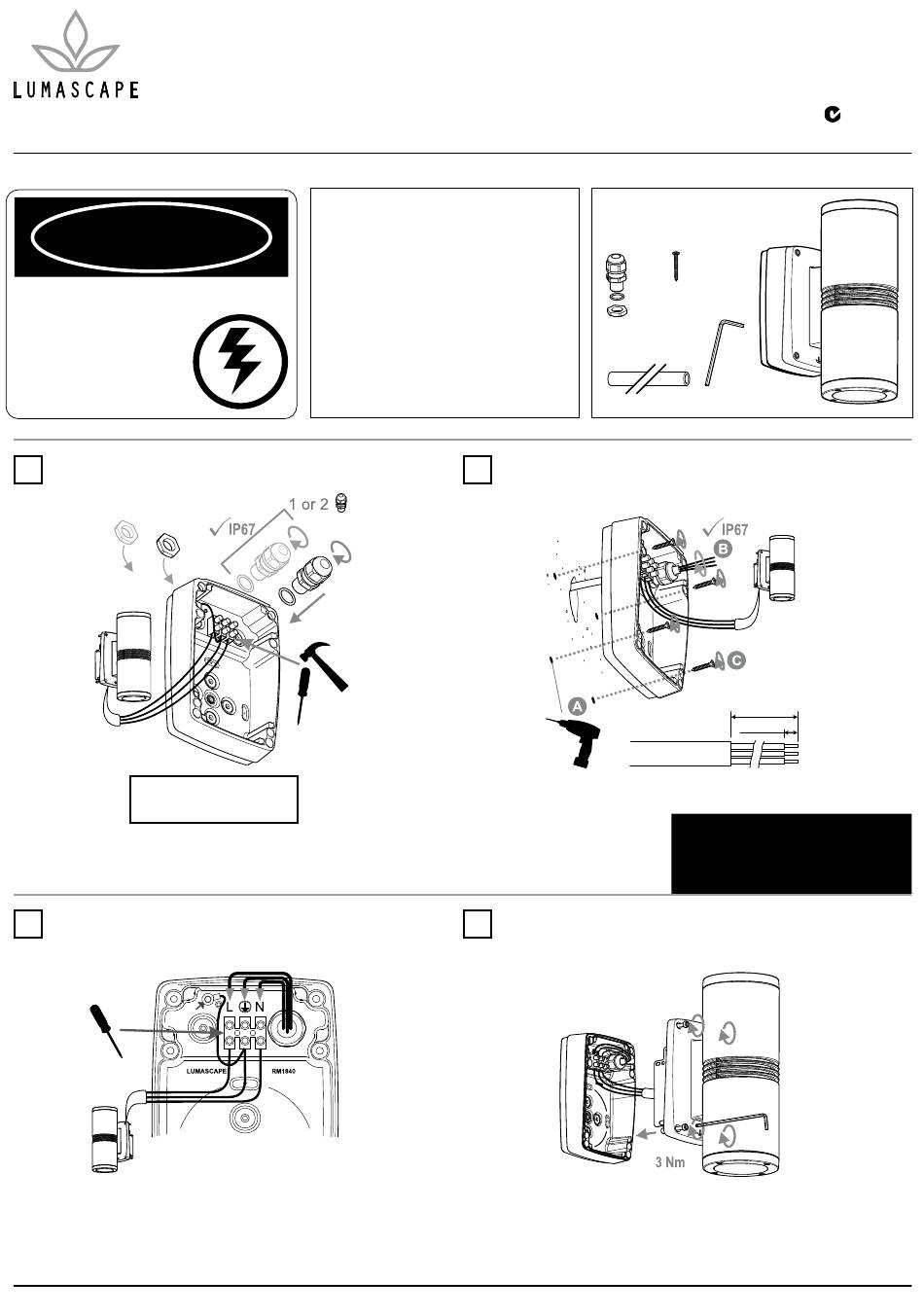

INSTALLATION INSTRUCTIONS
IP66 / IP 67
WARNING
Luminaire can become very hot. Use
discretion in placement.
Ensure that installation complies with local
authority standards.
All connections must be kept dry; failure
to do so may result in product reliability
issues.
Insert cabling into gland.
2.
Screw base onto surface, eg. wall.
4.
INPUT VOLTAGE: 110-240 V AC, 50 Hz
COMPONENTS
gland screw
x2
installation
sleeve
x1
4 mm² max per terminal
Screw onto base, DO NOT use power tools.
Ensure correct torque is applied.
SPOTLIGHT & FLOODLIGHT
MODEL: LS471LED
A.C.N. 0105 72 773
x4
Allen key
x1
120 mm
6 mm
cable strip length
Power supply must be isolated prior to
connection or disconnection of cables.
Failure to do so will result in damage
to the luminaire components.
IN0087 - 03 December 2013
