Lumascape Centria C4 Instructions

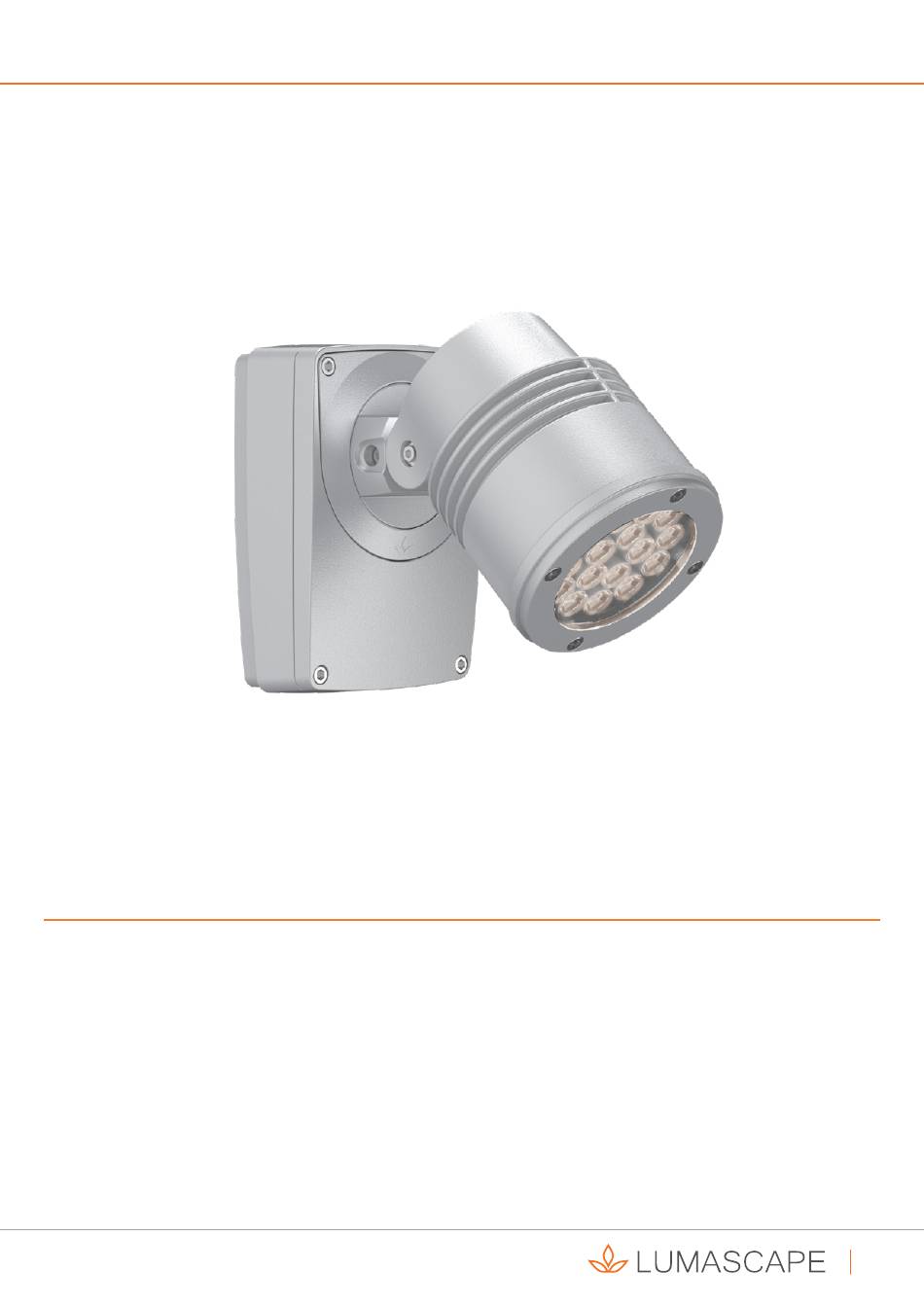

Surface-mounted spotlight

Download this manual

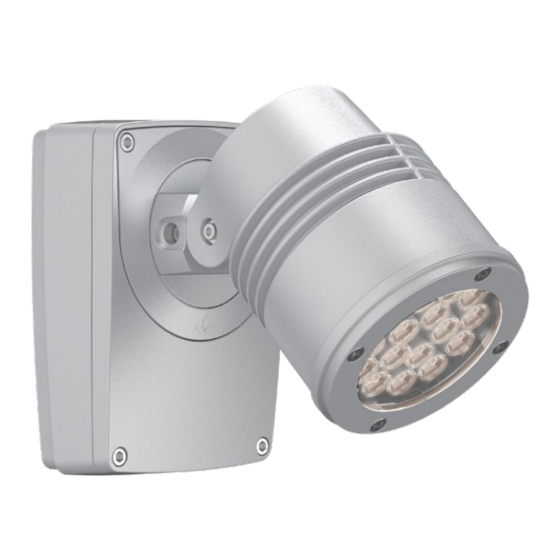

Centria C4

Surface-Mounted Spotlight

READ ALL SAFETY INSTRUCTIONS FIRST

› Follow instructions carefully, failure to do so will void warranty.

› Ensure installation complies with local law and applicable standards.

› Input voltage: Line Voltage 220 to 240 Vac, 50 Hz

Low Voltage 30 to 48 Vdc

› Only use Lumascape power supply, control equipment and leader

cables.

› Ensure mains input power is surge protected.

› Never make connections whilst the power is connected.

ARCHITECTURAL & FACADE LIGHTING

lumascape.com

› Do not make modifications or alter the product.

› Keep luminaire and connections clean and free of debris and

moisture.

› It is the installers responsibility that the installation is adequately

sealed to avoid moisture ingress.

Products and specifications are subject to change without notice.

LS1010

IN0182-230516

Need help?

Do you have a question about the Centria C4 and is the answer not in the manual?

Page 1 Low Voltage 30 to 48 Vdc › It is the installers responsibility that the installation is adequately sealed to avoid moisture ingress. › Only use Lumascape power supply, control equipment and leader cables. › Ensure mains input power is surge protected.
Page 2 Centria C4 Surface-Mounted Spotlight LS1010 Open Luminaire Loosen the four screws and remove In the base drill out gland holes as the lid and open the luminaire. required. Install Gland Feed supply cable through Drill the hole for the gland.
Page 3 Centria C4 Surface-Mounted Spotlight LS1010 Connect Supply Cable Mount Base to Wall Connect the supply cable to the Bolt luminaire to mounting surface making sure the terminal block. Refer to table gasket seal is inserted between the mounting surface below for conductor colour and and the wall.
Page 4 Centria C4 Surface-Mounted Spotlight LS1010 Aim Luminaire Using an Allen key adjust the Luminaire’s tilt and rotation. Loosen the screws to adjust and tighten to lock luminaire into place. Luminaire Tilt Luminaire Rotation Wiring Designation Low Voltage 30 to 48 Vdc Line Voltage 220 to 240 Vac –...
