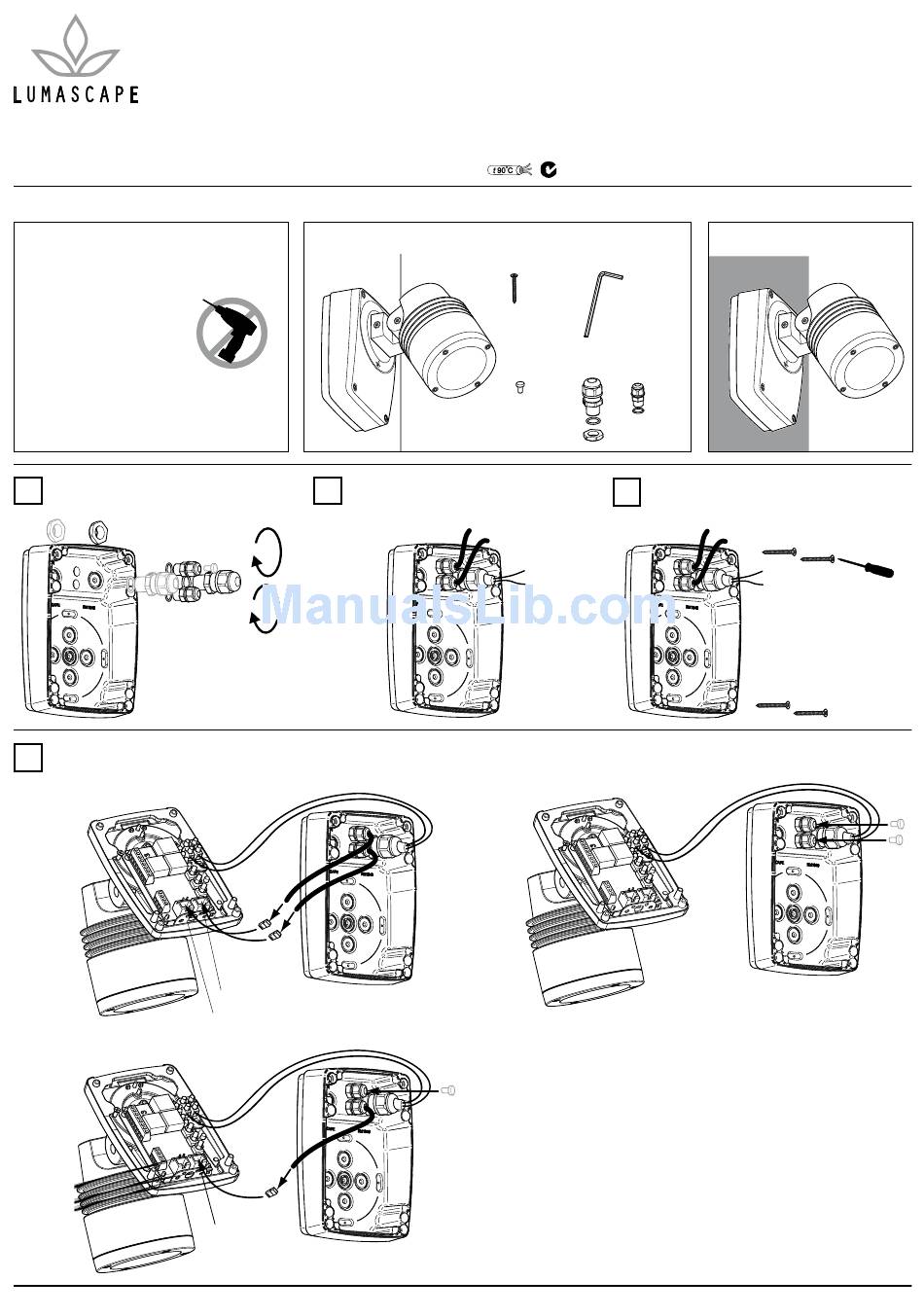

Lumascape LS421LED Installation Instructions

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
LS421LED-D24:
Warranty voided if not installed as per installation instructions
CAUTION
No power tools
Twist glands onto base. Remove power
1.
knockout/s as required
Connect power to control board - Note 24 V DC
4.
With DMX control - see wiring and settings overleaf
Centria LED 24 V DC

COMPONENTS

Insert cabling into glands
2.
_
+
2x RJ45
DMX out (see RJ45 DMX wiring)
DMX in (see RJ45 DMX wiring)
OR
_
+
RJ45
DMX in
NOTE: If only 1 DMX cable, use bung.
INSTALLATION INSTRUCTIONS
MODELS: LS421LED Surface Mount Integral Driver
A.C.N. 0105 72 773
t 90 C
Allen key
screw
x4
x1
bung gland
x2
x2
3.
Without DMX control
OR
SPOTLIGHT AND FLOODLIGHT
INPUT VOLTAGE: 24 V DC ripple free
INPUT CURRENT: 400 mA max
24 W LED (14 W LED narrow)
Suitable for wet locations
Suitable for mounting below 1.2m

FINISHED APPEARANCE

x2
Screw base onto surface, eg. wall
_
+
IN0052 - 28 May 2014
Ta 50°C
