LS431LED: Surface Mount Remote Gear
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
Punch gland holes:
1.
Depending on your requirements punch out one or two holes and
install gland(s) as shown in illustration below.
IP67
Wiring Diagram 1.0
Single Colour Low Voltage
Wire Colour
Designation
Yellow
+
Blue
-
RGB Remote Driver
Wire Colour
Designation
Red
Red +
Orange
Red -
Green
Green +
White
Green -
Blue
Blue +
Black
Blue -
www.lumascape.com.au
WARNiNGS
All connections must be kept dry;
failure to do so may result in product
reliability issues
This is an above ground luminaire and
no part of it should be below ground
level or covered in soil or mulch
CAuTiON: luminaires can become
very hot. use discretion in placement
1 or 2
A
Copyright ©2014 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773

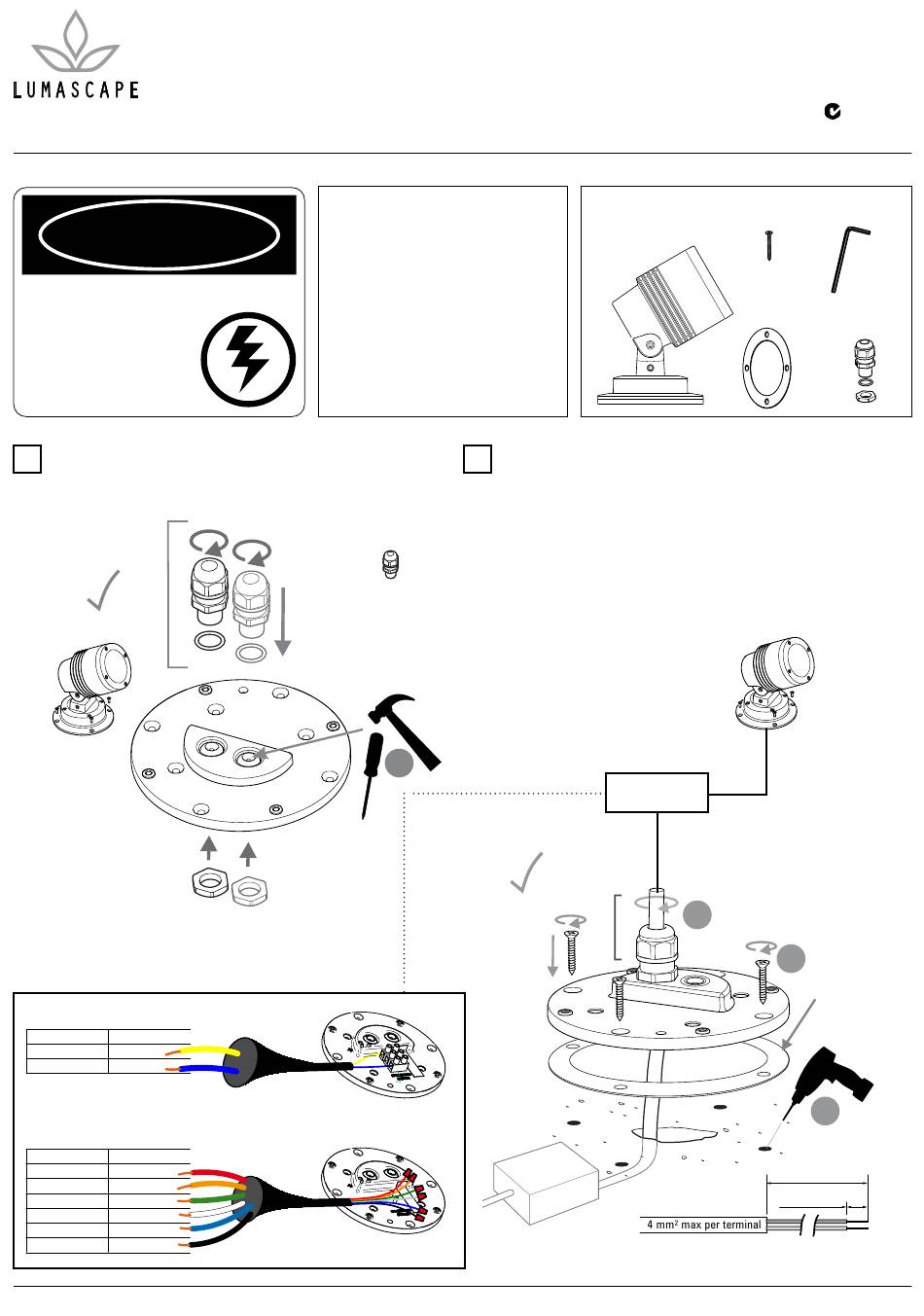

INSTALLATION INSTRUCTIONS
COMPONENTS
1x LS431LED
Secure base and tighten entry gland:
2.
Drill mounting holes for luminaire. Feed the cable through the gland and
tighten as shown in illustration. Repeat this process if a secod gland is
installed. Ensure a correct sized, round cable (Ø 5-10 mm) is used or seal
will not be IP67. Screw down luminaire base. Ensure gasket seal is inserted
between surface and luminaire base.
Wire up luminaire to supply cable. Please note that the single colour LED
luminaire will be supplied with a terminal block. For the RGB verions wire
nuts (not supplied) must be used to make the connection between the
luminaire to the supply cable.
Refer to wiring diagram 1.0 for
conductor colour and designation.
IP67
Refer to Wiring
Diagram(s) 1.0
IP67
LS6097 remote constant current LED driver
(or Lumascape approved equivalent)
LS6097 remote constant current LED driver
(or Lumascape approved equivalent)
SPOTLIGHT & FLOODLIGHT
MODEL: LS431LED
INPUT VOLTAGE: Remote Driver
A.C.N. 0105 72 773
IP66 / IP67
Allen key
screw
x4
x2
gasket seal
gland
x1
B
C
B
C
A A
fit gasket seal
120 mm
6 mm
A A
cable strip length
120 mm
6 mm
cable strip length
IN0094 - 28 May 2014
x2
