MikroTik netPower Lite 7R Manual

netPower Lite 7R

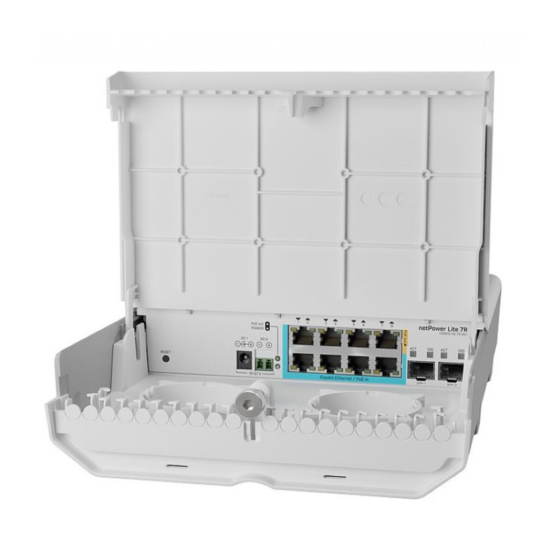

netPower Lite 7R (CSS610-1Gi-7R-2S+OUT)

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quickstart

Please follow these quick steps to set up your device:
Download the latest SwitchOS software version
Connect your computer to any of the ethernet ports;
Connect the device to the power source;
Set an IP address of your computer to the 192.168.88.3;
Open your Web browser, the default management IP address is
Upload file with the web browser to the Upgrade tab, the device will reboot after an upgrade;
Set up your password to secure the device.

Expansion slots and ports

1. Gigabit Ethernet, one port PoE-out.
2. Gigabit Ethernet, eight ports.
3. Gigabit Ethernet, seven ports, Reverse PoE (PoE in).
4. Two - 10G SFP+ ports.

Configuration

The device can be discovered using Winbox utility, by clicking on the Neighbors list. The default management address is 192.168.88.1.
SwOS is a simple software designed for the switch. We suggest starting here to get yourself accustomed to the possibilities:
For recovery purposes, it is possible to boot the device for reinstallation, see section
from https://mikrotik.com/download;
192.168.88.1 / 192.168.88.2
Buttons and Jumpers
admin
, with the username and no password;
https://mt.lv/help
.
.
