MikroTik CRS326-24S+2Q+RM Quick Start Manual

CRS326-24S+2Q+RM

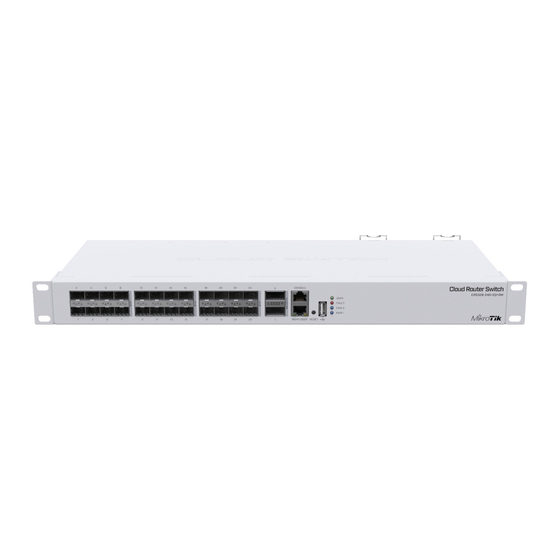

The CRS326 is a network switch with 24 10G SFP+ ports and two QSFP+ 40G ports. The device is ready to use as
a switch.
Quick start
Mount unit or place on the flat surface, please see
•
Choose your powering solution, please see
•
The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.
•
Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin
•
and no password, the device is set up as a switch.
We recommend clicking the "Check for updates" button and updating your system software to the latest
•
version to ensure the best performance and stability.
Set up your password to secure the device.
•

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack
mounts, or it can be placed on the desktop. Please attach rubber pegs on the bottom of the router if the desired
placement is on the flat surface or use a Phillips screwdriver to attach rackmount ears on both sides of the device if
designated use is for rackmount enclosure:
1. Attach rack ears to both sides of the device and tighten four screws to secure them in place, as
shown in the picture.
2. Place the device in rackmount enclosure and align with the holes so that the device fits
conveniently.
3. Tighten screws to secure it in place.
The IP rating scale for this device is IPX0. The device has no protection from water contamination, please ensure
the placement of the device in a dry and ventilated environment.
Mounting and configuration of this device should be done by a qualified person. We recommend using Cat5/6
cables for our devices.
See mikrotik.com/products for the latest version of this document.
Mounting paragraph for instructions.
Powering section for possibilities.
Document #49424 Modified on: 06.AUG.2019
