MikroTik CSS610-8G-2S+IN Quick Start Manual

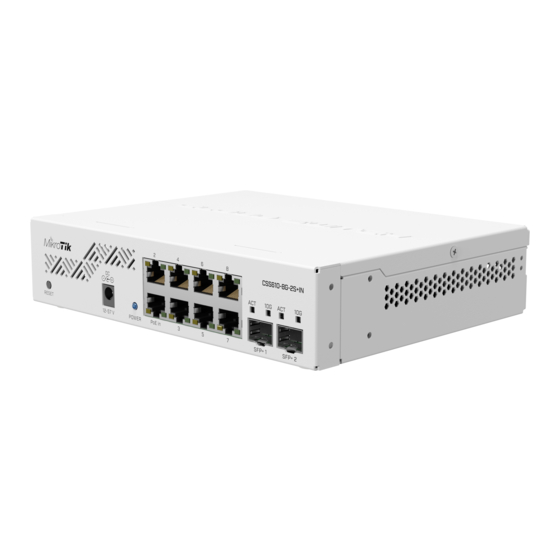

CSS610-8G-2S+IN
CSS610-8G-2S+IN

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Read the installation instructions before connecting the system to the power source.

Quick start

Install the device into the rackmount;
Connect with your computer to any of the Ethernet ports;
Connect the power source;
In your computer, set the IP address to static: 192.168.88.2/24
Open your web browser and enter the IP address of your Switch (192.168.88.1 by default) and the login screen will appear.
We recommend clicking the "Check for updates" button and updating your software to the latest version to ensure the best performance and
stability. Must have an active Internet connection.
Or download the latest SwitchOS software version
Set up your password to secure the device.

Powering

The device accepts power from the power jack or from the first Ethernet port (Passive PoE).
Direct-input power jack (5.5mm outside and 2mm inside, female, pin positive plug) accepts 12-57V DC.
The first Ethernet port accepts passive PoE input 12-57V DC.
Power consumption 5 W, with attachments 11 W.
Connecting to a PoE Adapter:
1. Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter.
2. Connect an Ethernet cable from your local network (LAN) to the PoE adapter.
3. Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Configuration

SwOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to the
possibilities: https://mt.lv/help.
For recovery purposes, it is possible to boot the device for reinstallation, see
First-time configuration https://wiki.mikrotik.com/wiki/SwOS/CSS610;
The device upgrade https://mt.lv/upgrade

Extension slots and ports

from https://mikrotik.com/download;
;
section Buttons and Jumpers.
