MikroTik CRS354-48G-4S+2Q+RM Manual

CRS354-48G-4S+2Q+RM
CRS354-48G-4S+2Q+RM

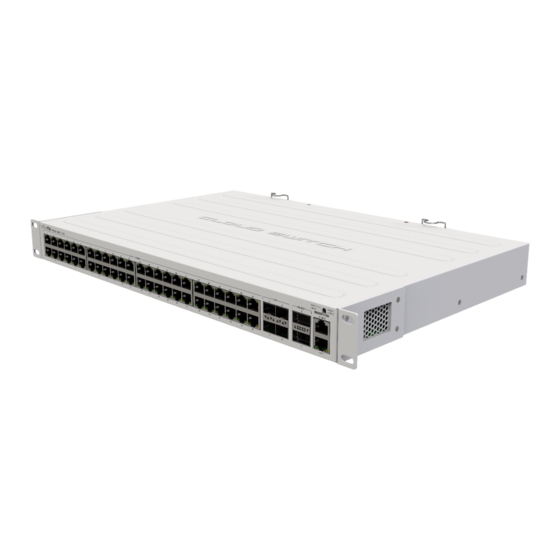

The CRS354 is a network switch with 48 Gigabit ports and four 10G SFP+ ports, and two 40G QSFP+ ports. The device is ready to use as a switch.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quick start

Mount the unit in a rackmount cabinet or place it on a flat surface (see "Mounting").
Connect two powering units to the AC source using power cords.
The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.
Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin and no password (or, for some models,
check user and wireless passwords on the sticker)
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability. The device needs to have an active internet connection.
To manually update the device, please go to
Choose packages for this device (MIPSBE) and download them to your PC.
Upload downloaded packages to the (Winbox) (Files) menu and reboot the device.
Updating your RouterOS software to the latest version will ensure the best performance, stability, and security updates.
Set up your password to secure the device.

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.
Use a Phillips screwdriver to attach rackmount ears on both sides of the device and for both sides of the back of the device if designated use is for
rackmount enclosure:
1. Attach the bracket to the front right side.
2. Attach the rear right bracket.
3. Attach the bracket to the left front side.
4. Attach the rear left bracket.
5. Attach long brackets to the rackmount and install the device with the holes so that the device fits conveniently.
. In case IP is not available, use Neighbors to connect through MAC address.
https://mikrotik.com/download
