Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

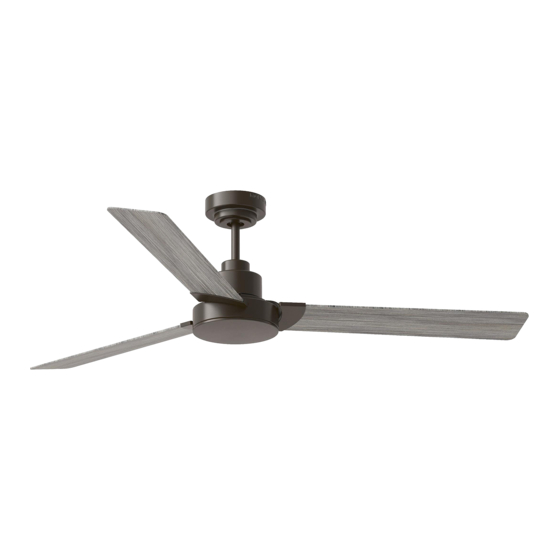

3JVR58XXXD Series Fan
cETL Model NO. : 3JVR58XXD
RETAILER NAME:
RETAILER ADDRESS:
7.36 kg
16.2 lbs
Total fan weight with light
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company 3JVR58 D Series
Summary of Contents for Monte Carlo Fan Company 3JVR58 D Series
- Page 1 Owner’s Guide and Installation Manual 3JVR58XXXD Series Fan cETL Model NO. : 3JVR58XXD Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 7.36 kg 16.2 lbs Total fan weight with light...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. - Page 3 Before you begin installing the fan, Switch Before installing this fan make sure the Use metal outlet box suitable for fan power off at Service panel and lock outlet box is properly installed to the support and use only the screws provided service disconnecting means to prevent house structure.
-
Page 4: Safety Cable Installation
Canopy Downrod Downrod Cross pin Canopy bottom cap housing Keeper pin Yoke cover Remove the set screws from yoke. Keep Partially loosen downrod set screws from Place downrod over canopy, canopy the screws. yoke at top of motor assembly. bottom cap and yoke cover. Thread lead Place the top housing over lead wires, Remove preassembled cross pin and wires and safety cable from motor. - Page 5 Wall switch Black Brown Grey Power source Orange White Ground/Green Receiver White Black Blue White Make wiring connections using wire connectors provided as indicated above. Brown wire from fan to Brown wire from receiver marked Motor U. Gray wire from fan to Gray wire from receiver marked Motor V. Orange wire from fan to Orange wire from receiver marked Motor W.
- Page 6 Light shade LED light fixture Loosen 2 and remove 1 preassembled Connect white wire from fan to white wire Attach light shade by locating dimples in screw from light pan. Save screw for later from LED light kit and then connect blue light pan with grooves on the light shade use.
- Page 7 Remote Controller Operation Remove the battery cover from the remote control transmitter and install batteries. Replace the cover. This remote uses 2 1.5V/AAA batteries. Note: If not using for long periods of time, remove the batteries to prevent damage to DIM (D) remote controller, and store the remote controller away from excess heat or humidity.
- Page 8 Install Transmitter wall mount cradle with 2 screws provided. Useful tips: The remote transmitter can be removed by pressing it upward from the lower half. The remote transmitter can be held on magnetic metal materials by a magnet built in the transmitter. The receiver provides the following protective functions: Lock protection: The DC motor has a build-in safety feature Wall mount cradle...
-
Page 9: Troubleshooting
Troubleshooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning and lock the service panel to prevent the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the service panel. - Page 10 Jun.2022...
