4 Android™ Block Diagram
4.1 Overview

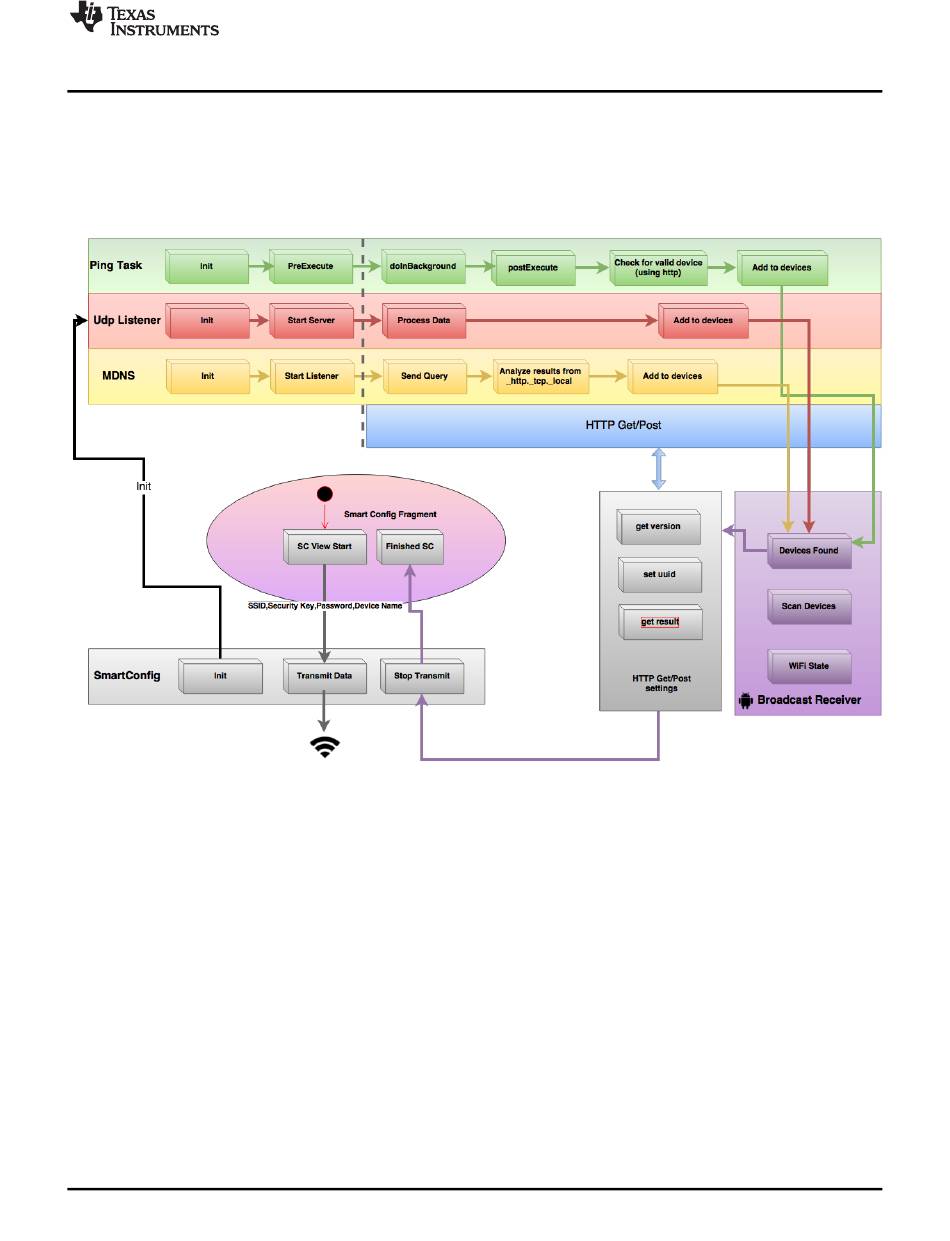

Figure 5 illustrates the Android™ block diagram.
4.2 SmartConfig™ Initialization
The SmartConfig™ library contains a set of APIs to activate SmartConfig™. These APIs cover the
initialization of SmartConfig™ objects, and set configurations such as SSID, password, and start/stop
transmission.
The transmission works repeatedly until it is stopped. The repeated data transmission improves the
probability for success on a limited Wi-Fi
Activate SmartConfig™ when the phone, the AP, and the target device are all on the same local network,
with no hidden devices. For example, if the phone is not within the range of the device, but both the
device and the phone are in the range of the AP. The device and the phone are hidden.
The SmartConfig™ command is activated by the following class:
Android™:
class SmartConfig
