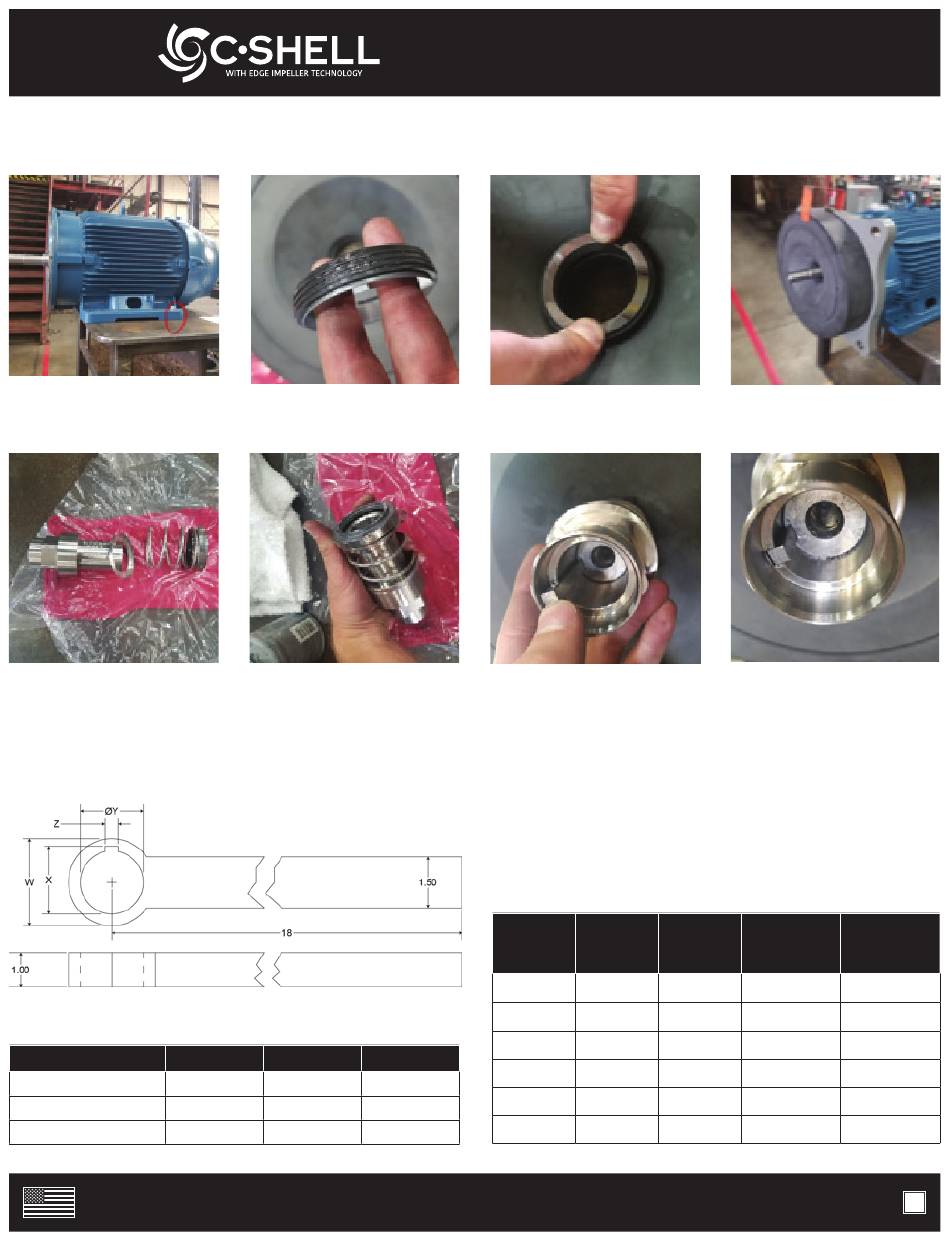

MDM C-Shell 4X3-10 Installation And Service Manual page 7

FIGURE 1
FIGURE 5
TABLE B - BOLT TORQUE VALUES (ALL VALUES IN FT-LBS)
PARTS 3X2
Motor Bolts 50
Impeller Bolt 40
Case Bolts 32
PROUDLY MADE
IN THE USA
4X3 GENERAL ASSEMBLY
®
C•SHELL 4X3 FIGURE AND TABLE SUPPLEMENT
®
FIGURE 2
FIGURE 6
TABLE A - SHAFT WRENCH
4X3 6X5
50 50
40 40
65 65
Generated from efficiency. Adapted for flow. Built for longevity.
FIGURE 3
FIGURE 7
TABLE C - SHAFT WRENCH DIMENSION
NOMINAL
SHAFT W
DIAMETER
0.875 1.375 0.958
1.125 1.625 1.253
1.625 2.125 1.806
1.750 2.5 1.940
2.375 3.25 2.690
2.875 3.75 3.205
FIGURE 4
FIGURE 8
X Y
(+.06) (+.015)
0.878 - 0.880 0.188 - 0.192
1.128 - 1.130 0.125 - 0.129
1.628 - 1.630 0.375 - 0.379
1.753 - 1.755 0.375 - 0.379
2.378 - 2.380 0.625 - 0.629
2.878 - 2.880 0.750 - 0.754
© MDM INCORPORATED
WWW.MDMINC.COM
Z
P.9
