MDM C-Shell 4X3-10 Installation And Service Manual page 5

IMPORTANT: Make certain all
inlet and discharge piping are
independently supported to
a post base, strut, and pipe
clamp system.
NO. DESCRIPTION
1 ANCHOR INSTALLATION TOOL
2 MOTOR FOOT ANCHOR
3 THREADED ROD
4 RISER BLOCK
5 MOTOR SHIM* (AS NEEDED)
6 FLAT WASHER
7 LOCK WASHER
8 HEX NUT
PROUDLY MADE
IN THE USA
4X3 GENERAL ASSEMBLY
®

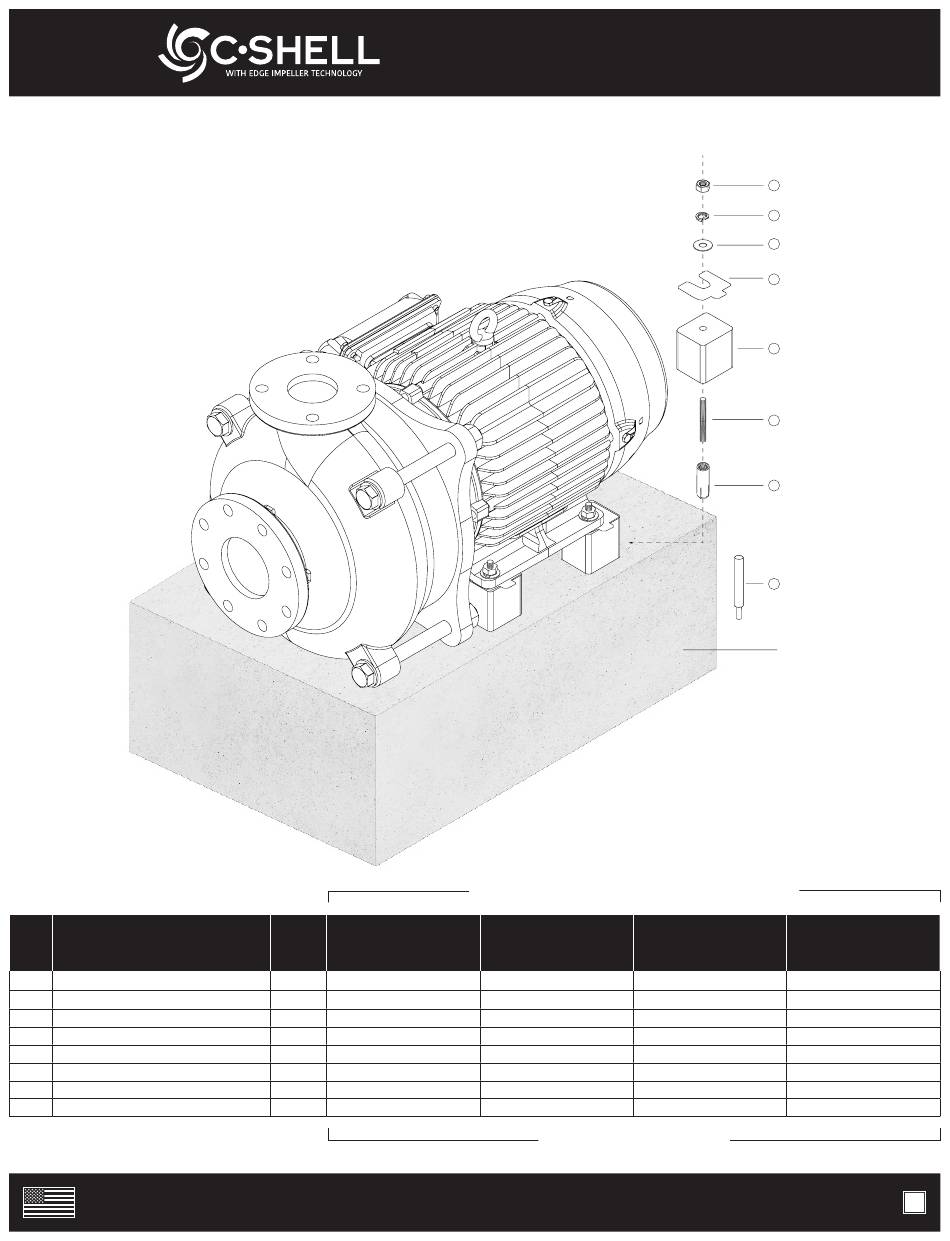

C•SHELL 4x3 MOTOR ANCHOR INSTALLATION
®
B GROUP MOTORS
213/5JM
3/8-16
QTY.
1 97077A120
4 97095A121
4 90575A292
4 INCLUDED
4 94420A160
4 90107A127
4 92147A031
4 94819A049
Generated from efficiency. Adapted for flow. Built for longevity.
Visit McMaster-Carr Supply Company at www.mcmaster.com to find parts
listed in the table below. Enter the McMaster part number in their search
engine to be directed to part page.
Consult Motor Name Plate for Frame Size Specification
C GROUP MOTORS D GROUP MOTORS
254/6JM 284/6JM
1/2-13 1/2-13
97077A130 97077A130
97095A131 97095A131
90575A736 90575A732
INCLUDED INCLUDED
94420A160 94420A160
90107A033 90107A033
92147A033 92147A033
94819A055 94819A055
McMaster-Carr Part Numbers
8 HEX NUT
7 LOCK WASHER
6 FLAT WASHER
5 MOTOR SHIM*
4 RISER BLOCK
3 THREADED ROD
2 MOTOR FOOT ANCHOR
1 ANCHOR INSTALLATION TOOL
CONCRETE PAD
D GROUP MOTORS
324/6JM
5/8-11
97077A140
97095A141
90575A810
INCLUDED
94420A160
90107A035
92147A035
94819A058
