MDM C-Shell 4X3-10 Installation And Service Manual page 6

NO. PART NAME
1A CASE NUTS
1B CASE WASHERS
1C CASE BOLTS
2 BRACKET PLATE
3 HEX OR ALLEN HEAD FASTENERS*
4 SEAL HOUSING
5 CASE O-RING
6 CASE GASKET*
7A STATIONARY SEAL FACE
7B ROTATING SEAL FACE
7C SPRING
7D SPRING RETAINER
8 SHAFT SLEEVE
9 SQUARE KEY*
10 SPACER SHIM*
11 IMPELLER*
12 PENTAGON HUB SPACER
13 PENTAGON HUB O-RING
14 PENTAGON HUB
15 IMPELLER BOLT FLAT WASHER
16 IMPELLER BOLT LOCK WASHER
17 IMPELLER BOLT O-RING
18 IMPELLER BOLT
19 CASE
20 RISER BLOCK*
1A 1B 2
PROUDLY MADE
IN THE USA

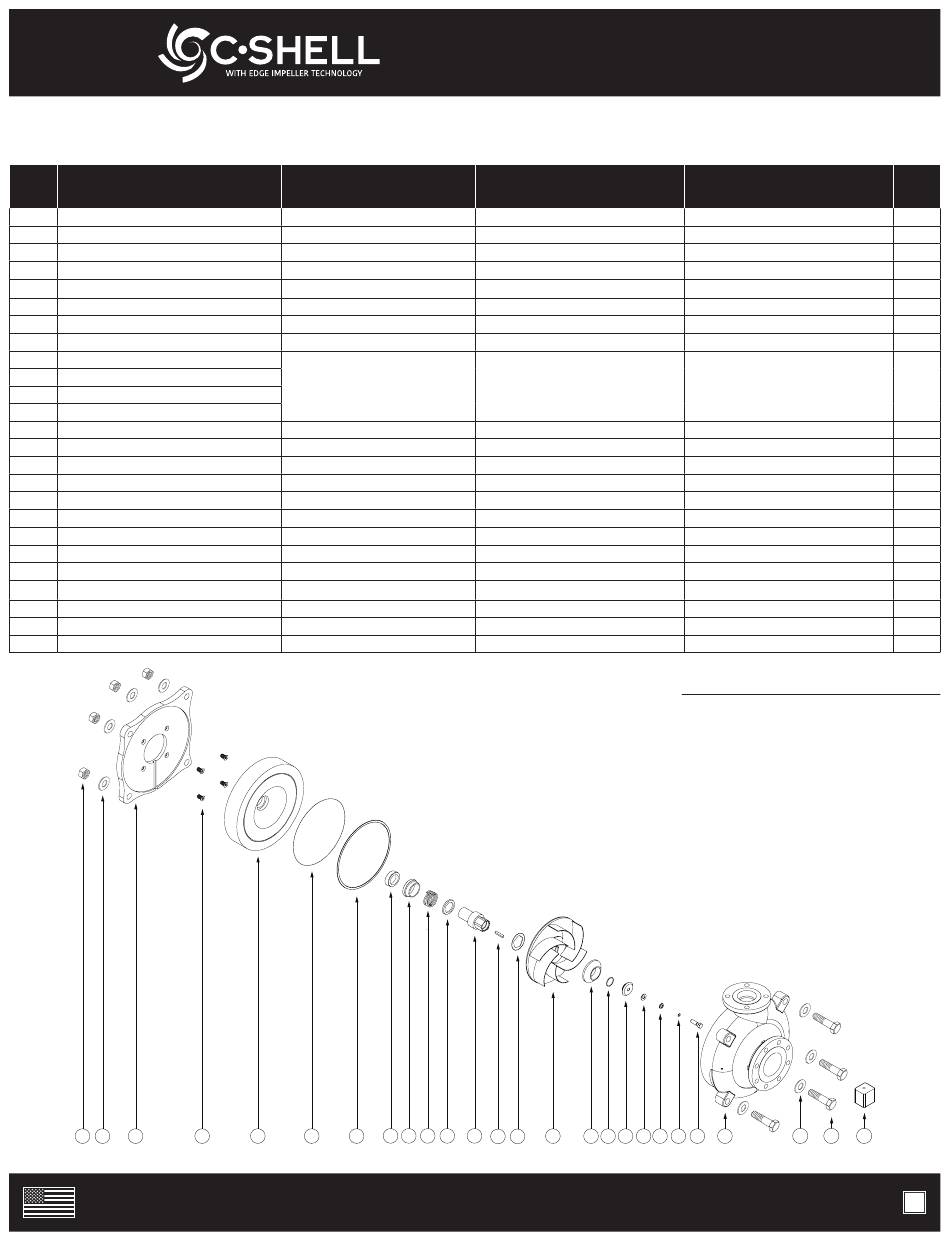

C•SHELL 4X3 EXPLODED VIEW AND PARTS LIST
®
MOTOR B (213-215JM)
PART NUMBER
HCS14144
FW14
HHN14
MD1401 MS
HCS08012
MD1202 W35
ARP277
A0160FA
24170545 (CARBON GRAPHITE/
CERAMIC)
24170510 (SIC VS. SIC)
MD0905 316L
CONSULT FACTORY
MD2300 NYL
CONSULT FACTORY
MD0701 316L
ARP126
MD0600 316L
FW06
LW06
ARP010
MD0300 316S
MD0101 W35
CONSULT FACTORY
3 4 5 6
Generated from efficiency. Adapted for flow. Built for longevity.
4X3 GENERAL ASSEMBLY
®
MOTOR C (254-256JM)
PART NUMBER
HCS14144
FW14
HHN14
MD1401 MS
HCS08012
MD1202 W35
ARP277
A0160FA
24170545 (CARBON GRAPHITE/
CERAMIC)
24170510 (SIC VS. SIC)
MD0903 316L
CONSULT FACTORY
MD2300 NYL
CONSULT FACTORY
MD0702 316L
ARP126
MD0601 316L
FW08
LW08
ARP012
MD0301 316S
MD0101 W35
CONSULT FACTORY
*9. SQUARE KEY (COMES WITH MOTOR) - CONSULT FACTORY FOR PRICING AND REPLACEMENT
*11. IMPELLER PART NUMBERS DIFFER BASED ON PERFORMANCE REQUIREMENTS
*20. MOUNTING BLOCK - CONSULT FACTORY FOR PRICING AND REPLACEMENT PARTS
7A 7B 7C 7D 8 9 10 11
MOTOR D (284-324JM)
PART NUMBER
HCS14144
FW14
HHN14
MD1402 MS
HCS10016
MD1202 W35
ARP277
A0160FA
24170545 (CARBON GRAPHITE/
CERAMIC)
24170510 (SIC VS. SIC)
MD0903 316L
CONSULT FACTORY
MD2300 NYL
CONSULT FACTORY
MD0702 316L
ARP126
MD0601 316L
FW08
LW08
ARP012
MD0301 316S
MD0101 W35
CONSULT FACTORY
CONSULT MANUFACTURER FOR PARTS PRICING
*3. SCREW SIZE AND TYPE IS BASED ON MOTOR SIZE
*6. CASE GASKET (USE AS NEEDED)
7A-7D. SEAL ASSEMBLY SOLD AS A SET
*10. SPACER SHIM (USE AS NEEDED)
*NUMBERS IN CIRCLES BELOW CORRESPOND
WITH STEPS IN ASSEMBLY INSTRUCTIONS.
12 13 14 15 16 17 18 19
QTY.
4
8
4
1
4
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
4
1B 1C 20
