MDM ValuFlo 750 Installation And Service Manual

Download this manual

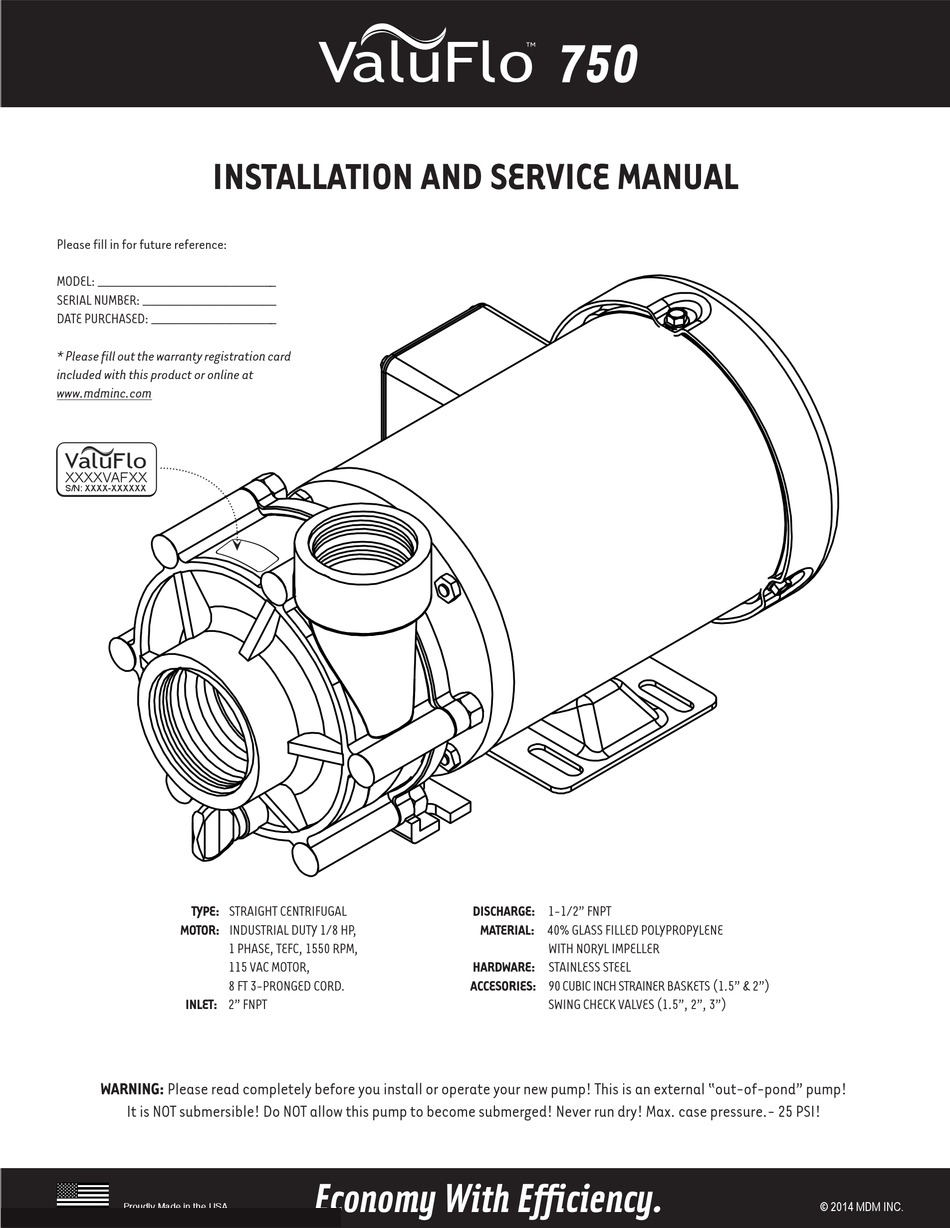

INSTALLATION AND SERVICE MANUAL

Please fill in for future reference:

MODEL: ___________________________

SERIAL NUMBER: ____________________

DATE PURCHASED: ___________________

* Please fill out the warranty registration card

included with this product or online at

www.mdminc.com

ValuFlo

XXXXVAFXX

S/N: XXXX-XXXXXX

TYPE: STRAIGHT CENTRIFUGAL

MOTOR: INDUSTRIAL DUTY 1/8 HP,

1 PHASE, TEFC, 1550 RPM,

115 VAC MOTOR,

8 FT 3-PRONGED CORD.

INLET: 2" FNPT

WARNING: Please read completely before you install or operate your new pump! This is an external "out-of-pond" pump!

It is NOT submersible! Do NOT allow this pump to become submerged! Never run dry! Max. case pressure.- 25 PSI!

Proudly Made in the USA

ValuFlo

DISCHARGE: 1-1/2" FNPT

MATERIAL: 40% GLASS FILLED POLYPROPYLENE

HARDWARE: STAINLESS STEEL

ACCESORIES: 90 CUBIC INCH STRAINER BASKETS (1.5" & 2")

Economy With Efficiency.

750

™

WITH NORYL IMPELLER

SWING CHECK VALVES (1.5", 2", 3")

Need help?

Do you have a question about the ValuFlo 750 and is the answer not in the manual?

Page 1 WARNING: Please read completely before you install or operate your new pump! This is an external “out-of-pond” pump! It is NOT submersible! Do NOT allow this pump to become submerged! Never run dry! Max. case pressure.- 25 PSI! Economy With Efficiency. Economy With Efficiency. © 2014 MDM INC. © 2014 MDM INC. Proudly Made in the USA...
Page 2 Never restrict the inlet! Keep both inlet and discharge lines as free of elbows and valves as possible. Always use pipe of adequate diameter. This will reduce friction losses and maximize output. Never use an inlet line of smaller diameter than the discharge line. Minimize the suction lift. For additional plumbing tips, review MDM’s website: www.mdminc.com for pond plumbing and pump installation hints. BALL VALVE...
Page 3 Remove the carbon-graphite seal assembly from the bracket by pressing it out from the motor-side of the bracket. Do not pry it out with a screwdriver from the pump cavity-side of the bracket (if you are replacing the seal)! Economy With Efficiency. © 2014 MDM INC. Proudly Made in the USA...
Page 4 General Electric Company. Teflon® is a registered trademark of DuPont Toll Free Phone (800) 447-8342 • Fax (866) 425-1346 Company. ValuFlo is a registered trademark of MDM Incorporated. www.mdminc.com • info@mdminc.com Valuflo 750 Installation Manual.indd Adobe Indesign CC 06-06-14 Economy With Efficiency.
