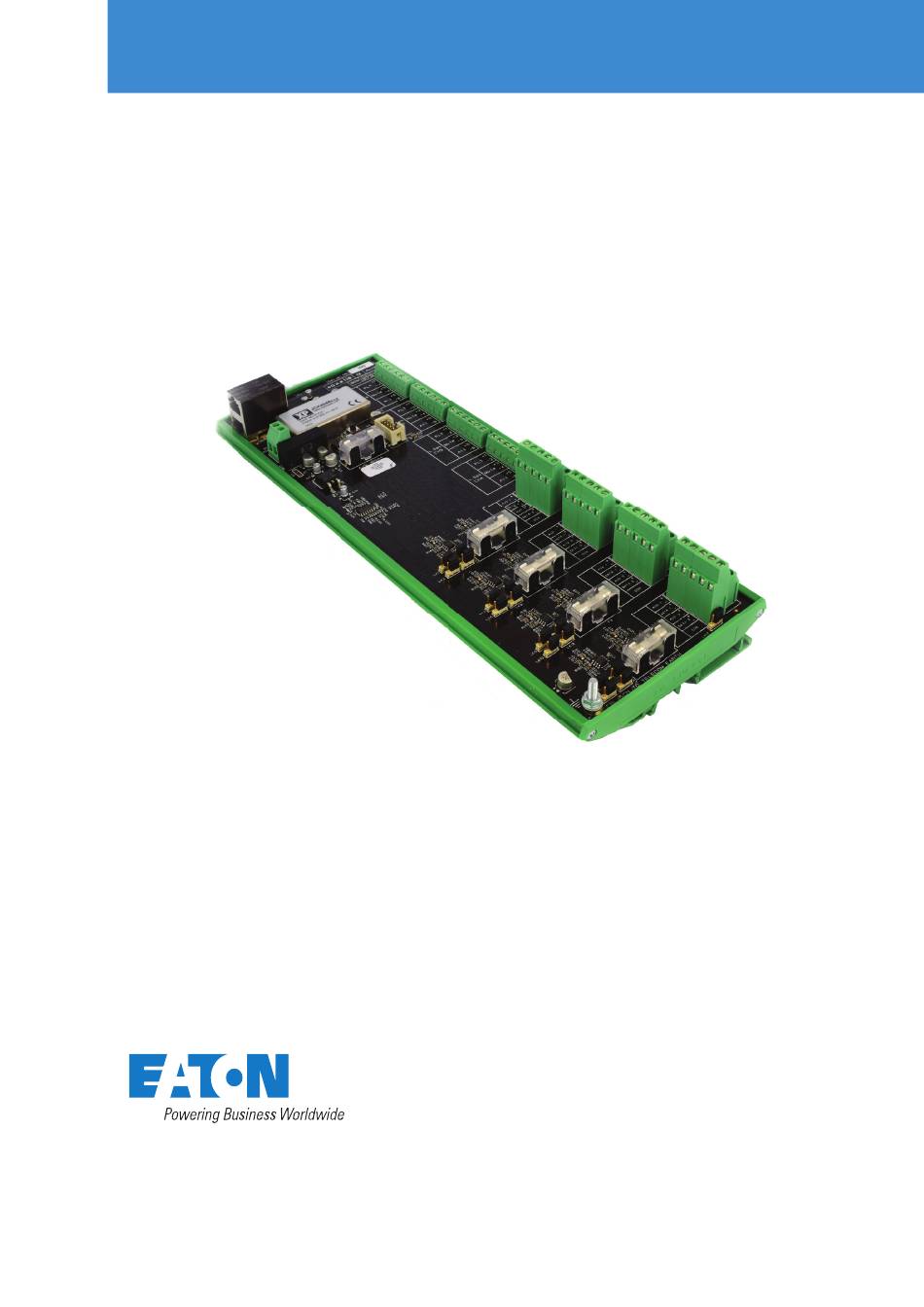

- Page 1 Sonix Hmi-Tu Technical Manual SONIX Hmi-Tu Access Panel Interface Unit...
- Page 2 MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not...
- Page 3 A 2Mx bus, used to communicate with SAS application Sync A 2Mx bus used to communicate with the second 2Mx unit when PA/GA system is confi gured as A&B, AB+ or N+1 system SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com...
-
Page 4: Table Of Contents
A.4 Certification ................16 SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... - Page 5 TABLE 12. HMI BUS STATUS INDICATION ........... 14 SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com...
-
Page 6: Introduction
This item is sold as a complete module. It is please report this to Eaton to enable us to rectify and recommended the following fuses are kept as spares: investigate the fault in a speedy manner. -

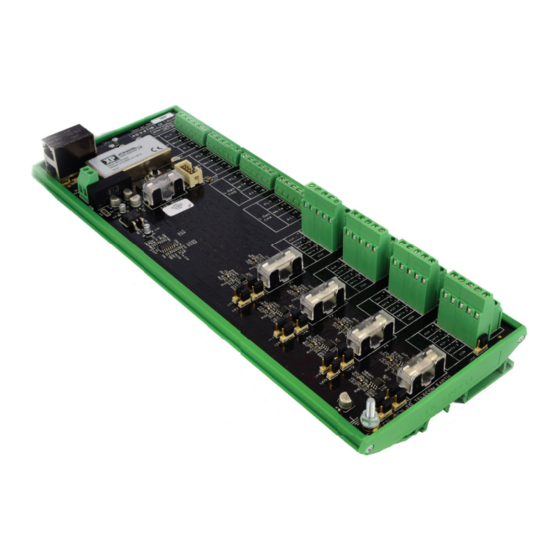

Page 7: About The Product
Supply of phantom power to each access panel • Link selectable for Hmi-26 or Hmi-5 operation • Up to a maximum of 24 access panels • Up to 3 units can be daisy-chained • SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 8: Overview Of Unit
305 x 118 x 60 mm 2.1.1.2 Power and utility Supply voltage: 48 V dc Access panel voltage: 24 V dc phantom power Current: 100 mA max consumption Figure 1 – Hmi-Tu unit layout SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 9: Hmi-Filter
2.2.1 Hmi-Tu power connections & indicator 2.2.3 Access Panel Data and Audio connections Power to the Sonix Hmi-Tu should be provided via a Data and audio connections from the unit to the access 2-core 48 V dc input on the side of the unit. This input... -
Page 10: Figure 4. Hmi-26 Data & Audio Connections
LK4, LK6, LK7, LK8 All in position ‘b’ LK9, LK10, LK11, LK12 All in position ‘b’ LK13, LK14, LK15, LK16 All in position ‘b’ Table 7 – Hmi-26 operation link settings SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 11: Local Mute / Local Attenuate Unit
The unit provides an M4 earth stud, connected usually to telecoms earth. This connection is used as a functional earth by the unit. Cable sizing is as follows: Recommended 4.0 mm Minimum 2.5 mm SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 12: Unit Operation
HMi Bus HMi Bus I/O Bus COMPLIANT Sonix 2Mx Unit Sonix Hmi Unit L.Spk Mute L.Spk Mute Figure 11 – Hmi-Filter connection details SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com 2Mx Top Hmi Top Hmi Bottom 2Mx Bottom... -
Page 13: Connecting More Than 2 Hmi-Tu
Sonix 2Mx Unit Sonix Hmi Unit #1 L.Spk Mute L.Spk Mute Sonix Hmi Unit #2 L.Spk Mute L.Spk Mute Sonix Hmi Unit #3 L.Spk Mute L.Spk Mute Figure 13 – Cascaded units SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 14: System Status Reporting
Hmi bus in partial fault, showing reversed data flow i.e. Flashing red bottom-to-top Solid red Hmi bus in fault, showing no data flow Table 12 – Hmi bus status indication SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 15: Configuration
J2 pin 3 to pin 5: approx. 5.5 – 6.5 V Replace unit Replace unit J2 pin 4 to pin 5: approx. 3.0 – 4.0 V J2 pin 4 to pin 5: approx. 3.0 – 4.0 V SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com... -
Page 16: Appendix A - Hmi-Br - Safety Interface Board
A.1. Introduction The Hmi-Br contains no user replaceable parts and shall not be repaired by the user. Contact Eaton MEDC Ltd for The Hmi-Br is a safety interface intended to be installed replacement if required. in the non-hazardous area to provide an intrinsically safe, Zener clamped, resistively limited output to the Eaton A.4. - Page 17 Sonix Hmi-Tu Technical Manual THIS PAGE IS INTENTIONALLY LEFT BLANK SONIX HMI-TU TECHNICAL MANUAL TM377 / A June 2022 www.eaton.com...
- Page 18 All specifications, dimensions, weights and tolerances are nominal (typical) T: +44 (0) 1623 444 400 Publication www.crouse-hinds.com/hac No.TM377 / A and Eaton reserve the right to vary all data without prior notice. No liability is accepted for any consequence of use. MEDCSales@Eaton.com June 2022...
