Summary of Contents for Breezesta PT-0603

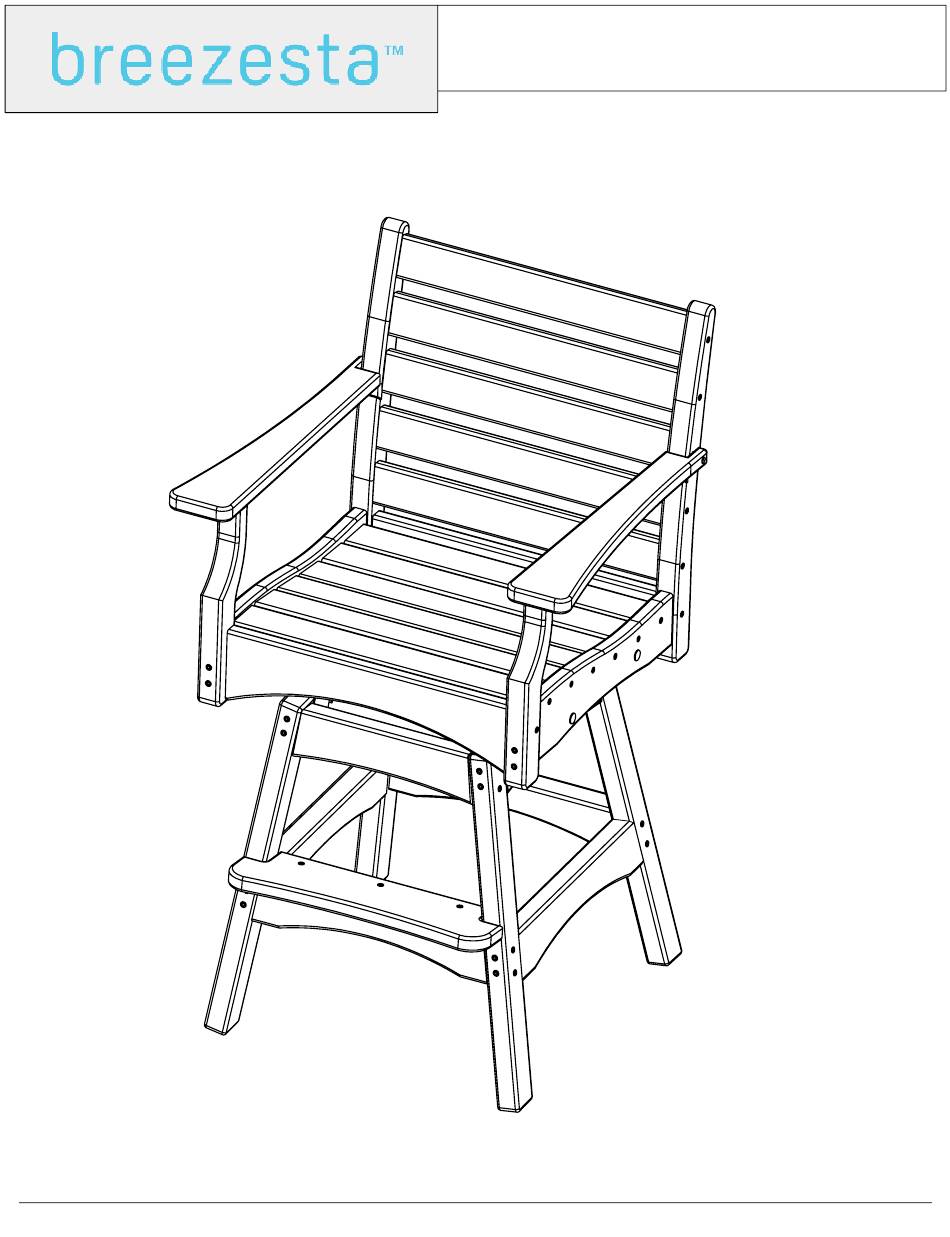

- Page 1 PIEDMONT BAR SWIVEL CHAIR PT-0603 REV06-2/2020 PT-0603 Assembly...
- Page 2 1/4"-10 X 3" LAG SCREW PAINTED H-0000-S103 1/4"-10 X 3" LAG SCREW UNPAINTED H-0000-S103 1" HEX BOLT 5/16" DIA H-0000-HB1 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD PIEDMONT SWIVEL ASSEMBLY-GEN 3 H-0000-SA3 Suggested Tools: Drill, Plastic Mallet, 1/2" Socket Wrench PT-0603 Assembly...
- Page 3 While upside down press, or hammer, Parts B into the grooves & attach them using Hardware d Connect Hardware i using Hardware e as shown Attach Seat Assembly (Part F) to the swivel brackets using the hardware shown. PT-0603 Assembly...
- Page 4 Part K using Hardware b Connect the assembly from Step 8 to Part F using the hardware shown Note: Make sure Step 9 is connected on the front of Side View Part F as shown Attach Part L using the hardware shown PT-0603 Assembly...
